PROPELLER SHAFT MODELS SERVICE MANUAL NUMBER 22
Page 8B-6 90-860074--1 FEBRUARY 2002
4. Ensure that all propeller blades are the same pitch and that propeller is properly seated
on shaft. Rotate propeller at least one complete turn and check at three different points
on blades. Repair or replace if necessary.

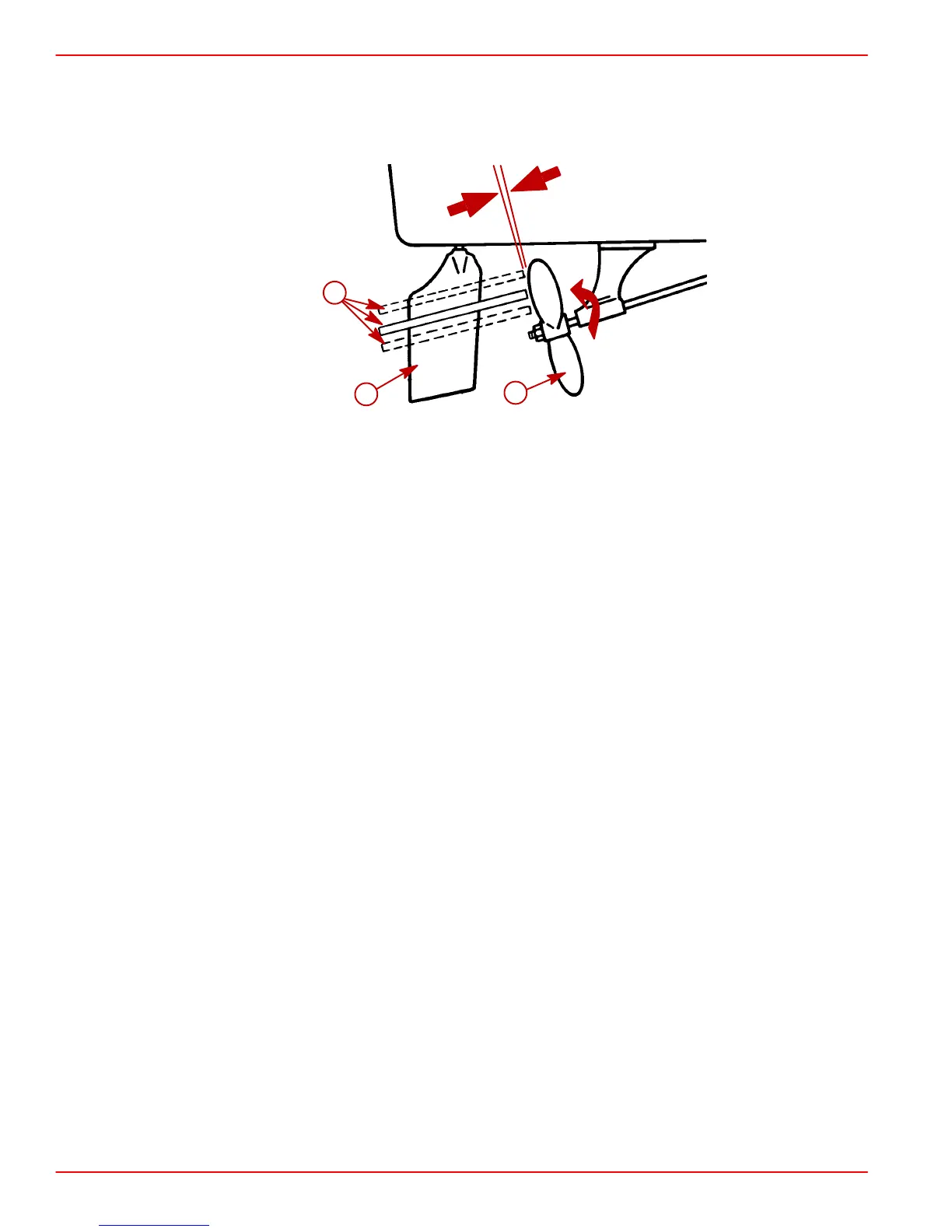

NOTE: Hold metal straight edge to rudder with a C-clamp or equivalent.
a
b
c
a-Metal Straight Edge
b-Rudder
c-Propeller Blades
