PUMP AND RELATED COMPONENTS SERVICE MANUAL NUMBER 22
Page 9A-6 90-860074--1 FEBRUARY 2002
Installation

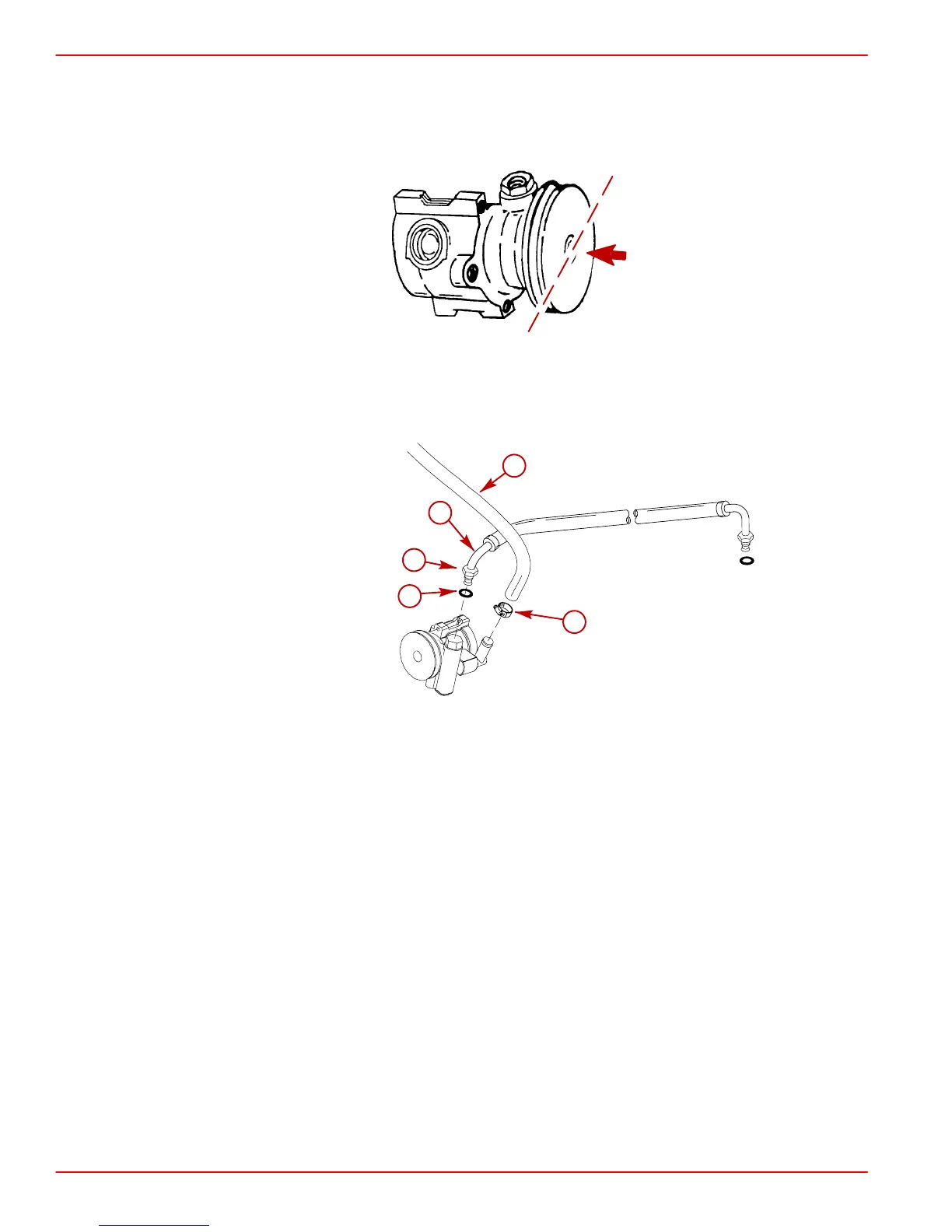

1. Using a suitable screw, push (install) pulley onto shaft until pulley face is flush, as shown,
with shaft end (screw head will bottom out).
74481
2. Install reservoir hose and pressure hose to pump as shown. Temporarily hand tighten
only.
a
b
c
d
e
78418
a-Reservoir Hose
b-Hose Clamp
c-Pressure Hose
d-O-ring
e-Fitting
