Working with patch connectors
You can select patch connectors one at a time by clicking on them, or you can select
them in blocks by using a drag operation. All of the patch connectors in both the From
or To sections are on tabs so, before you can select a patch connector, its tab must be
open.
>> To open a tab in the From or To sections
Click the tab title. For example, Ins. Sends (insert sends).
>> To select a single patch connector
Click the patch connector. The effects of clicking a patch connector are shown in the
following table.

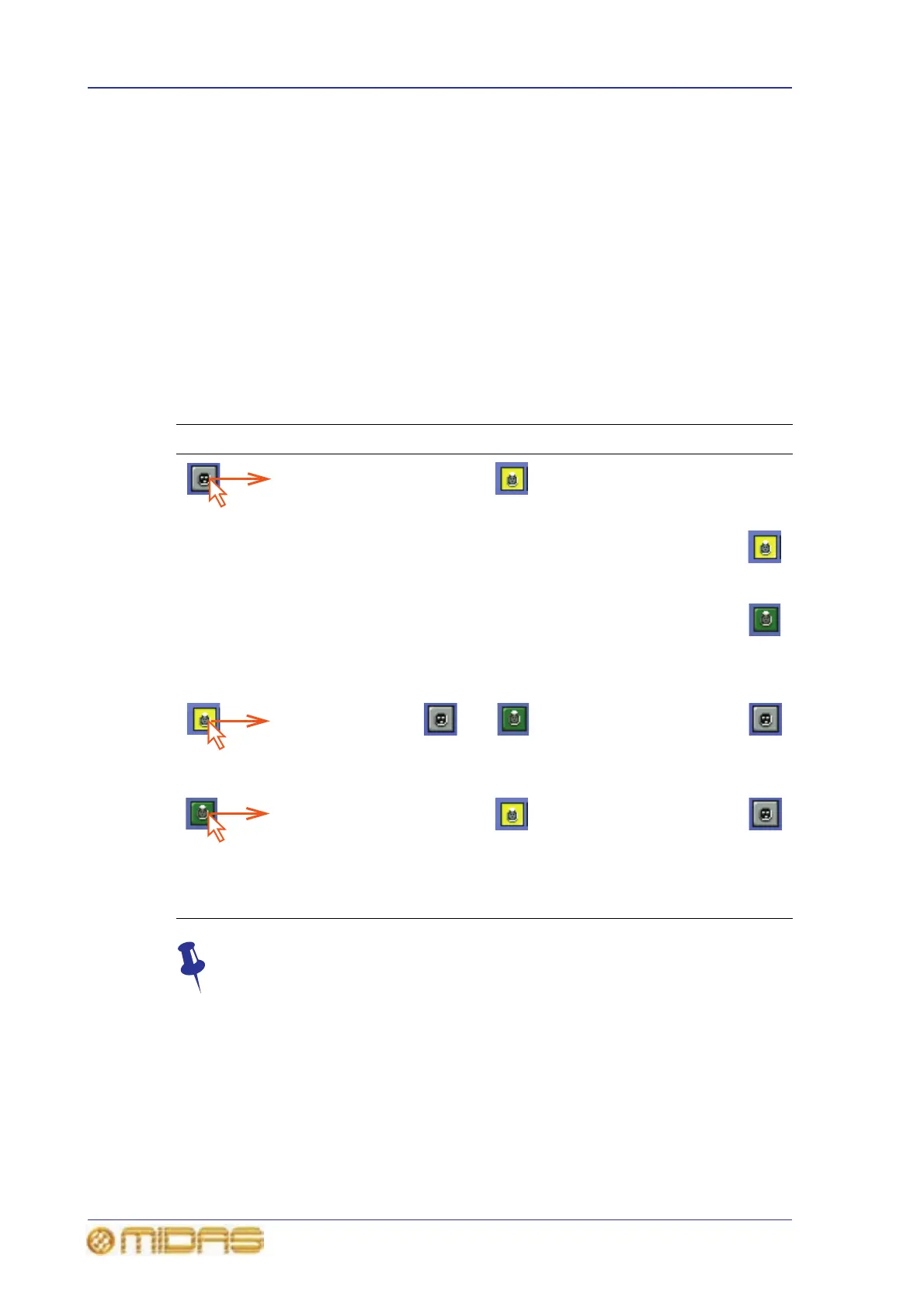

Table 2: Effects of clicking a patch connector
To quickly check the destinations of a source patch connector, click it. This will
select it and all of its destinations. A green triangle will appear under the name
of any tab in the To section that contains a destination(s).
Clicking Does this in the From section Does this in the To section
Selects patch the
connector.
Will do one of the following
(provided a source patch
connector(s) has been selected
in the From section):
• Selects the patch
connector during a
single patching
operation.
• Patches the patch
connector during either
a sequence or an
automatic patching operation.
Otherwise, this has no effect.
Deselects the
patch connector,
which then
reverts to its previous state
(patched or unpatched).
Removes the patch.
Selects the patch
connector and all the ones
it is patched to in the To
section. Shows which tabs
contain selected patch
connectors by putting a green
triangle under the title of each.
Removes the patch.
