126 Chapter 14: Monitors And Communications
PRO6 Live Audio System
Owner’s Manual
Although the capabilities of both monitors are the same, monitor A is the primary
output. They both have a fader control, and there are six balanced XLR outputs on the
rear panel (see “Monitor and assignable outputs/surround section” on page 246).
The monitor output controls do not have support from the screens and are not affected
by automation.
The analogue section of monitor has six balanced XLR outputs (see “Monitor and
assignable outputs/surround section” on page 246). These feed the six speaker XLRs
and two headphone sets. Monitor inputs are fed from the router/line I/O module that
contains digital solo source signals etc. converted to analogue, as selected on the
control surface.
Only the meters have GUI support. monitor a and monitor b meters monitor the
peak signal levels of stereo left and right for both monitor paths. The metering
capabilities of both monitors is the same.

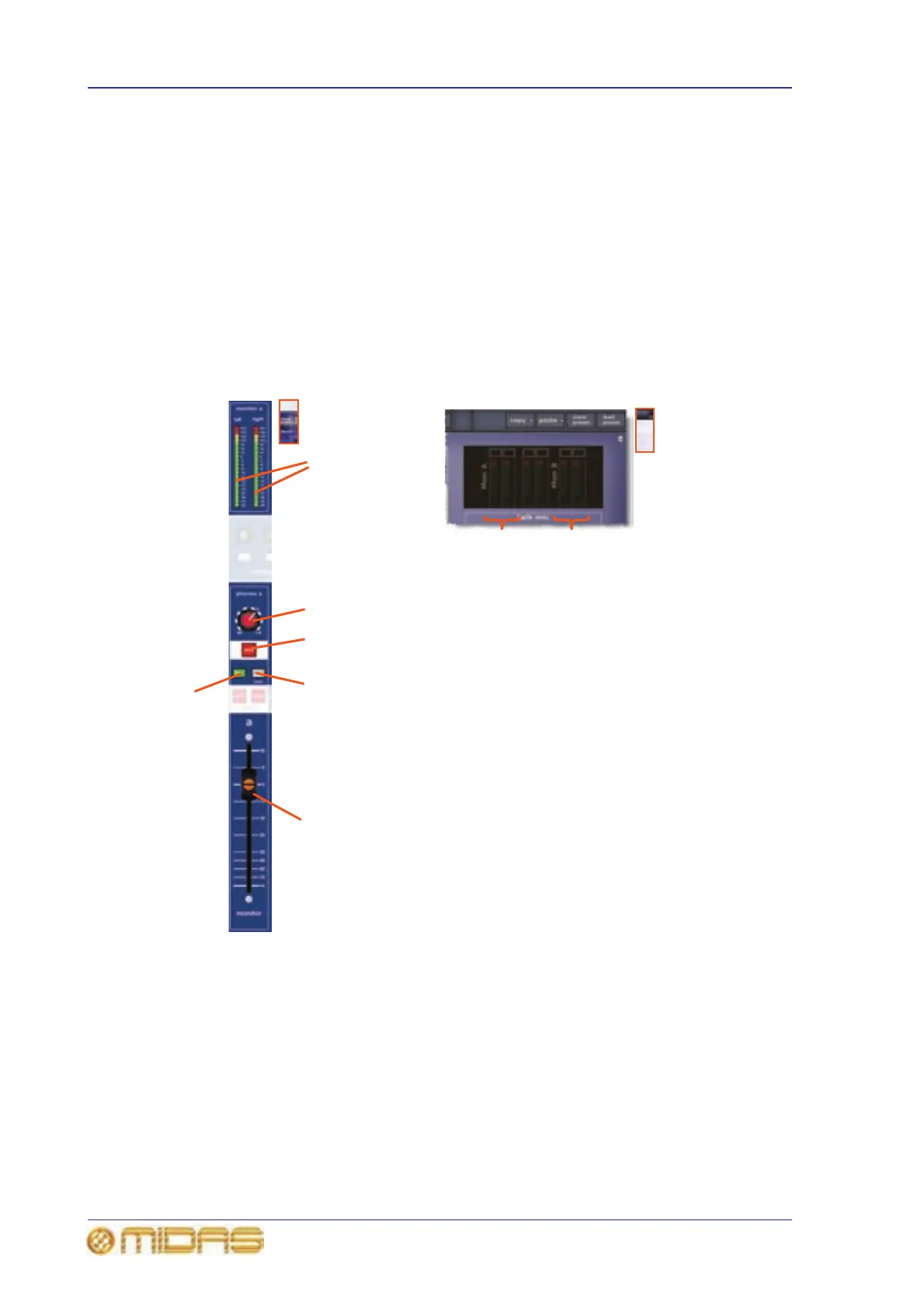

Figure 18: Monitor strip
>> To switch control of headphones to fader
Press C/O.
1
2
3
4
5
6
1
1 Stereo left and right peak level meters for the monitor
signal.
2 Control knob, adjusts headphones level. Signal
adjustment is from infinity (∞) to +10dB.
3 Headphones MUTE button, mutes the headphone jack.
4 C/O (fader) switch, switches control of output on
headphones to fader to allow fader control of headphones.
5 Non-automated fader for control of monitor A speaker
level from -∞ to +10.
6 DIM button, dims monitor signal output level by 20dB on
monitor speakers.
1
