246 Chapter 29: Panel Connections
PRO6 Live Audio System
Owner’s Manual

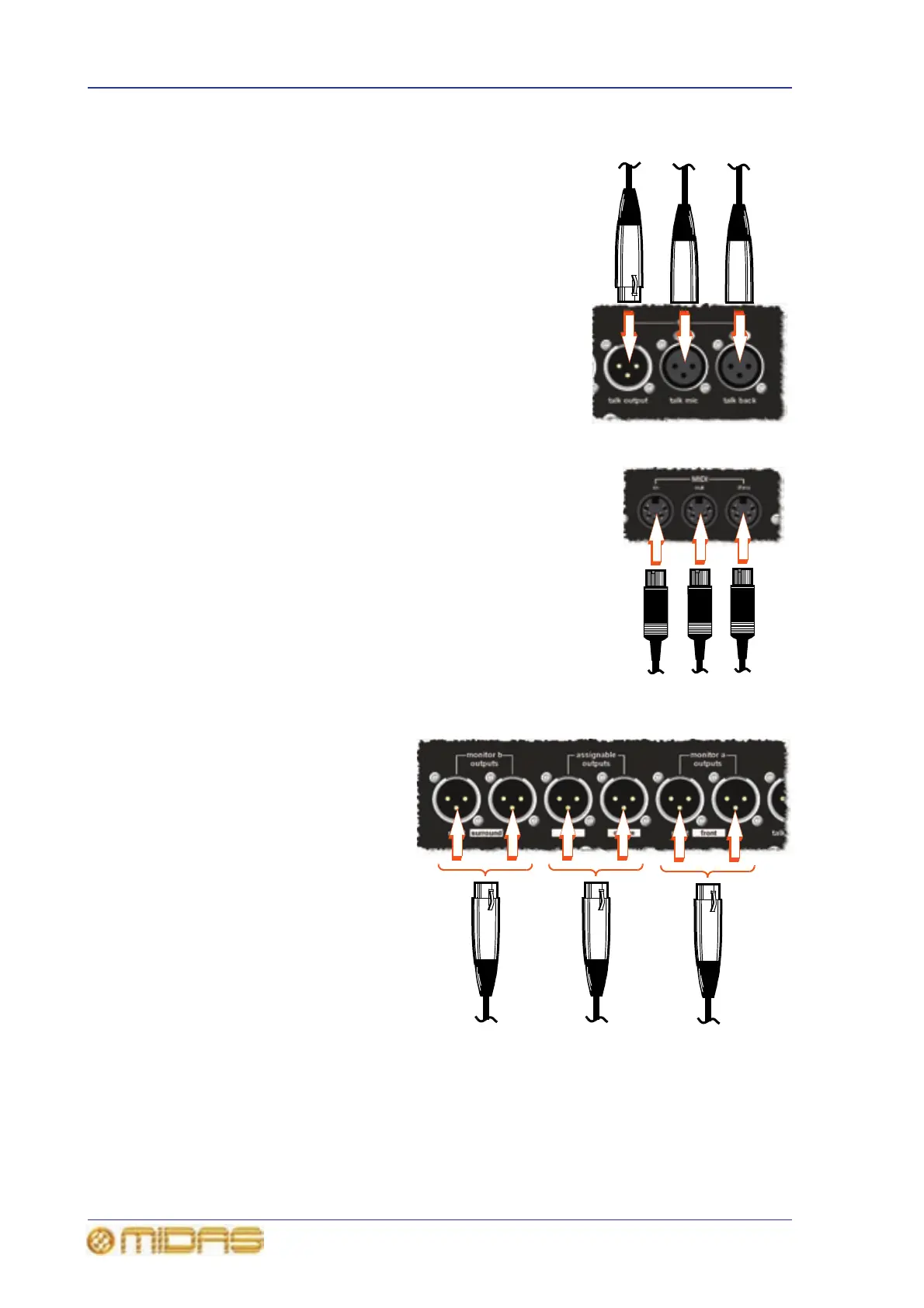

talk section
The talk section has the following connectors:
• talk output — male output XLR.
• talk mic — female input XLR. This is the equivalent to
the talk mic socket on the front panel (see “Front panel
connections” on page 243). Use one or the other of
these connections, but don’t use both.
• talk back — female input XLR.
MIDI section
The MIDI section has in, out and thru sockets that each
accepts a 5-pin DIN connectors.
Monitor and assignable outputs/surround section
There are two monitor outputs
sections (a and b) for the
monitor A and B sections, and
an assignable outputs section.
Each section has right and left
connectors.
When the PRO6 is configured
for surround panning operation
the three output sections
function as speaker/subwoofer
connectors. The connections
for the three types of surround
operation (quad, LCRS and 5.1)
area shown in Figure 29,
Figure 30 and Figure 31. For
more information on surround
panning, see “Surround
panning” on page 100.
