External connections and communications (centre left) section

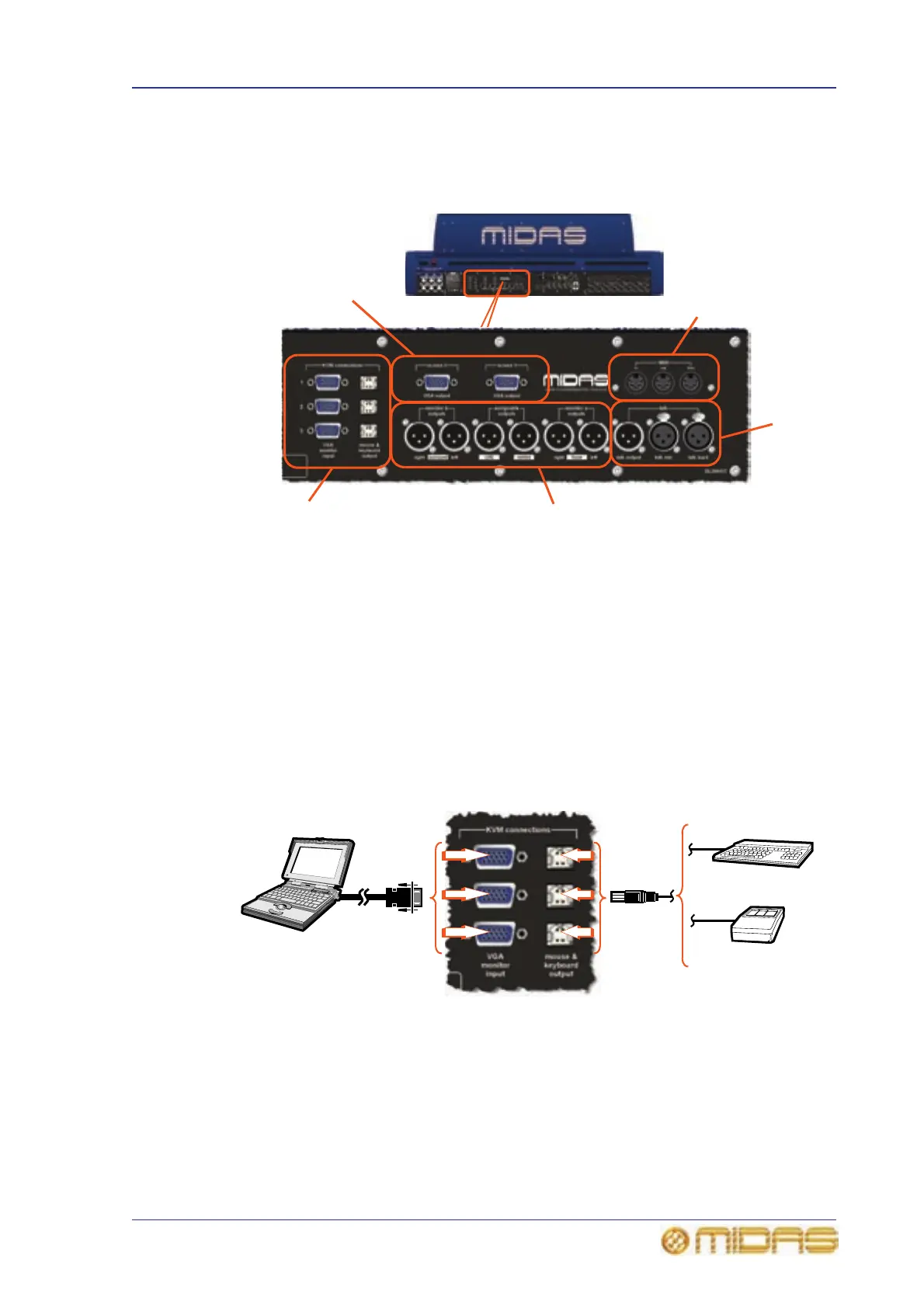

The centre panel houses the sections shown in the following diagram. Split into the
three types, as per Spec., that is, control, primary system I/O and digital audio.
KVM connections section
Three sets of KVM connections allow three PCs (laptops, tablets etc.) to be connected
to the PRO6 Control Centre for external monitoring and control. Each set comprises a
VGA monitor input 15-way, D-type socket and a mouse & keyboard output USB
type B socket, which can be used for connection of a mouse or keyboard.
1 KVM connections section. See “KVM
connections section” on page 245.
2 talk section. See “talk section” on
page 246.
3 Monitor/surround outputs section. See
“Monitor and assignable outputs/surround
section” on page 246.
4 KVM connections section. See “KVM
connections section” on page 245.
5 VGA outputs section. See “External
monitor section” on page 250.
1
2
3
4
5
Laptop PC,
tablet etc.
Mouse
Keyboard
15-way
D-type
connector
USB type B
connector
