Aux Sends (aux channels) 561
XL8 Live Performance System
Owner’s Manual
Fader Sections

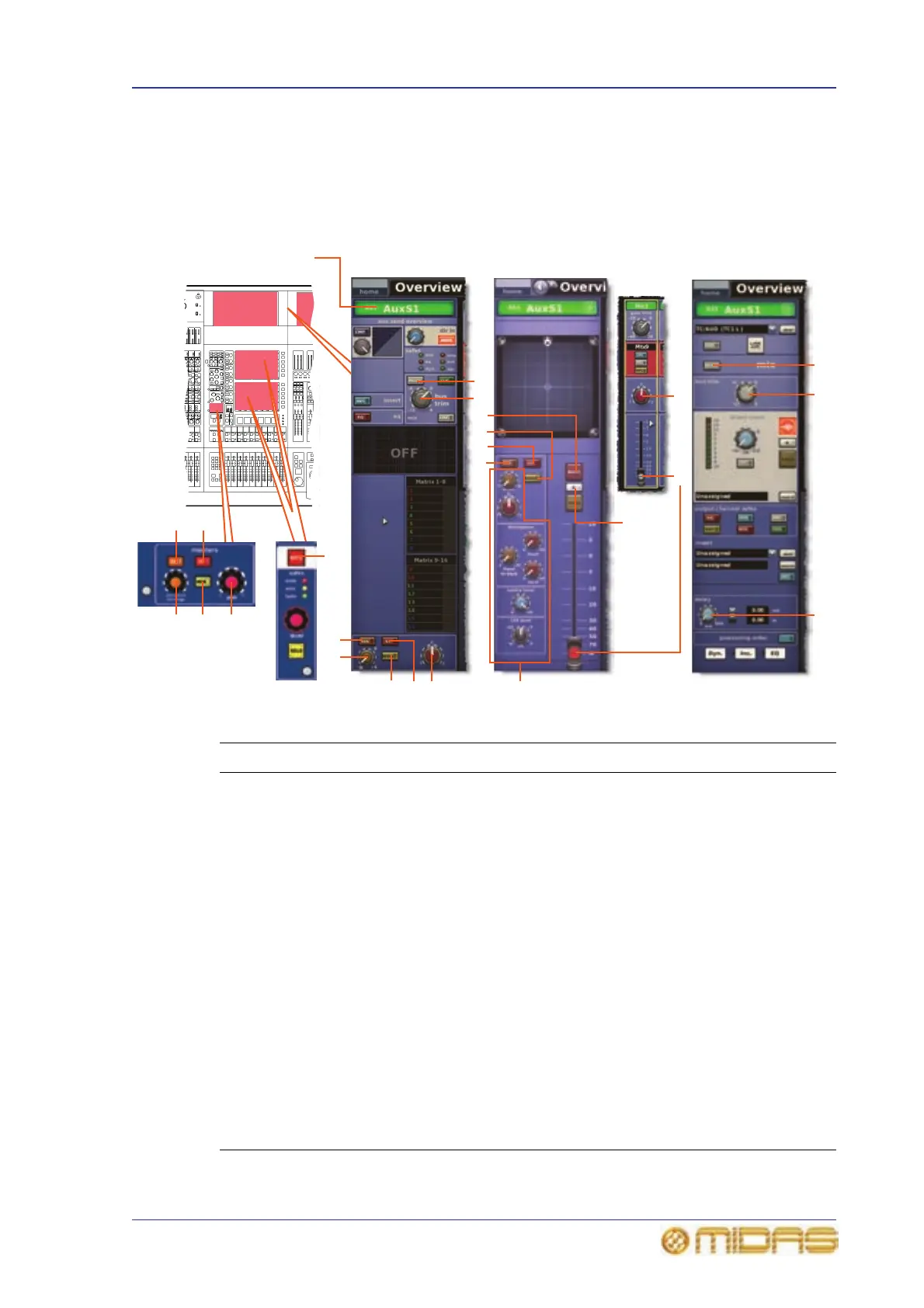

The following diagram shows the parameters of the master routing processing area
copied through scenes.
Item Control Parameter
1 ST switch Stereo on/off
2 MON switch Mono on/off
3 SIS switch Spatial imaging system on/off
4 Panning control knobs Surround panning (includes all surround sound
parameters)
5 mono level/SIS
image control knob
Mono level (SIS off) or SIS image (SIS on)
6 Fader Level
7 MUTE switch Mute on/off
8 B switch Solo B in/out
9 Field Channel name
10 bus trim control knob Bus trim level
11 delay control knob Delay time
12 Field Channel colour
13 MODE button Bus mode
input channel
overview in GUI
channel strip
4
6
Masters processing
area in GUI
channel strip
3
4
2
1
425
1
GUI input
fast strip
7
8
4
1
2
5
3
9/12
7
3
Insert and
configuration
processing area in
GUI channel strip
13
10
11
13
10
