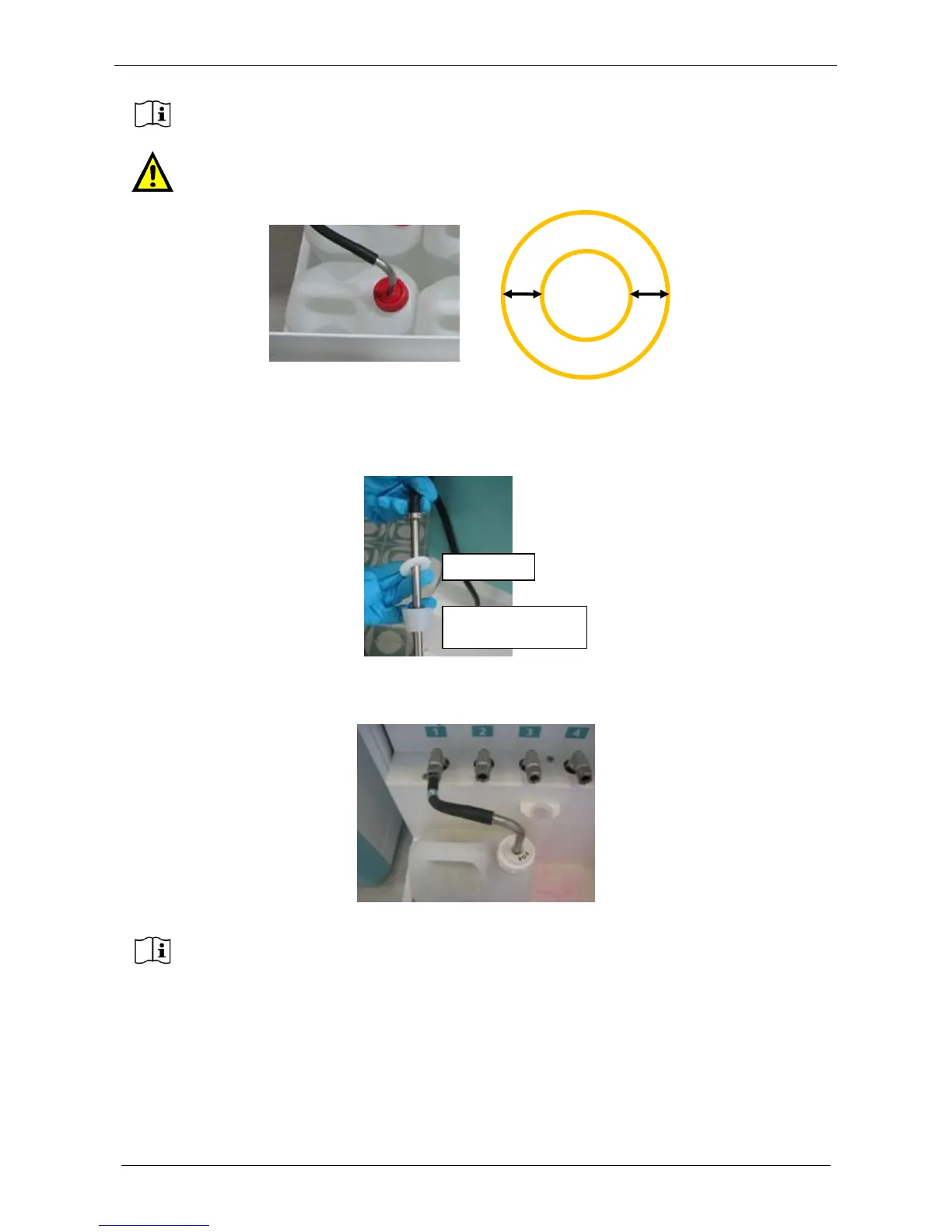

The image below shows the final configuration.
 Insert the tank containing fresh reagent (Formalin in this case) in the correct position (hose number 1
in this case), then insert the rapid connector in the corresponding position (number 1 in this case).
Milestone suggests to make manually an hole into the original cup of the tank, as shown
below.
If you make an hole into the cup, it is required that the diameter hole is minimum 6mm
larger than the metallic pipe.
Always check that you have properly entered the rapid connectors.
Plastic ring
Hole into the original
cup of the tank
≥3mm
≥3mm
Pipe
Cup’s hole
