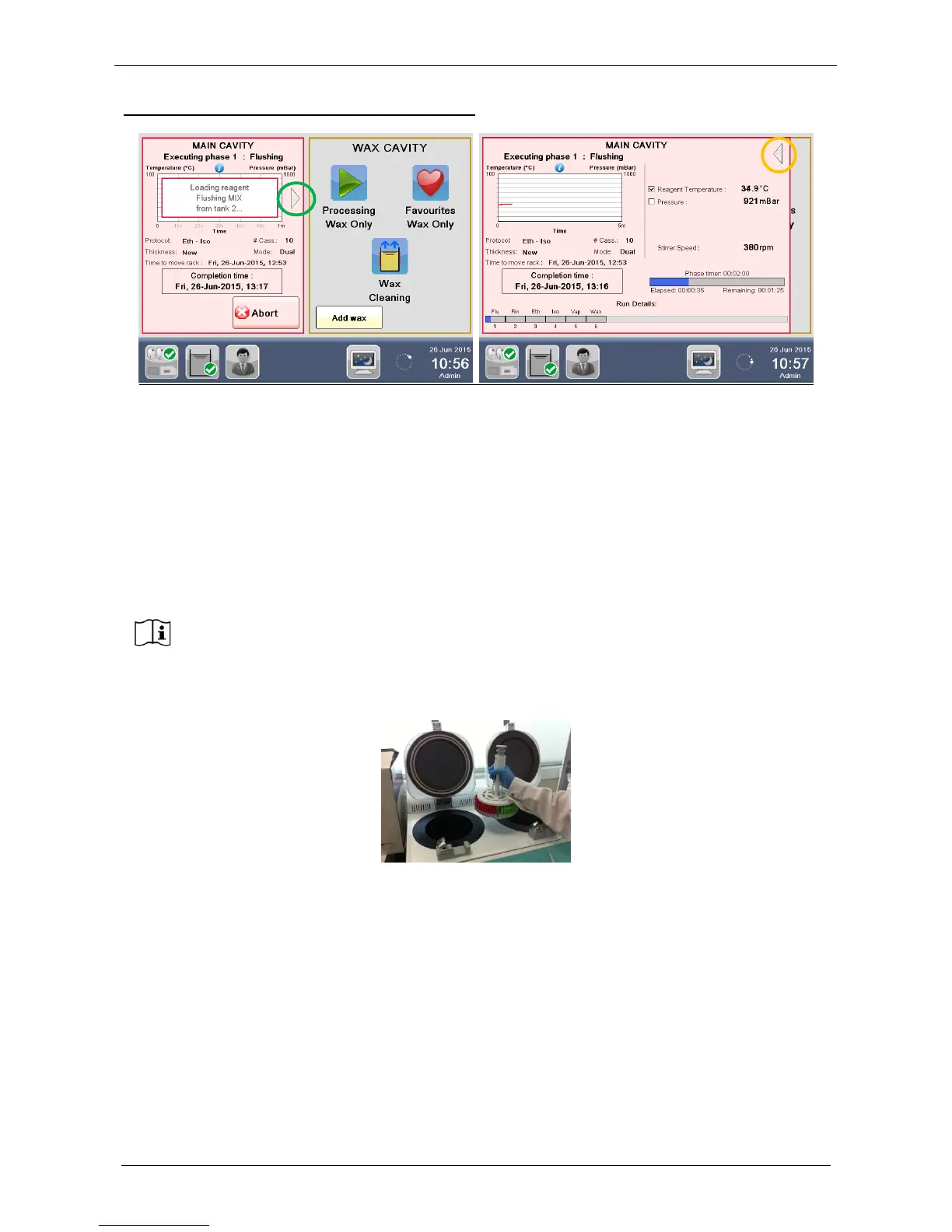

GRAPH DISPLAYED DURING PROGRAM RUNNING
Picture on the left: EXECUTING PHASE NUMBER and NAME, phase graph with pre-set (blue) / real (red)
temperature. Under the graph: PROTOCOL type, NUMBER OF CASSETTES processed, THICKNESS, RUN
MODE, TIME TO MOVE THE RACK and processing COMPLETION TIME.
For further information, press the arrow on the right of the MAIN CAVITY graph (green circle):
Picture on the right: REAGENT TEMPERATURE, STIRRER SPEED, time DETAILS of the current phase
(highlighted in blue) and RUN DETAILS of the total program. On the bottom left all phases of the program
are displayed with the completed or actual in blue.
To return to the left screen press the arrow in the top right (yellow circle).
At TIME TO MOVE THE RACK USER is required to MANUALLY MOVE THE RACK to WAX CAVITY
(RIGHT).
Last phase of a DUAL process is WAX impregnation performed in the WAX CAVITY (right cavity and part of
the screen, with YELLOW background), as shown below. An audio alarm warns that program is over; press
Extract the rack.
If necessary in every moment it is possible to press ABORT to stop the program, unload
reagent and cassettes (Extract the rack), refer to chapter 3.2.1.1.
