101
A description of all the elements listed above, where present, can be found hereafter.

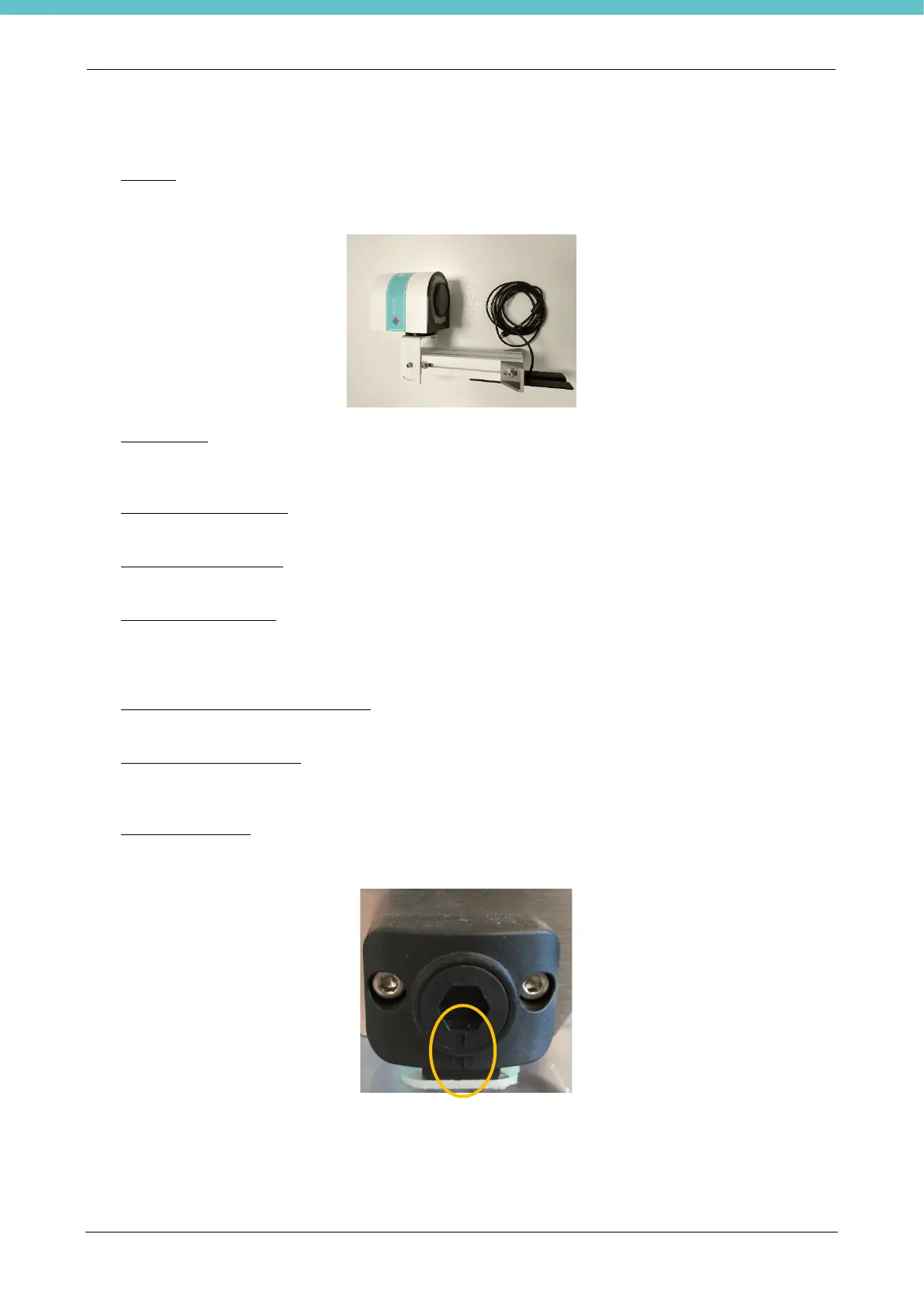

1. Camera (only with letter C - 2X if double letter C in code)
The camera specifications are provided in chapter 1.3.3.; camera installation is provided in chapter 2.5.2.
2. Unit terminal
The terminal specifications are provided in chapter 1.3.3.; the description of the terminal software is provided
in chapter 2.6.
3. Waterproof button panel
The photo and description of the membrane keyboard are provided in chapter 2.6.
4. Unit terminal USB ports
There are two USB ports on the right side of the unit’s terminal.
5. Objects holder surface
The objects holder surface can be used to set the work material. This surface is not ventilated. Examples of
objects that can be placed: cassettes, dry sponges, printer for cassettes. The surface is 27cm deep.
Maximum capacity of the surface: 15Kg distributed in VIRCHOW model, for all other models 20Kg distributed.
6. 4X Auxiliary sockets (except letter J)
Refer to chapter 1.3.3 – Auxiliary sockets.
7. Operator presence sensor
The operator presence sensor is located in the middle underneath the unit’s control terminal. It is controlled by
the membrane keyboard and by the software, as described in chapter 2.6.
8. Safety shield block
The shield block is placed in the middle, below the control terminal of the unit. The unit is shipped with the
safety shield blocked, as indicated in the figure below. When the shield is blocked, you will see two black
overlapping bars.
To lock/unlock the safety shield, use an 8 mm Allen wrench like the one supplied with the unit.
The software of the control terminal of the unit triggers an alarm when working with the shield open, as
explained in chapter 2.6.
