5.2. Ventilated waste paper bin
Two sizes of ventilated waste paper bins are available:
- Ventilated waste paper bin 60L with trolley (CODE 102593)
External dimensions: WxDxH 350x570x850 mm
Internal dimensions: WxDxH 310x490x575 mm
- Ventilated waste paper bin 80L with trolley (CODE 106742)
External dimensions: WxDxH 420x570x935 mm
Internal dimensions: WxDxH 380x490x680 mm
It is an optional part for collecting waste (e.g. paper soiled with fixative). The bin is connected to the unit's
ventilation system. The assembly instructions are provided below.

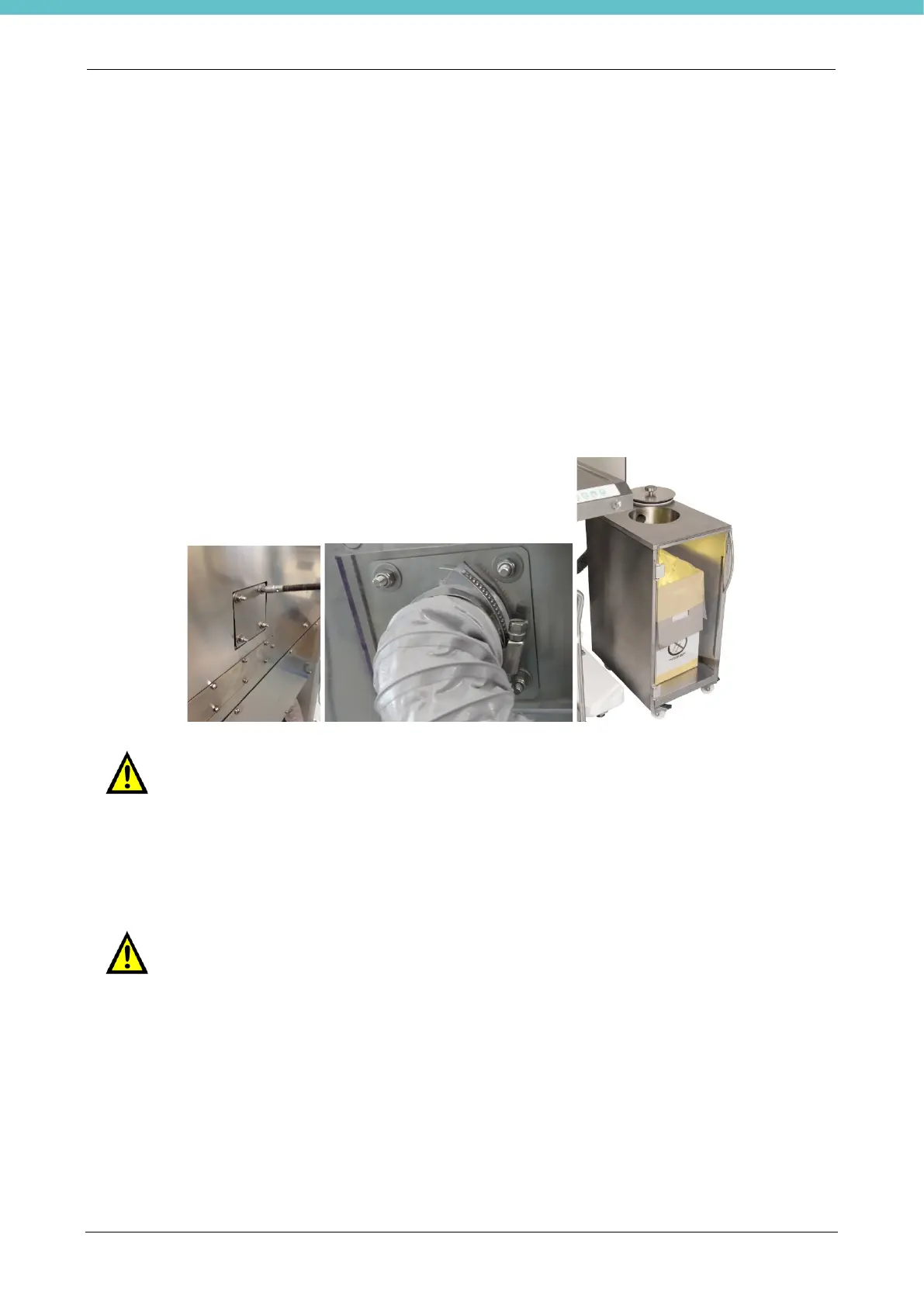

The system comes complete with wheels with brake, a ventilated pipe and a ventilated attachment.
Remove the rear panel by unscrewing it with an 8 mm spanner or socket wrench.
Fasten the ventilated attachment using an 8 mm spanner or socket wrench.
Afterwards, connect the exhaust tube and secure it using the supplied strap.
Connect the other end of the exhaust tube to the bin and secure it with the supplied strap.
Remove the cover every time the waste material is thrown out, then close the cover again.
The container for infective organic waste shown in the figure is not included in the supply.
The bin can be installed on either left or right side of the unit.
The rear panel serves only the connection of the ventilated bin's system.
To use the bin with the cover open during sampling, keep it close to the front of the unit.
