Mindray Resona R9 Exp User Manual

Operator’s Manual 7 - 1
7 3D/4D
NOTE:
3D/4D imaging is largely environment-dependent, so the images obtained are provided for
reference only, not for confirming a diagnosis.
7.1 Overview
The ordinary 2D imaging has the limitations on viewing the overall structure and different planes of
the target. However, 3D imaging can obtain the reference information by overall observation.
7.1.1 Terms
• Volume data: to obtain the data collection of three-dimensional object via the sequence
reconstruction to two-dimensional object.
• 3D image Volume Rendering (VR): the 3D image on the screen.
• View point: the position for viewing volume data/3D image.
• MultiPlaner Rendering (MPR): a tangent plane of the 3D image that obtained by algorithm.Of
which, XY-paralleled plane is C-plane, XZ-paralleled plane is B-plane, and YZ-paralleled
plane is A-plane.YZ-paralleled plane is B-section. The probe is moved along the X-axis.

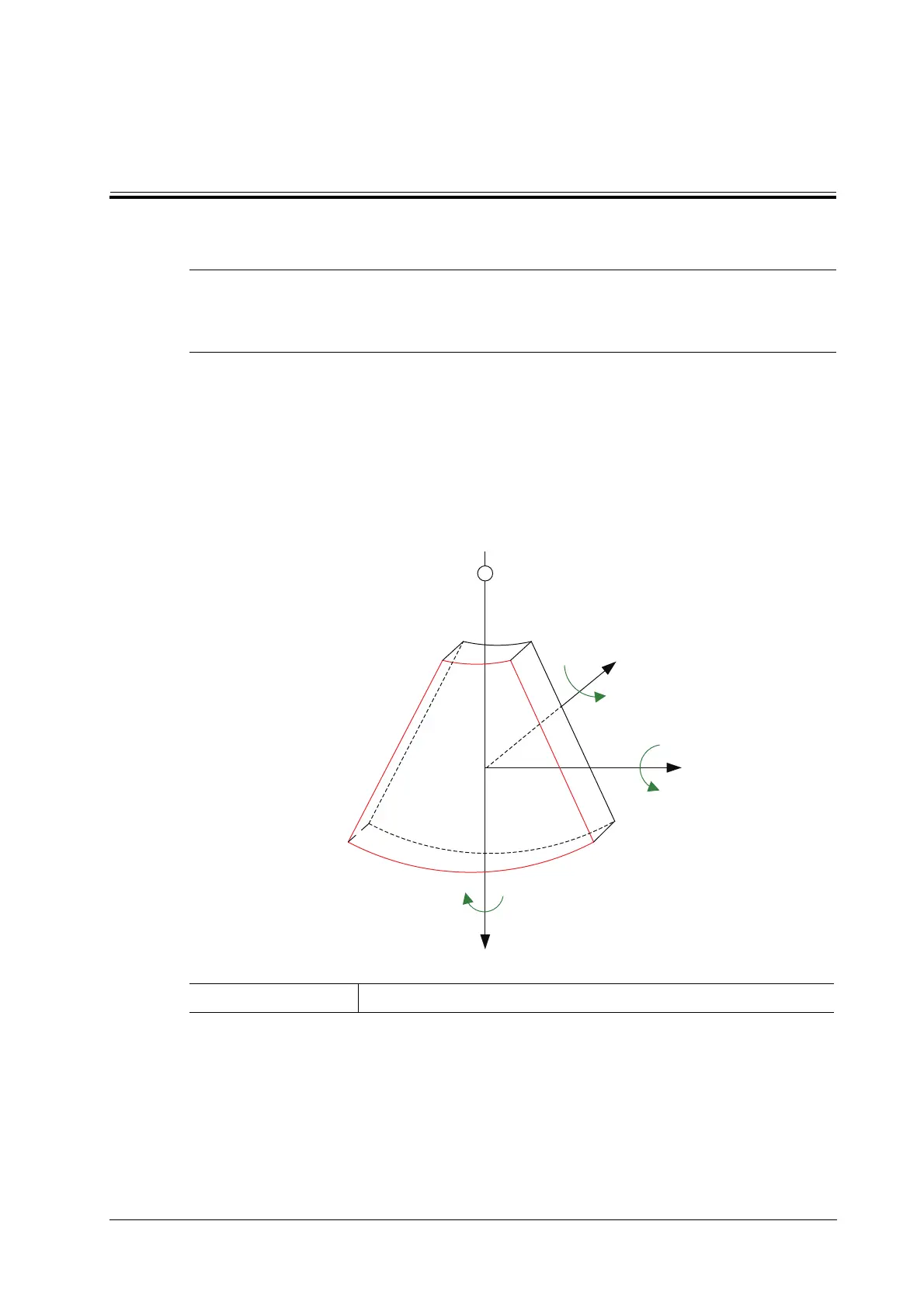

AView point
X
Y
Z
1
23
A
4
7
8
6
5
