7. Rotate the knob under [Adjust Frame] to review the cine frame by frame.
13.4.3 Cine Review in M/PW/CW/TVD Mode
Enter cine review in M mode, PW mode, CW mode TVD mode, and then use the trackball the cine
images are displayed on the screen one by one.
Move the playback mark to the left by using the trackball. The review progress slider moves to the
left, the images moves to the right, and the earlier stored images are invoked. Whereas move the
playback mark to the right by using the trackball, the review progress slider moves to the right, and
the images move to the left, the recently stored images are invoked. When the image goes to the
first/last frame, the cine is played in loop with the trackball moving left or right.

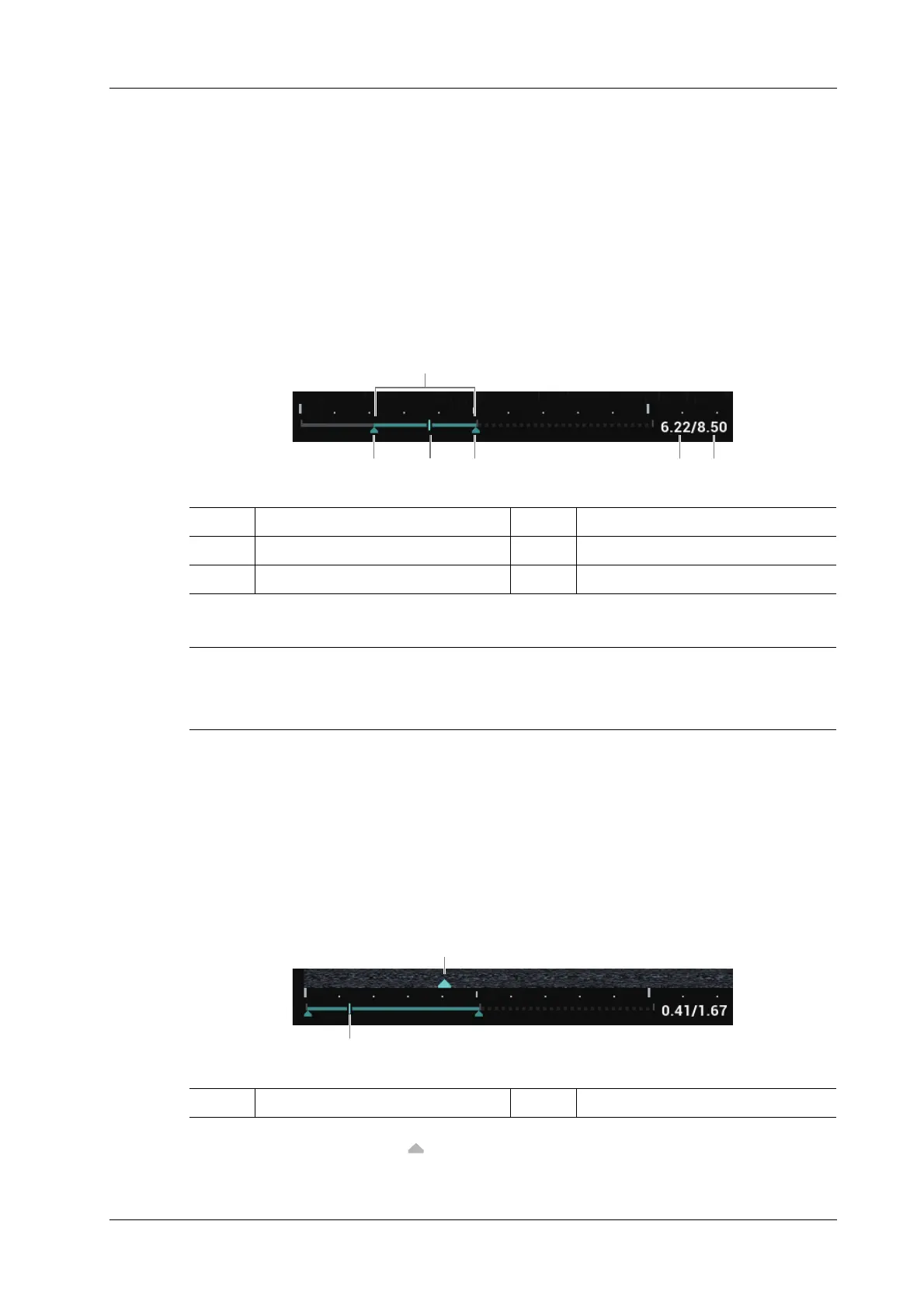

The cine progress bar at the bottom of the screen (as shown in the figure below):
Cine review operations are the same as these of 2D mode.
There is no audio when the spectrum is reviewed in manual status but audio synchronization can be
realized in auto review status with speed of ×1.
13.4.4 Linked Cine Review
The linked cine review refers to review of the images captured at the same moment.
• B/Color/Power/TVI/TEI dual live
•B/B dual live
• B+M synchronization mode
• B+PW/TVD duplex mode
• TVM, CM triplex mode
The frame synchronization mark on the time mark of M/PW image indicates the corresponding
2D image and M/PW image. In statuses other than dual live status, you can only review images in
the currently active window.
1Start mark 2Playback mark
3End mark 4Time played
5 Total time 6 Auto Review Region
123
6
45
1 Frame synchronization mark 2 Playback progress bar
1
2
