4 - 10 Operator’s Manual
4 Setup
NOTE:
Before starting measurement, ensure that the GA data is acquired by manually entering the LMP in
the “Patient Info” page.
4.1.6 Key Configuration
Assign functions to the foot switch and user-defined keys.
Key function setting
You can set the functions for <Save>, <Print>, user-defined keys (including F3, F4, F5, F6, K1 to
K8). To assign a function to a key:
1. Click to select the desired key in the Key Function column on the left side of the page.
2. Click to select a function in the Function area. You can see the available functions selected on
the right side.
3. Click [Save] to complete the function setting.

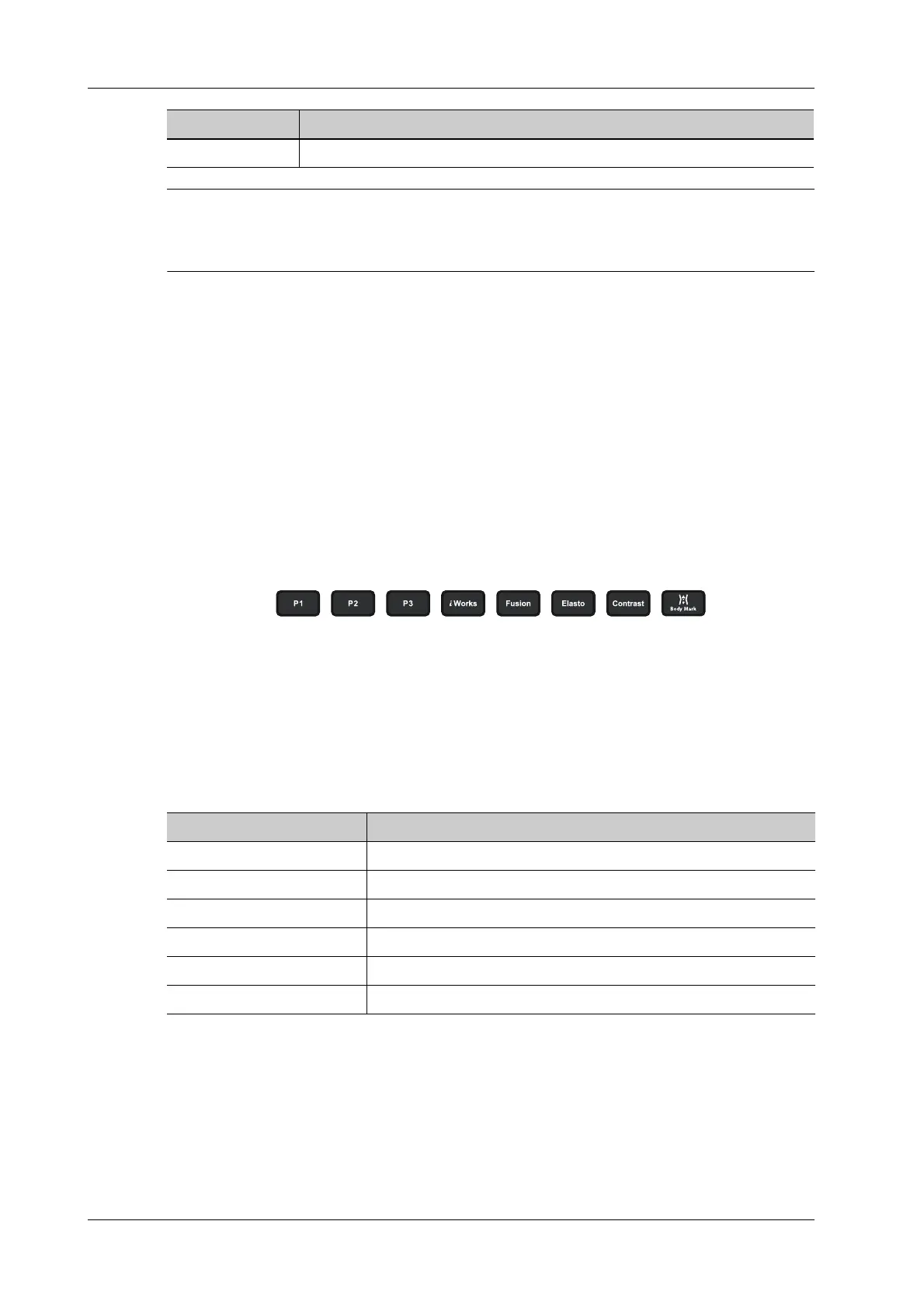

The rectangle key from the left to right are the user defined keys K1 to K8 on the control panel.
Foot switch function setting
You can assign a function to the left/middle/right key of the foot switch. The method is similar to
setting key functions.
Other Settings
4.1.7 Gesture
The gesture setting is the same with the settings of other keys. see “4.1.6 Key Configuration”.
see “2.13.4 The Display of Touch Screen and Its Operation” for the operation to two-figure gesture
on the touch screen
References To display the reference information of a specific measurement item.
Item Description
K1 K2
K3
K4
K6
K7
K5
K8
Item Description
Key Preview To preview the user-defined key layout of the control panel.
Control Panel Brightness To set the brightness for control panel key.
Trackball Speed To set the speed of the trackball when moving the trackball.
Key Volume To set the key volume at 3 levels, 0 means no sound.
Touch Screen Volume To set the touch screen volume at 3 levels, Off means no sound.
Trackball Cine Play Speed To set the cine playing speed when moving the trackball.
