Mindray Resona R9 Exp User Manual

C - 2 Operator’s Manual
C iScanHelper

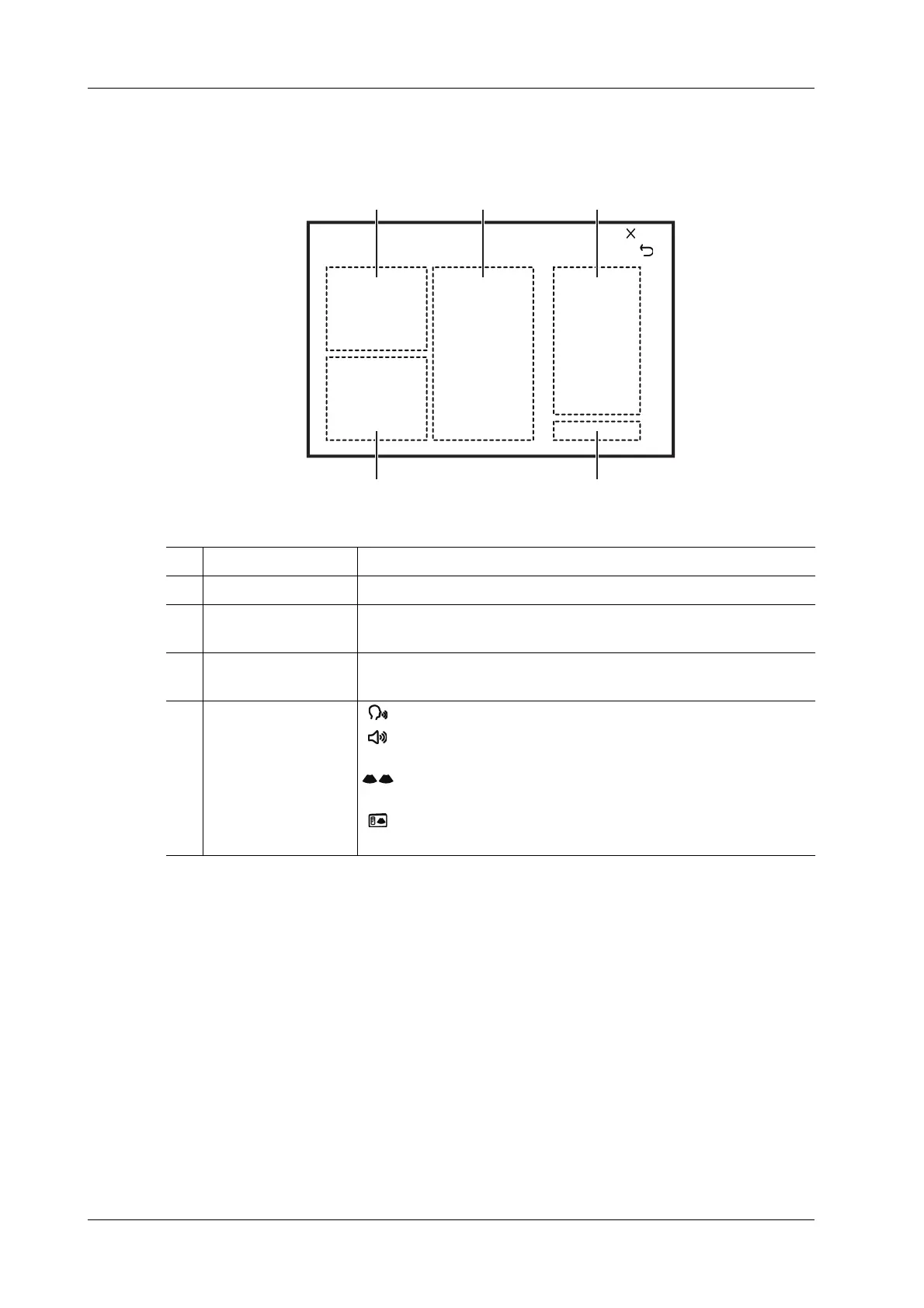

C.3 Basic Screen and Operation
1. Ultrasonic image It is used to compare with images scanned by the operator.
2. Anatomic graphic Related anatomical tissue information are provided here.
3. Scanning tips You can read tissue related anatomical information and adjacent
tissue information here.
4. Scanning picture Ordinary scanning tips can be observed here, including posture,
probe mark, probe swing/sweep techniques.
5. Button : After clicking the button, the system reads scanning tips.
: After clicking the button, you can adjust reading volume or put
it on silent.
: After clicking the button, the standard ultrasound images will
be synchronized to the main screen and zoomed in.
: After clicking the button, iScanHelper information will be
synchronized to the left side of the main screen.
1
45
23
Ref L

Mindray Resona R9 Exp Specifications

General

Type	Ultrasound System
Probes	Convex, Linear, Phased Array
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Advanced Imaging	3D/4D imaging, Contrast Enhanced Ultrasound (CEUS)
Connectivity	DICOM, Ethernet, USB
Portability	Mobile system with wheels
