3 System Preparation
Operator’s Manual 3 - 7
Take care not to trap your hands when adjusting the monitor up and down.
3.4.2 Rotating the Monitor

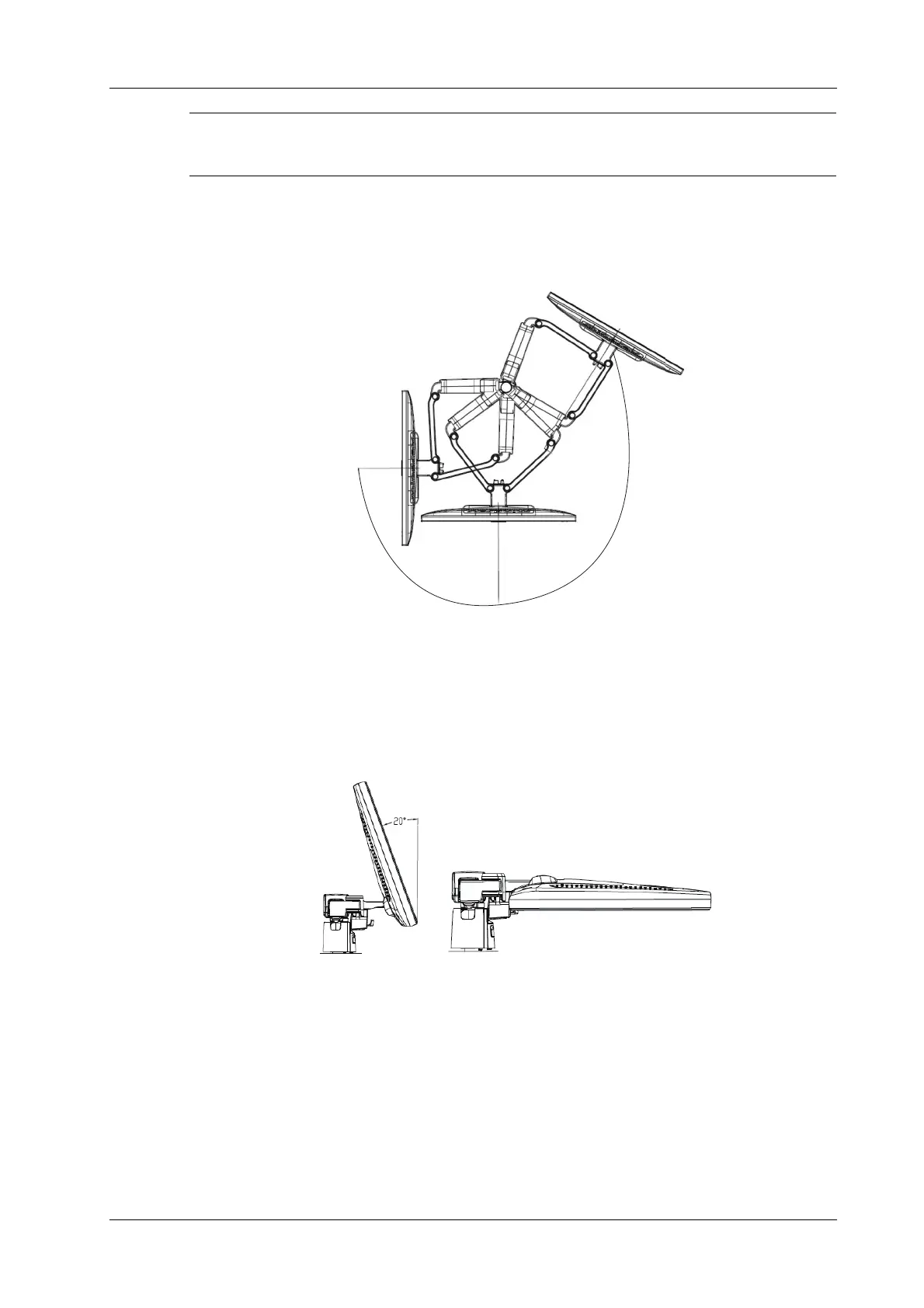

The monitor can be rotated 90° to the left and 180° to the right along with the supporting arm.
3.4.3 Tilting the Monitor
When positioned vertically, the monitor can be tilted 20° backward and can be tilted forward to a
horizontal position. When transporting or moving the system, keep the monitor in the horizontal
position, as shown below:
3.4.4 Locking the Monitor
If the ultrasound system is required to be moved within a short distance (for example: move to other
department), turn the monitor to the horizontal level, push it to the locking structure, and then the
monitor can be locked. For more details, please refer to the operation diagram that is attached to the
supporting arm.
