NOTE:
Be sure to use the section displaying the maximum of the lesion for marking.
4. The lesion is enveloped by 3 circles from the inside and out: real-time mark, maximum
diameter mark and safety boundary.
– Perform the marking steps repeatedly for multiple marks. Marked color are displayed in
green, red and blue in cycle and result window displays the diameter of the marked circle.
– Refer to chapter “6.15.6 Marks” for details about moving/deleting/displaying/hiding
marks.
Marking procedure under Fusion imaging mode
Tap [Register CT/MR] and tap [Add Mark]->[Display Marks] to turn on the mark function. Refer to
chapter “6.15.6 Marks” for details.
17.3.5 Screen Display in the Guiding
In-plane biopsy

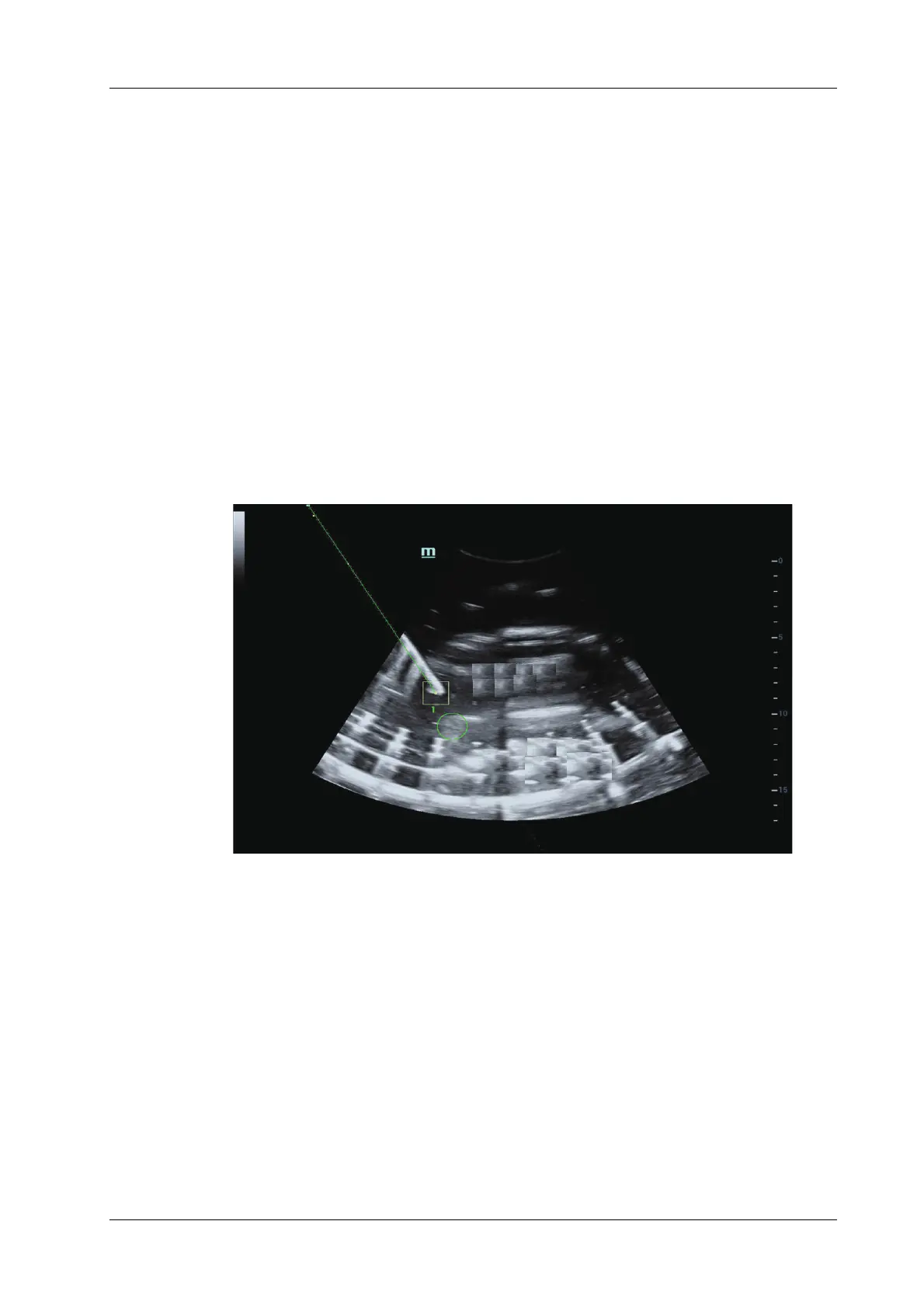

In-plane navigation applies to needle path inside the ultrasound image plane.
