2 System Overview
Operator’s Manual 2 - 11
2.8 I/O Panel

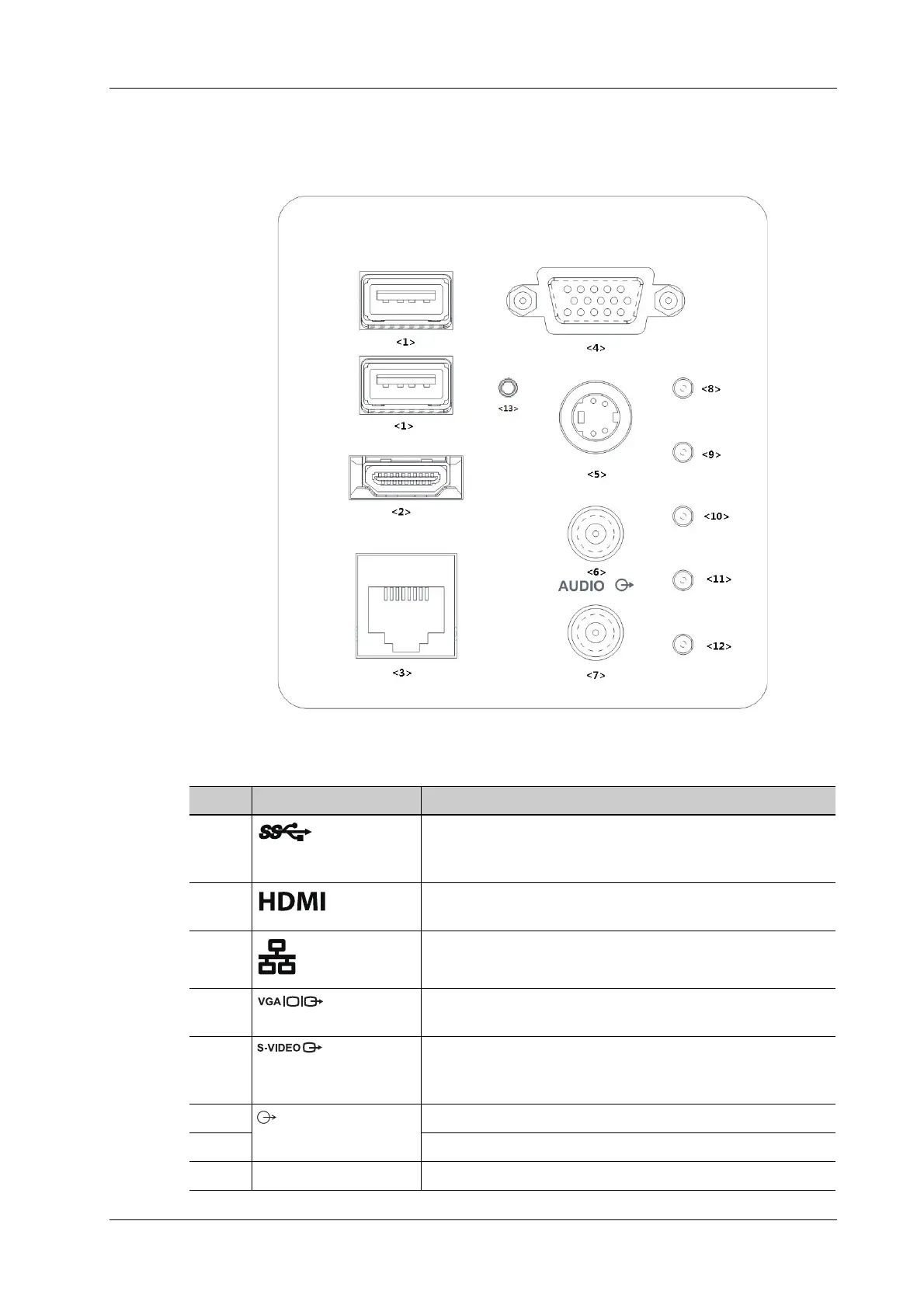

Figure 2-2 I/O Panel
No. Name Function
1. High speed USB port. Used for connecting storage device
such as USB disk, Fusion imaging module, bar code reader,
printer, footswitch, DVD recorder, etc.
2. High definition multimedia interface. Used for connecting TV,
projector, ultrasound workstation video capture card, etc.
3. Network port. Used for connecting router, ultrasound
workstation, server, etc.
4. VGA signal output. Used for connecting TV, Projector,
ultrasound workstation video capture card, etc.
5. S-Video signal output. Used for separating video output, and
connecting projector, ultrasound workstation video capture
card, etc.
6. Audio signal output port, left channel.
7. Audio signal output port, right channel.
8. / 12 V indicator
