17 Probes and Biopsy
Perform the following procedure:

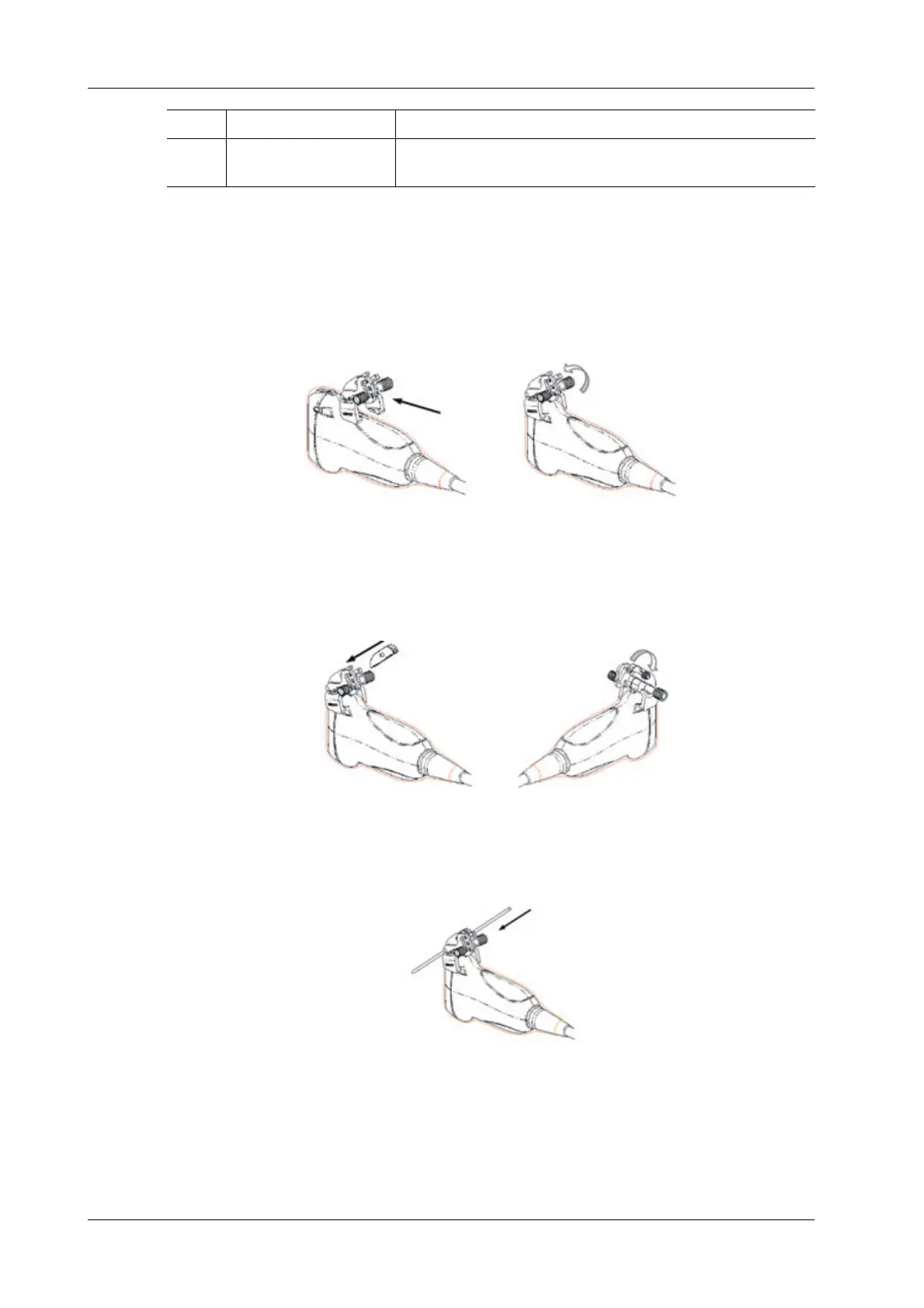

1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Hold the probe by one hand, select the proper needle-guided bracket, and hold it with the
other hand. Match the groove and tab with the tab and groove of the probe respectively.
Amount the bracket onto the probe.
c. Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the probe.
d. Select a proper guiding block and push it into the groove above the angle block, and
clamp it tightly.
e. Screw the nut of the block to secure the block.
f. Insert a biopsy needle with the same specification as that of the guiding block into the
hole of the guiding block.
2. Remove the needle-guided bracket:
a. Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle's tail.
9 Needle guide hole Used for installing the biopsy needle.
10 Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the probe.
