Mindray Resona R9 Exp User Manual

17 Probes and Biopsy
Operator’s Manual 17 - 41

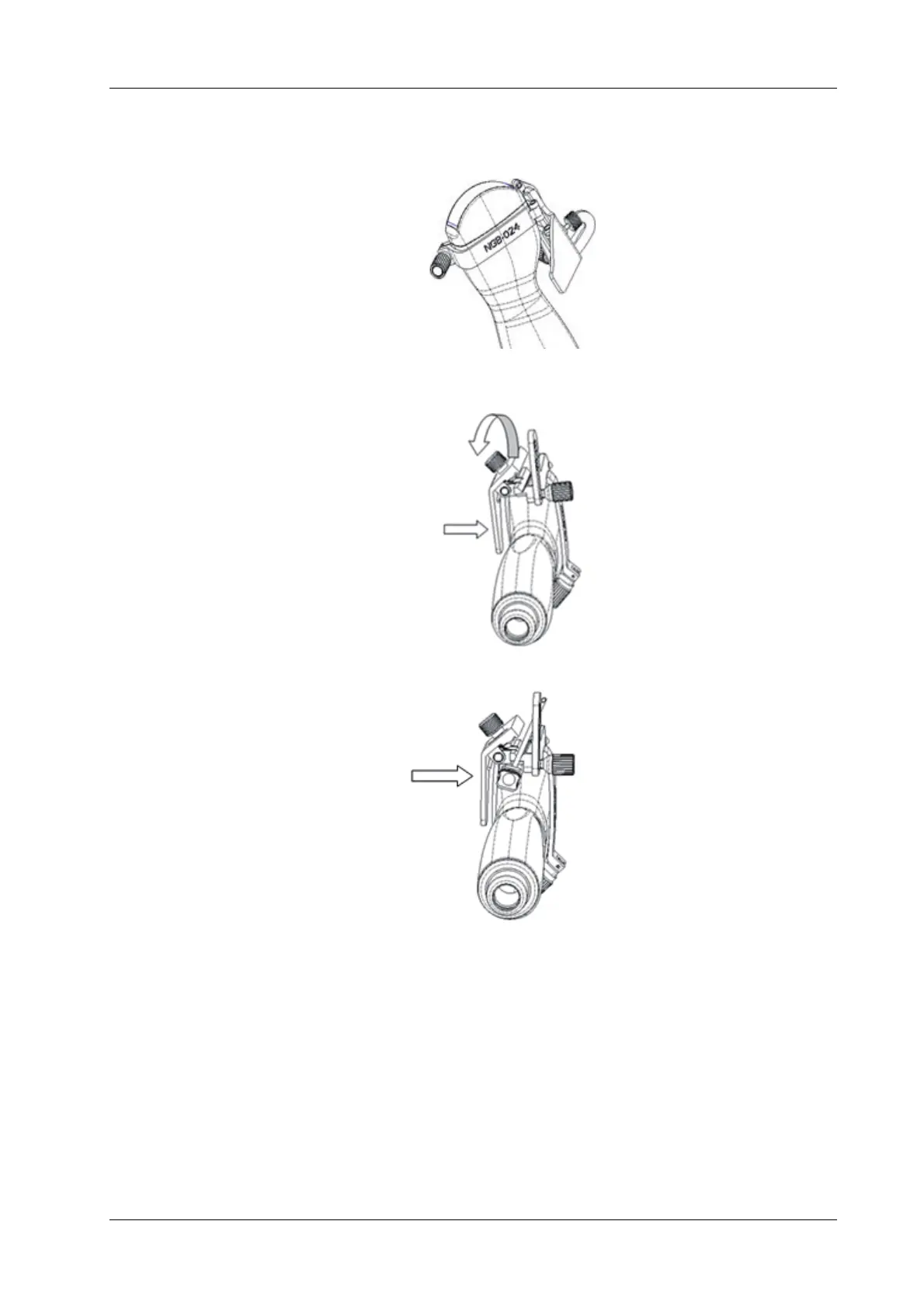

c. Rotate the clamping nuts of the guided bracket on right and left side to fix the bracket and
the transducer. Rotate the needle-type adjusting nut to the ultimate position as shown in
the figure.
d. Hold the transducer. Press the biopsy needle to separate needle guided V-shaped block
from pressure position of the needle.
e. Put the needle into the needle guided-bracket, and the needle leans to V-shaped block.
