3 - 16 Operator’s Manual
3 System Preparation
Storage Tray of Control Panel Base
Hold the storage tray of control panel base with both hands, with the U-shaped opening facing the
control panel base, make the upper edge of the storage tray lap on the control panel base, and push
it into place along the plane.
NOTE:
Keep the center of the U-shaped opening of the tray align with the center of the control panel base,
and make the upper edges of the tray lap on the control panel base.
Storage Tray of Main Unit Top Cover
Hold the two sides of the storage tray with both hands, and make the U-shaped opening facing the
base arm so that the opening in the middle of the storage tray is right above the protective cover of
the turbine. Then place the storage tray vertically to make it sleeve on the protective cover of the
turbine.

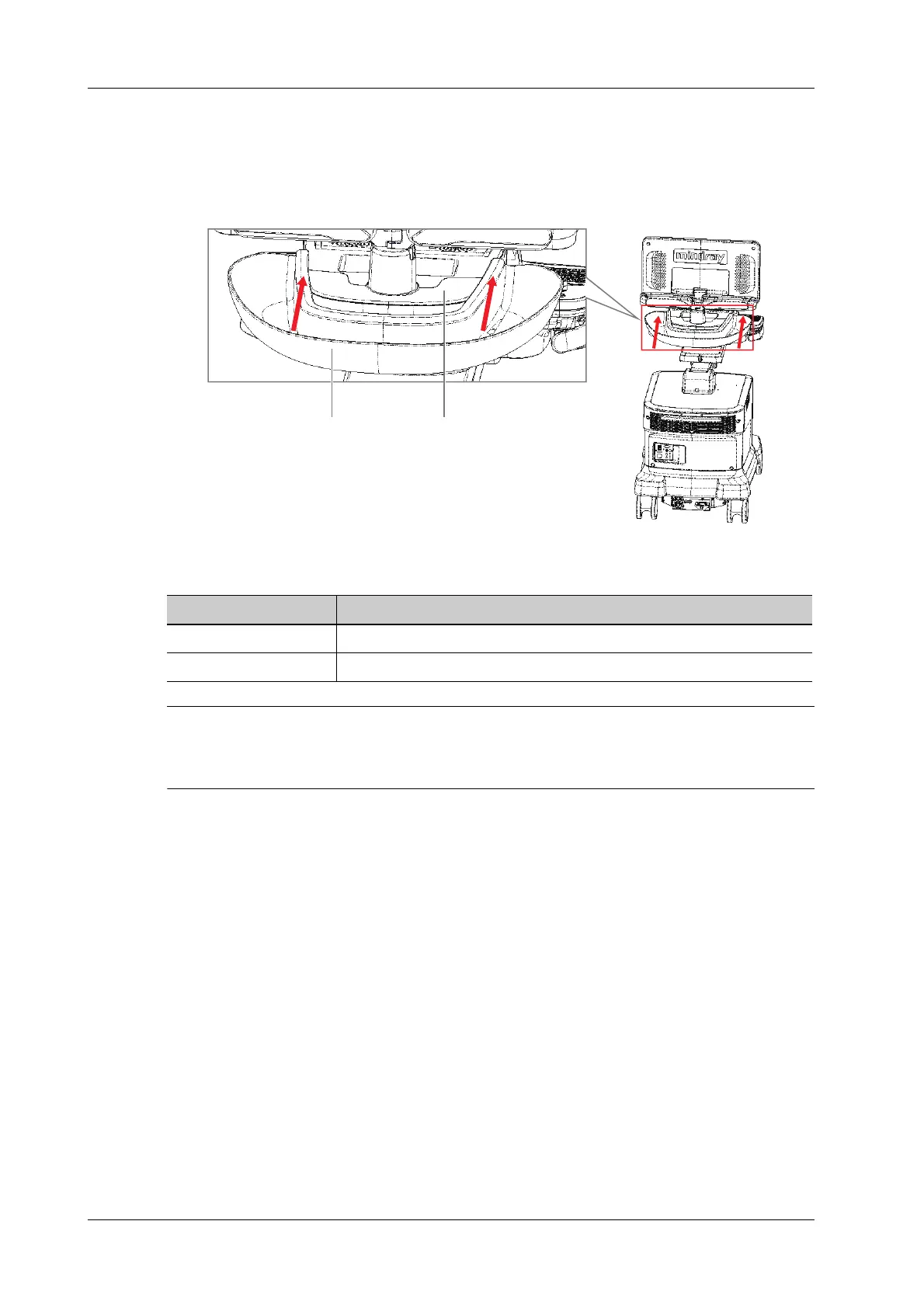

NO. Description
1. Control panel base
2. Storage tray of control panel base
