16. Interface specifications
MiR200 User Guide (en) 10/2020 - v.3.1 ©Copyright 2017-2020: Mobile Industrial Robots A/S. 165
Pin no. Voltage Max. current Description
2 Battery voltage (24 V) 3 A Starts with the robot.
3 Battery voltage (24 V) 10 A Stops by Emergency stop.
4 GND 10 A Ground.
16.2 Emergency stop
The emergency stop plug is a NEUTRIK XLR panel-mount connector with 10 contacts
(receptable).

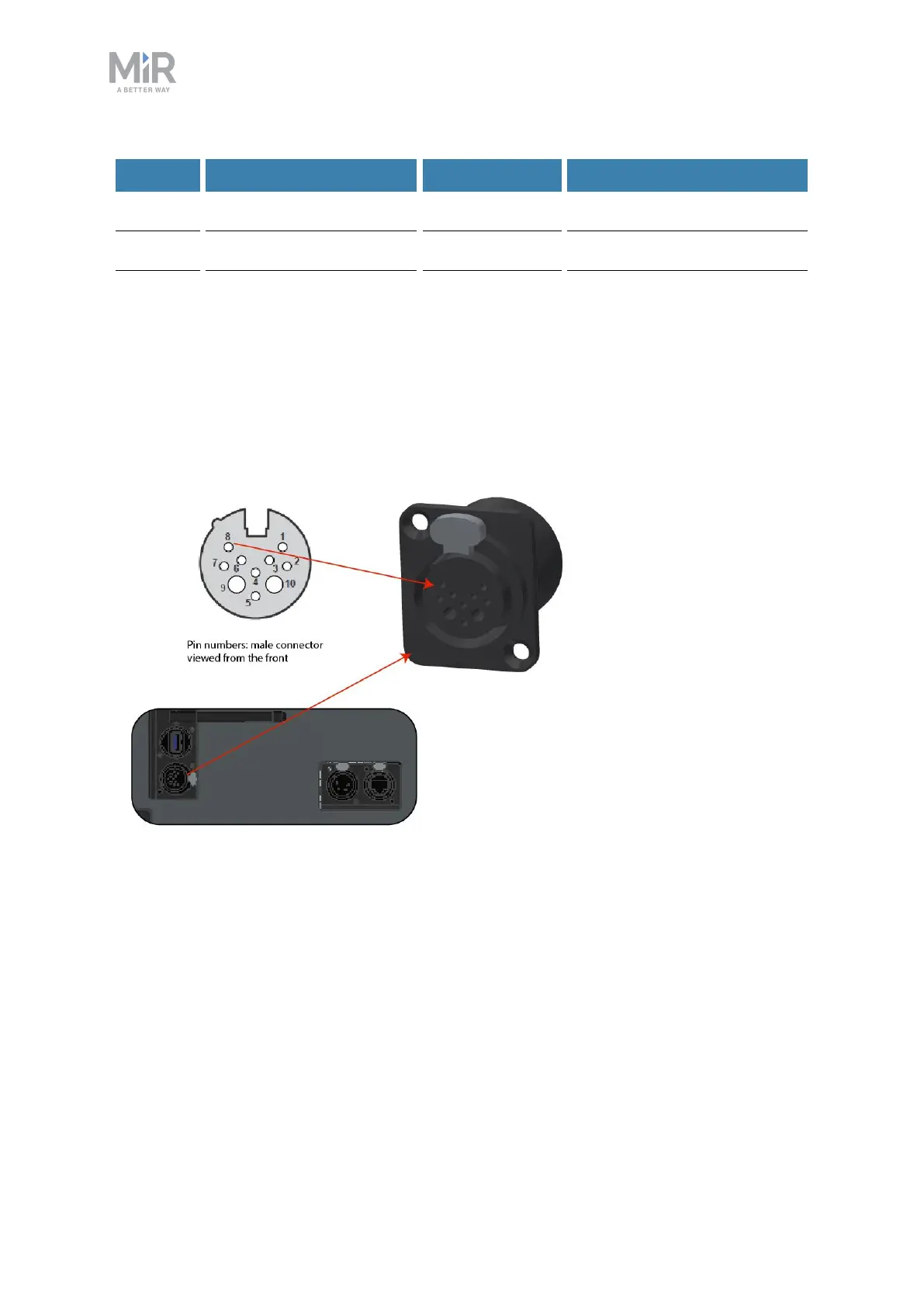

Figure 16.2. Emergency stop interface.
