Mechanical Installation and Dimensions
3.2 BB-1072 Installation

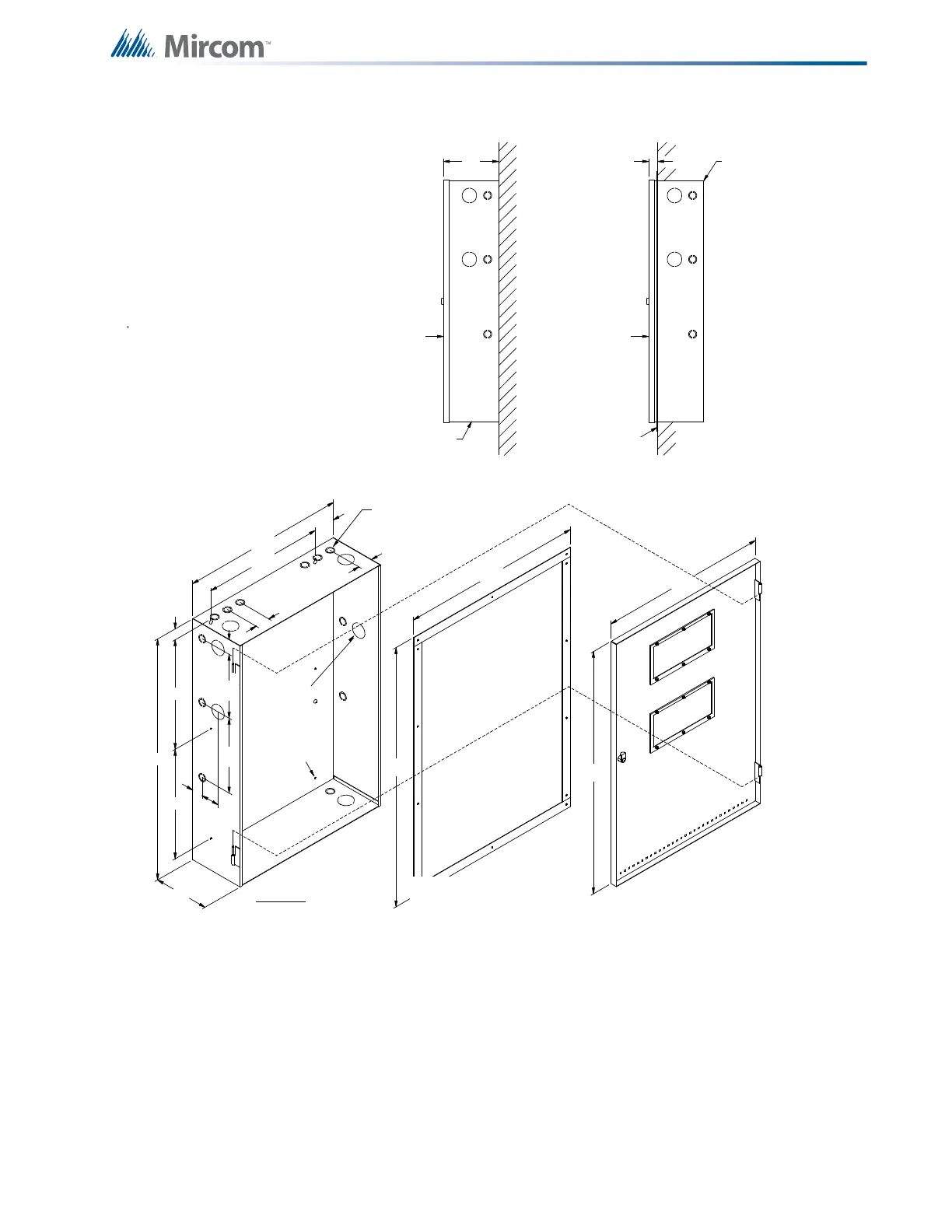

Figure 2 BB-1072 Flush or Surface Enclosure Installation and Dimensions
(SIDE VIEW)
DOOR
BACKBOX
7-9/16"
BACKBOX
FLUSH TRIM
WALL
SURFACE FLUSH
(SIDE VIEW)
DOOR
FLUSH TRIM
KNOCKOUTS
WALL
BACKBOX
16"
2"
2" TYP.
7/32" DIA.
MOUNTING
HOLE
2" SINGLE
KNOCKOUT
(MODEL FA-156TR)
15"
15"
33"
2" TYP.
MATERIAL:16GA (0.059") THICK
COLD ROLLED STEEL
FINISH: PAINTED
DOOR
1-1/2"
1-1/4"
1-1/8" & 7/8"
22-1/4"
3-1/8"
8-3/4"
10-1/4"
2-1/2"
1-1/2"
7-1/2"
35-1/2"
24-3/4"
33-1/4"
22-13/16"
FLUSH TRIM
MODE: FA-1072TR

Mircom FA-1000 SERIES Specifications

General

Brand	Mircom
Model	FA-1000 SERIES
Category	Control Panel
Language	English
