Mircom FA-1000 SERIES User Manual

41
Field Wiring
6.4 Relay Module (RM-1008A) Terminal Connections
Wire devices to terminals as shown in Figure 22 below. For more information see 6.9 Wiring
Tables and Information on page 46, 13.0 Appendix C: Specifications on page 75, and LT-1007,
Conventional Device Compatibility Guide.

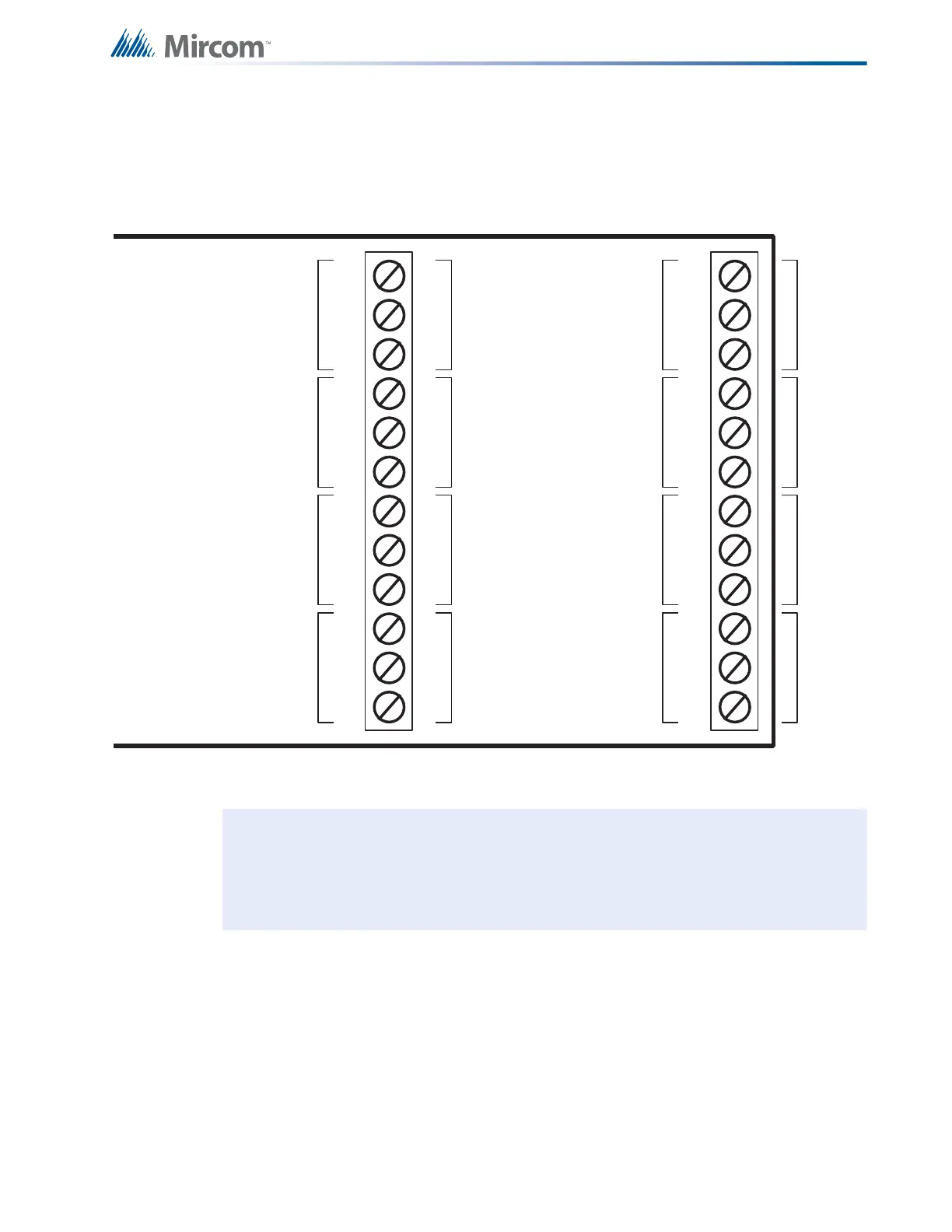

Figure 22 Relay Module Terminal Connections
Notes: All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.
All relay circuits must be connected to a listed power limited source of supply.
The terminal blocks are "depluggable" for ease of wiring.
RLY 1
AUX RELAY 1
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 2
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 3
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 4
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 8
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 7
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 6
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 5
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
RLY 2
RLY 3
RLY 4
COM
RLY 5
NO
NC
RLY 6
RLY 7
RLY 8
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
i
