Mircom FA-1000 SERIES User Manual

39
Field Wiring
6.2 Detection Module (DM-1008A) Terminal Connections
Wire devices to terminals as shown in Figure 20 below. For more information see 6.9 Wiring
Tables and Information on page 46, 13.0 Appendix C: Specifications on page 75, and LT-1007,
Conventional Device Compatibility Guide.

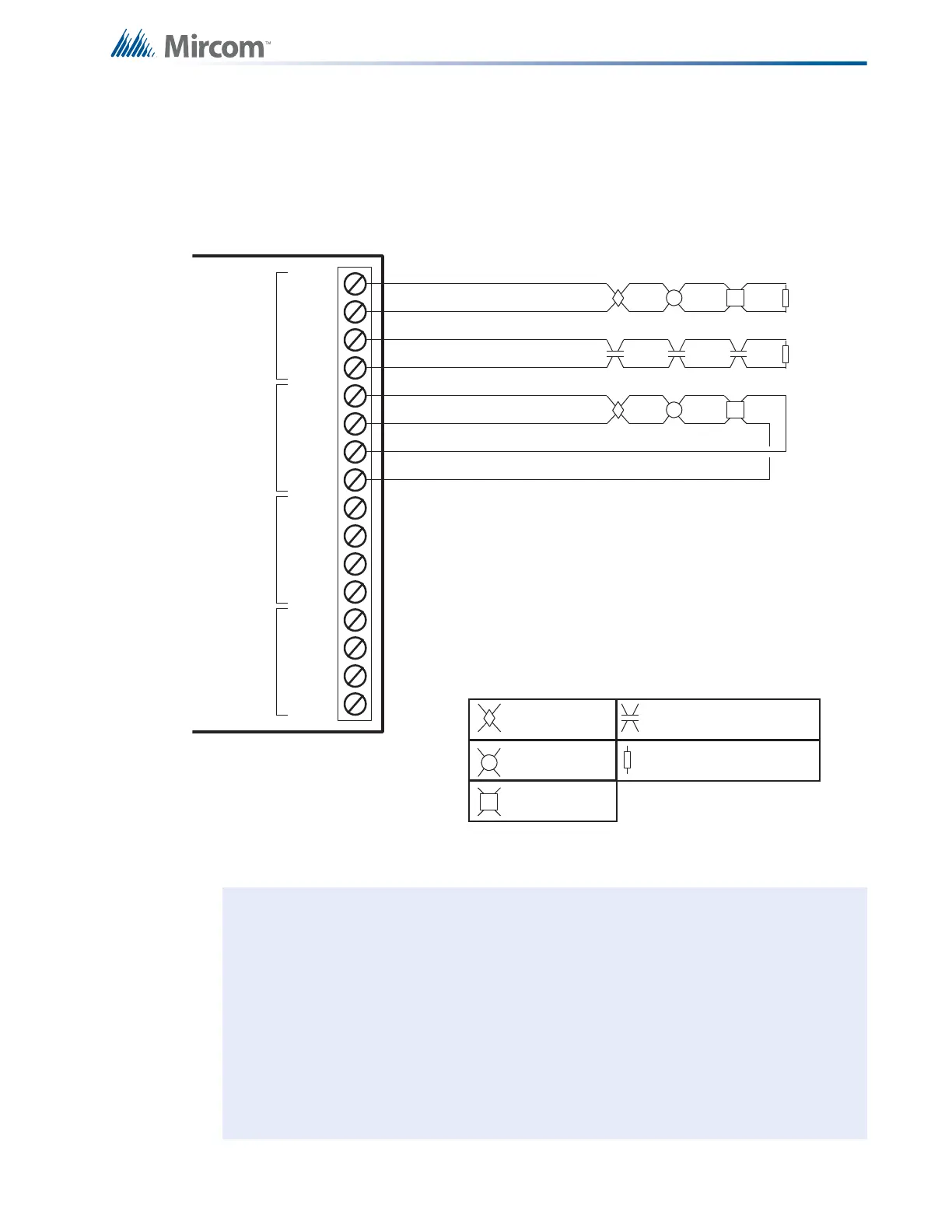

Figure 20 Detection Module (DM-1008A) Terminal Connections
Notes: Initiating circuits in an FA-1000 Series Fire Alarm Panel must all be either Class B
(Style B) or Class A (Style D). If Class A (Style D) is selected, the number of
circuits is cut in half.
All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.
Initiating circuits are fully supervised and rated for 22 VDC, 3 mA standby, 5 mV
ripple, 50 mA max alarm. They may be configured as required. The alarm
threshold is 21 mA. Maximum loop resistance is 100 ohms, 50 ohms per side.The
terminal blocks are "depluggable" for ease of wiring.
All initiating circuits are Compatibility ID "A".
SUPERVISORY OR
WATERFLOW
SWITCH (NO)
HEAT DETECTOR
LEGEND: (SEE LT-1007 FOR COMPATIBLE DEVICES)
SMOKE DETECTOR
3.9K 1/2W ELR LISTED S5434
MODEL MP-300 MANUFACTURED
BY MIRCOM
INI1+
INI1-
INI2+
INI2-
INI3+
INI3-
INI4+
INI4-
STYLE B/D
INI2
STYLE B/D
INI1
PULL STATION
STYLE B
WIRING
STYLE D NOTE: INITIATING CIRCUITS IN A SERIES 1000
MUST BE ALL EITHER STYLE B OR D.
IF STYLE D IS SELECTED, THE
NUMBER OF CIRCUITS IS CUT IN HALF.
STYLE B
WIRING
STYLE D
WIRING
SUPERVISED INITIATING CIRCUIT #2
(SUPERVISORY OR WATERFLOW ZONE)
(POWER LIMITED)
SUPERVISED INITIATING CIRCUIT #1
(ALARM ZONE) (POWER LIMITED)
SUPERVISED INITIATING CIRCUIT #2
(ALARM ZONE) SEE STYLE D NOTE (POWER LIMITED)
INI5+
INI5-
INI6+
INI6-
INI7+
INI7-
INI8+
INI8-
STYLE B/D
INI4
STYLE B/D
INI3
INITIATING CIRCUITS
5 TO 8 ARE NOT AVAIL.
ON FA-1012K.
