Mircom FA-1000 SERIES User Manual

40
Field Wiring
6.3 Signal Module (SGM-1004A) Terminal Connections
Wire devices to terminals as shown in Figure 21 below. For more information see 6.9 Wiring
Tables and Information on page 46, 13.0 Appendix C: Specifications on page 75, and LT-1007,
Conventional Device Compatibility Guide.

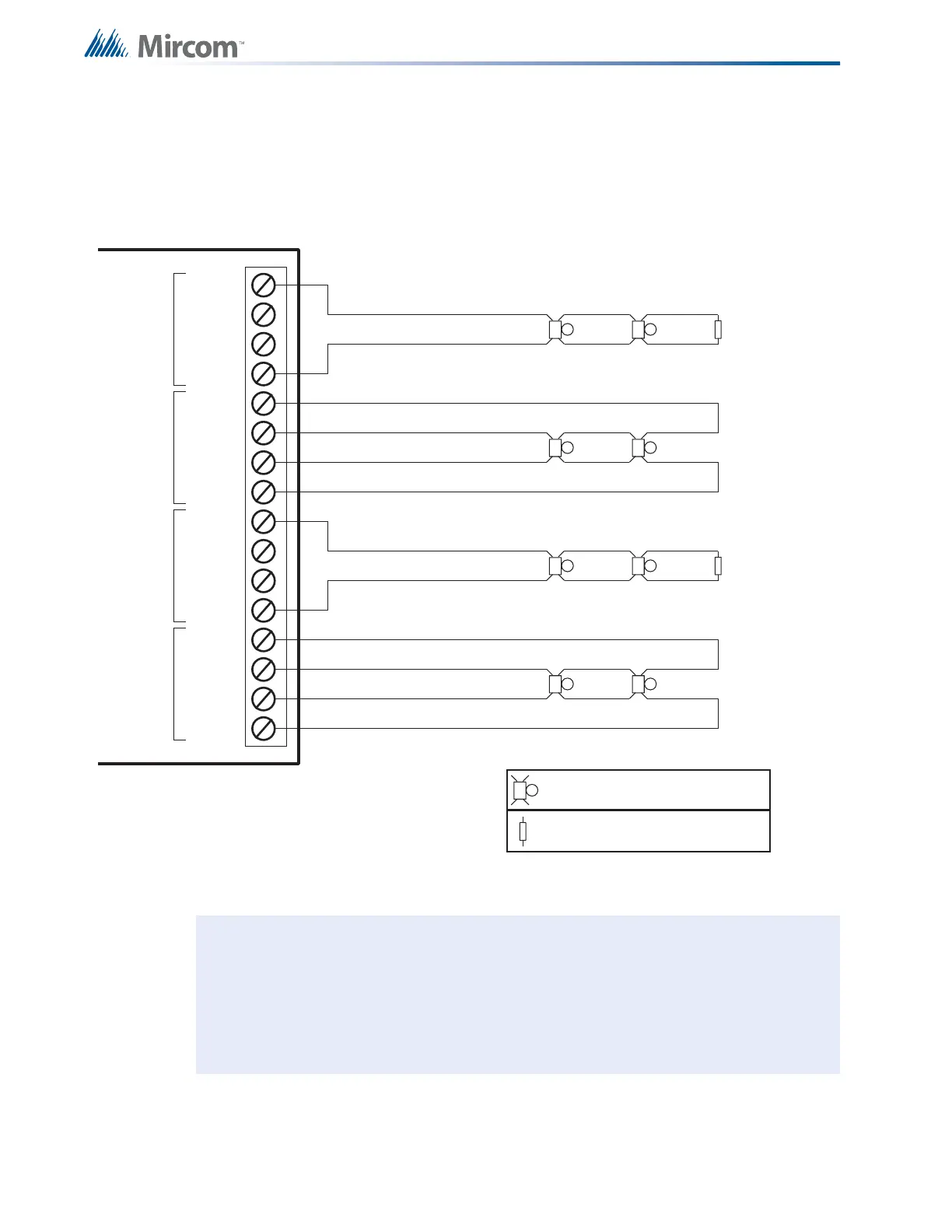

Figure 21 Signal Module (SGM-1004A) Terminal Connections
Notes: All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.
SGM-1004A indicating circuits are fully supervised and rated for 24 VDC
unfiltered, 1.70 amp max. They must be wired as shown in section 6.9 Wiring
Tables and Information on page 46.
The terminal blocks are "depluggable" for ease of wiring.
BELL, HORN, OR STROBE
LEGEND: (SEE LT-1007 FOR COMPATIBLE DEVICES)
3.9K 1/2W ELR LISTED S5434
MODEL MP-300 MANUFACTURED
BY MIRCOM
IND2+ (Z)
IND2- (Z)
IND2- (Y/Z)
SUPERVISED INDICATING CIRCUIT #2
INDICATION
CIRCUIT 1
(POWER
LIMITED)
IND1+ (Z)
STYLE Z
WIRING
IND1- (Y/Z)
IND1+ (Y/Z)
IND2+ (Y/Z)
IND1- (Z)
INDICATION
CIRCUIT 2
(POWER
LIMITED)
STYLE Y
WIRING
SUPERVISED INDICATING CIRCUIT #1
IND4+ (Z)
IND4- (Z)
IND4- (Y/Z)
SUPERVISED INDICATING CIRCUIT #4
INDICATION
CIRCUIT 3
(POWER
LIMITED)
IND3+ (Z)
STYLE Z
WIRING
IND3- (Y/Z)
IND3+ (Y/Z)
IND4+ (Y/Z)
IND3- (Z)
INDICATION
CIRCUIT 4
(POWER
LIMITED)
STYLE Y
WIRING
SUPERVISED INDICATING CIRCUIT #3
