SECTION MITL9105/9110-096-350-NA
START
T
(1A) Unlock and open the front door
(18) Remove the card retaining bar

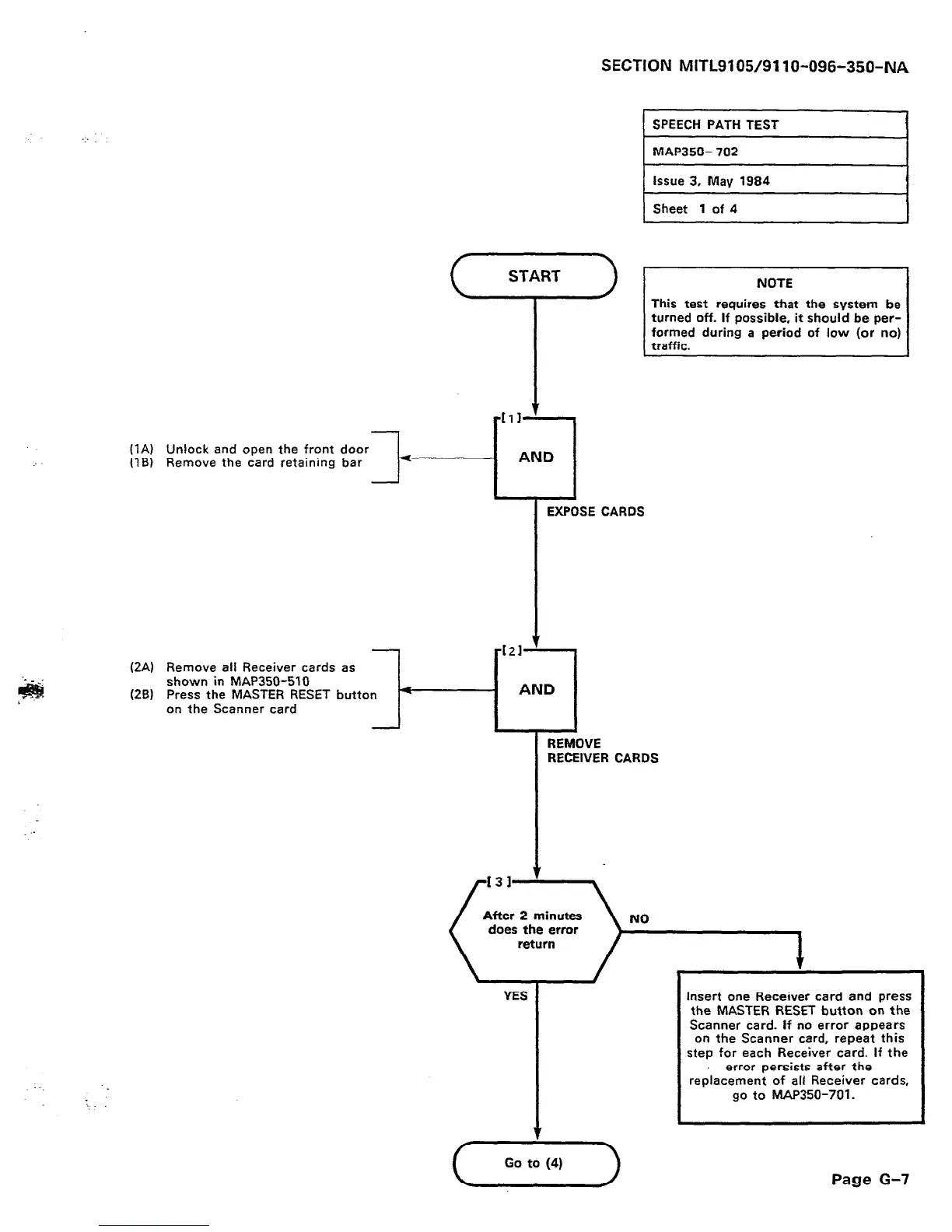

SPEECH PATH TEST
MAPJSCI- 702
Issue 3, May 1984
Sheet 1 of 4
NOTE
This test requires that the system be
turned off. If possible, it should be per-
formed during a period of low (or no)
traffic.
EXPOSE CARDS EXPOSE CARDS
421 421 '
t
(2A) Remove all Receiver cards as (2A) Remove all Receiver cards as
shown in MAP350-510 shown in MAP350-510
(281 Press the MASTER RESET button (281 Press the MASTER RESET button * *
. AND . AND
on the Scanner card on the Scanner card
REMOVE REMOVE
RECEIVER CARDS RECEIVER CARDS
After 2 minutes After 2 minutes
does the error does the error
YES Insert one Receiver card and press
the MASTER RESET button on the
Scanner card. If no error appears
on the Scanner card, repeat this
step for each Receiver card. If the
error persists after the
replacement of all Receiver cards,
go
to
MAP350-701.
