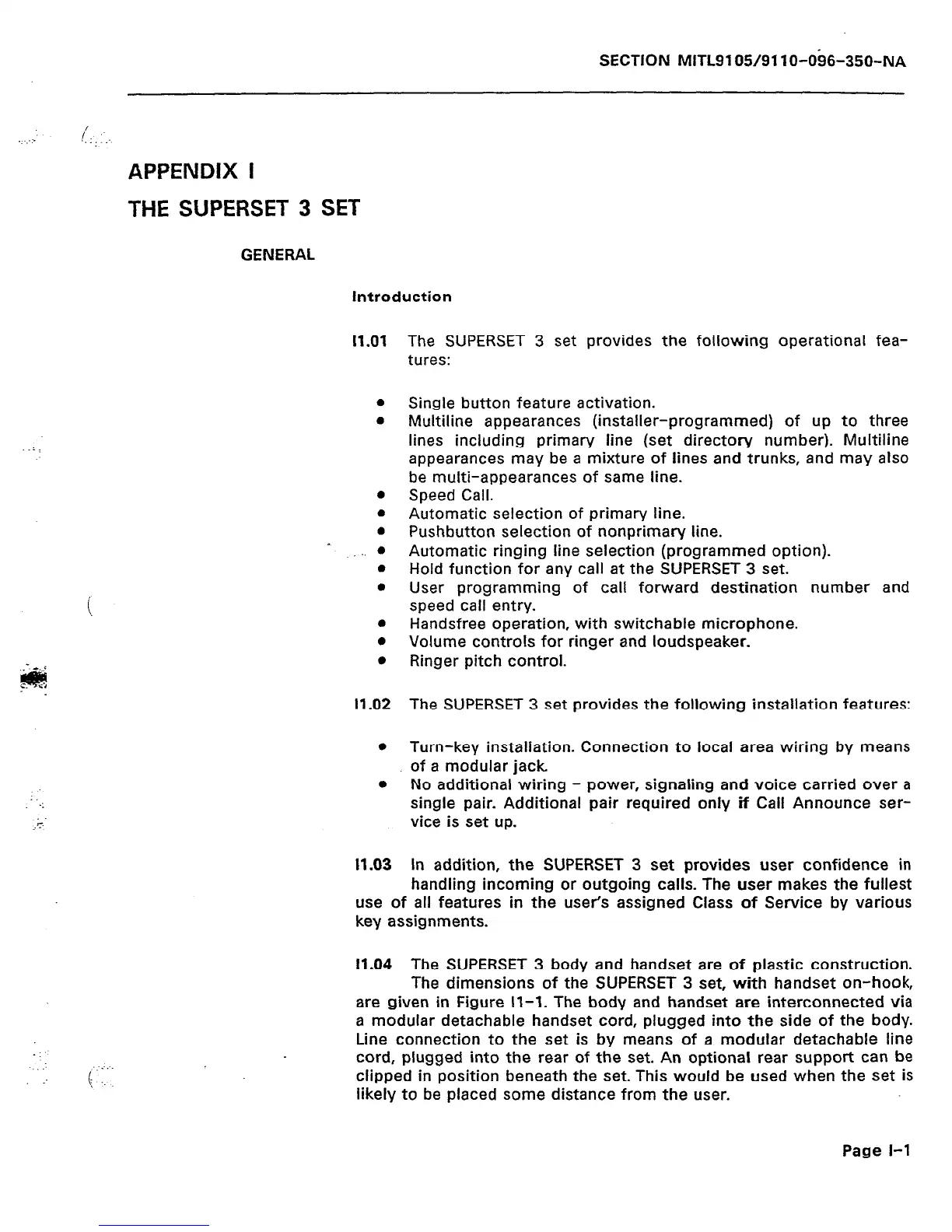

SECTION MITL9105/911 O-Ob6-350-NA
_ .:.
i: :.
APPENDIX I
THE SUPERSET 3 SET
GENERAL
Introduction
:
t. . .
11.01
a
a
l
0
0
,., 0
l
0
0
0
0
II.02
0
0
il.03
The SUPERSET 3 set provides the following operational fea-
tures:
Single button feature activation.
Multiline appearances (installer-programmed) of up to three
lines including primary line (set directory number). Multiline
appearances may be a mixture of lines and trunks, and may also
be multi-appearances of same line.
Speed Call.
Automatic selection of primary line.
Pushbutton selection of nonprimary line.
Automatic ringing line selection (programmed option).
Hold function for any call at the SUPERSET 3 set.
User programming of call forward destination number and
speed call entry.
Handsfree operation, with switchable microphone.
Volume controls for ringer and loudspeaker.
Ringer pitch control.
The SUPERSET 3 set provides the following installation features:
Turn-key installation. Connection to local area wiring by means
of a modular jack
No additional wiring - power, signaling and voice carried over a
single pair. Additional pair required only if Call Announce ser-
vice is set up.
In addition, the SUPERSET 3 set provides user confidence in
handling incoming or outgoing calls. The user makes the fullest
use of all features in the user’s assigned Class of Service by various
key assignments.
11.04 The SUPERSET 3 body and handset are of plastic construction.
The dimensions of the SUPERSET 3 set, with handset on-hook,
are given in Figure 11-l. The body and handset are interconnected via
a modular detachable handset cord, plugged into the side of the body.
Line connection to the set is by means of a modular detachable line
cord, plugged into the rear of the set. An optional rear support can be
clipped in position beneath the set. This would be used when the set is
likely to be placed some distance from the user.
Page l-l
