3 CONNECTORS USED FOR ROTARY SERVO MOTOR WIRING
3.3 Wiring connectors (connector configurations B/C/D/E)
31
3
*1 "_" in the model names are replaced with the following symbols which designate the materials of the rubber bushing for the cable
clamps:
Blank: nitrile rubber
CR: chloroprene rubber
EPDM: terpolymer rubber of ethylene, propylene, and dimethylene
*2 The connector to be mated.
Connector
configuration
Feature Plug (JAE) Cable clamp (JAE) Rotary servo
motor-side
connector
*2
Type Connector Model
*1
Cable OD [mm]
(reference)
DIP67
EN
compliant
One-touch
connection type
Straight
JL10-6A18-10SE-EB
Applicable wire size: 3.5 mm
2
(AWG 12) or less
JL04-18CK(10)-_-R 8 to 11 JL10-2E18-10PCE
JL04-18CK(13)-_-R 11 to 14.1
One-touch
connection type
Angle
JL10-8A18-10SE-EB
Applicable wire size: 3.5 mm
2
(AWG 12) or less
JL04-18CK(10)-_-R 8 to 11
JL04-18CK(13)-_-R 11 to 14.1
Screw type
Straight
JL04V-6A18-10SE-EB-R
Applicable wire size: 3.5 mm
2
(AWG 12) or less
JL04-18CK(10)-_-R 8 to 11
JL04-18CK(13)-_-R 11 to 14.1
Screw type
Angle
JL04V-8A18-10SE-EBH-R
Applicable wire size: 3.5 mm
2
(AWG 12) or less
JL04-18CK(10)-_-R 8 to 11
JL04-18CK(13)-_-R 11 to 14.1

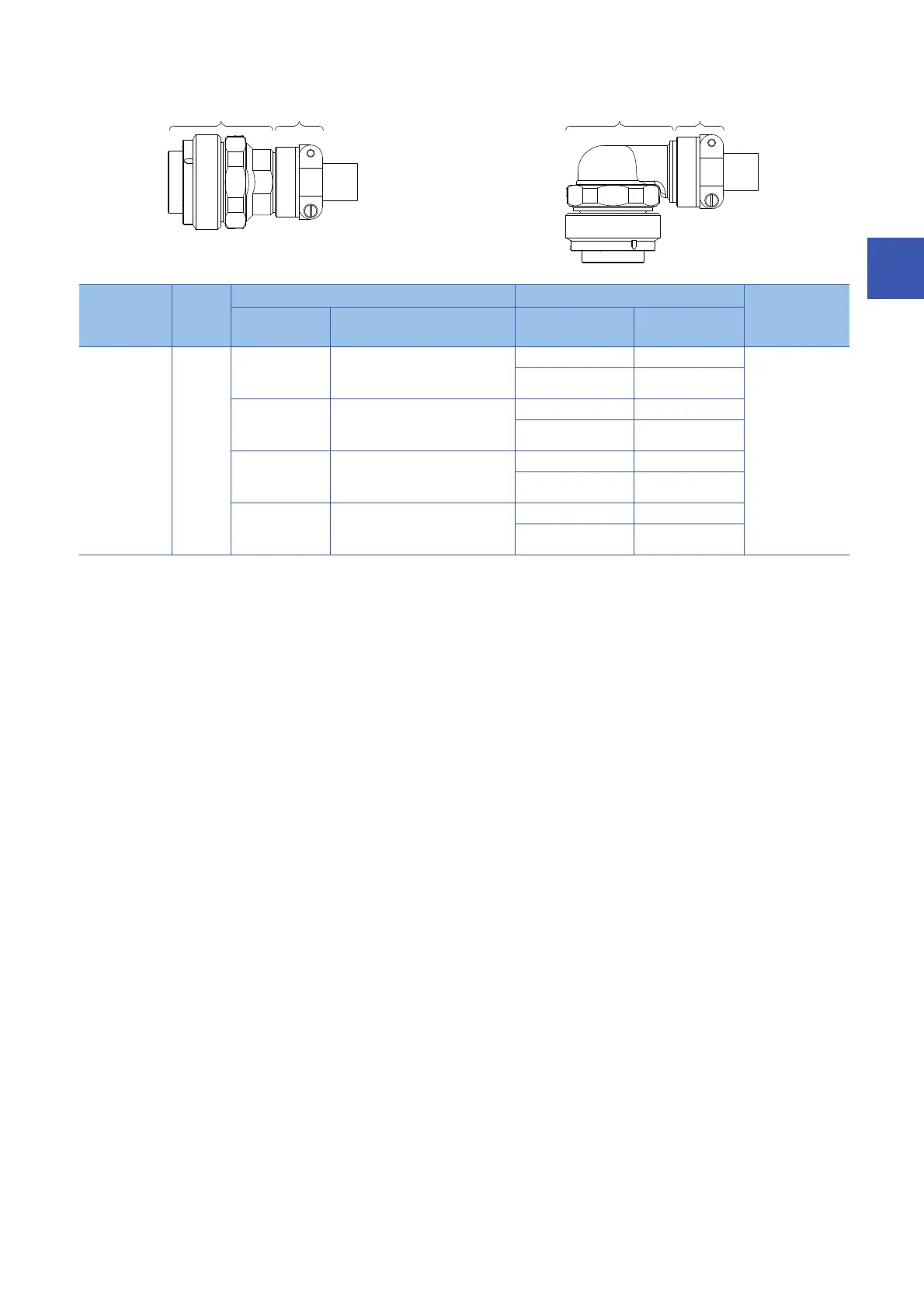

Cable clampCable clamp Angle plug
Straight plug
