Mitsubishi 4G1 series General Information

4G1 ENGINE (E-W) -
Oil Pump and Oil Pan
11A-10-1b
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

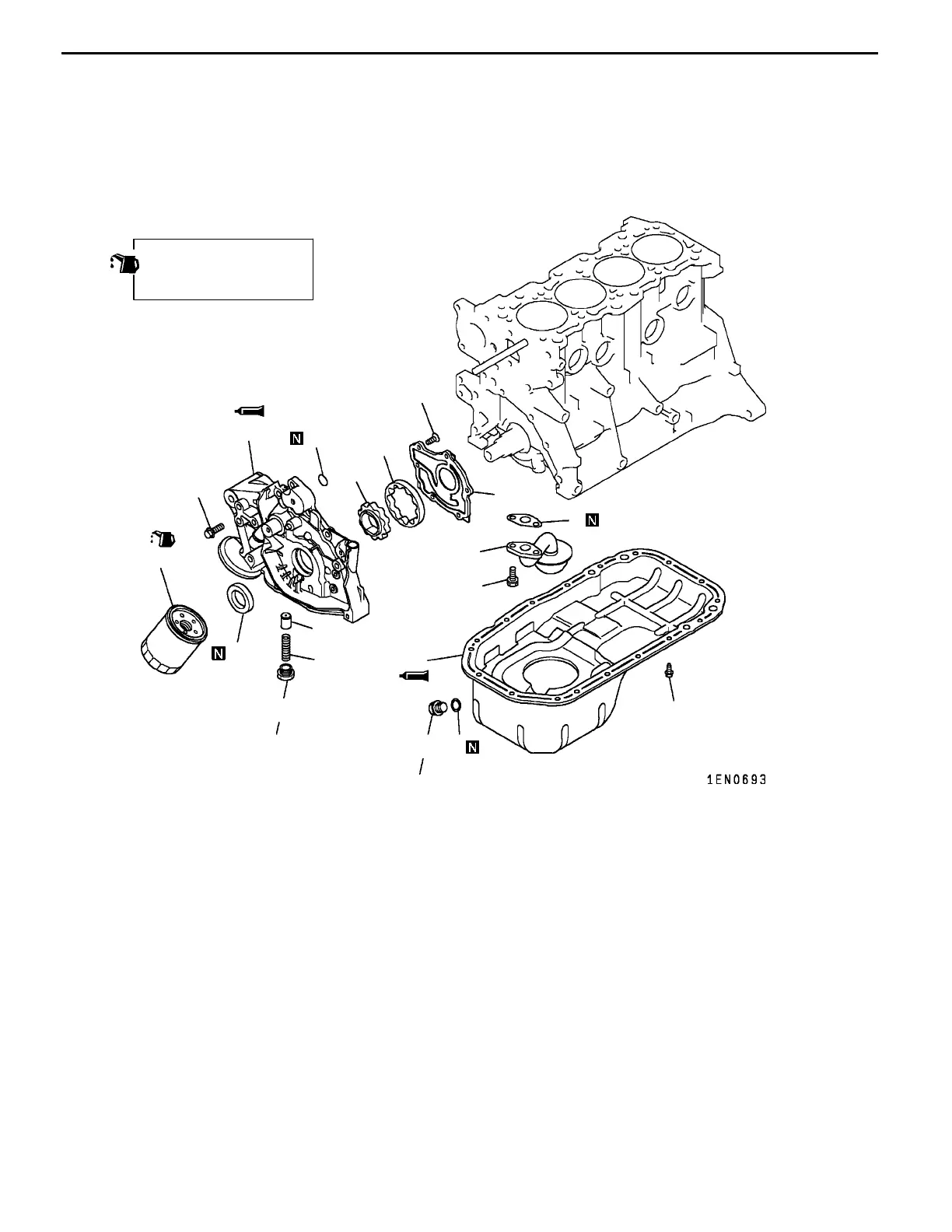

REMOVAL AND INSTALLATION <GDI>
11
1
12
14
13
15
10
9
8
6
5
7
2
3
10 Nm
14 Nm
44 Nm
19 Nm
7Nm
4
39 Nm
Apply engine oil to all
moving parts before
installation.
Removal steps
"
F
A
1. Oil filter
2. Drain plug
"
D
A
3. Gasket
A
A
""
C
A
4. Oil pan
5. Oil screen
6. Gasket
7. Relief valve
8. Relief valve spring
9. Relief plunger
"
B
A
10. Oil seal
"
A
A
11. Front case
12. O-ring
13. Oil pump cover
14. Outer rotor
15. Inner rotor
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Added
