4G1 ENGINE (E–W) – Timing Belt
11A-4-1a
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

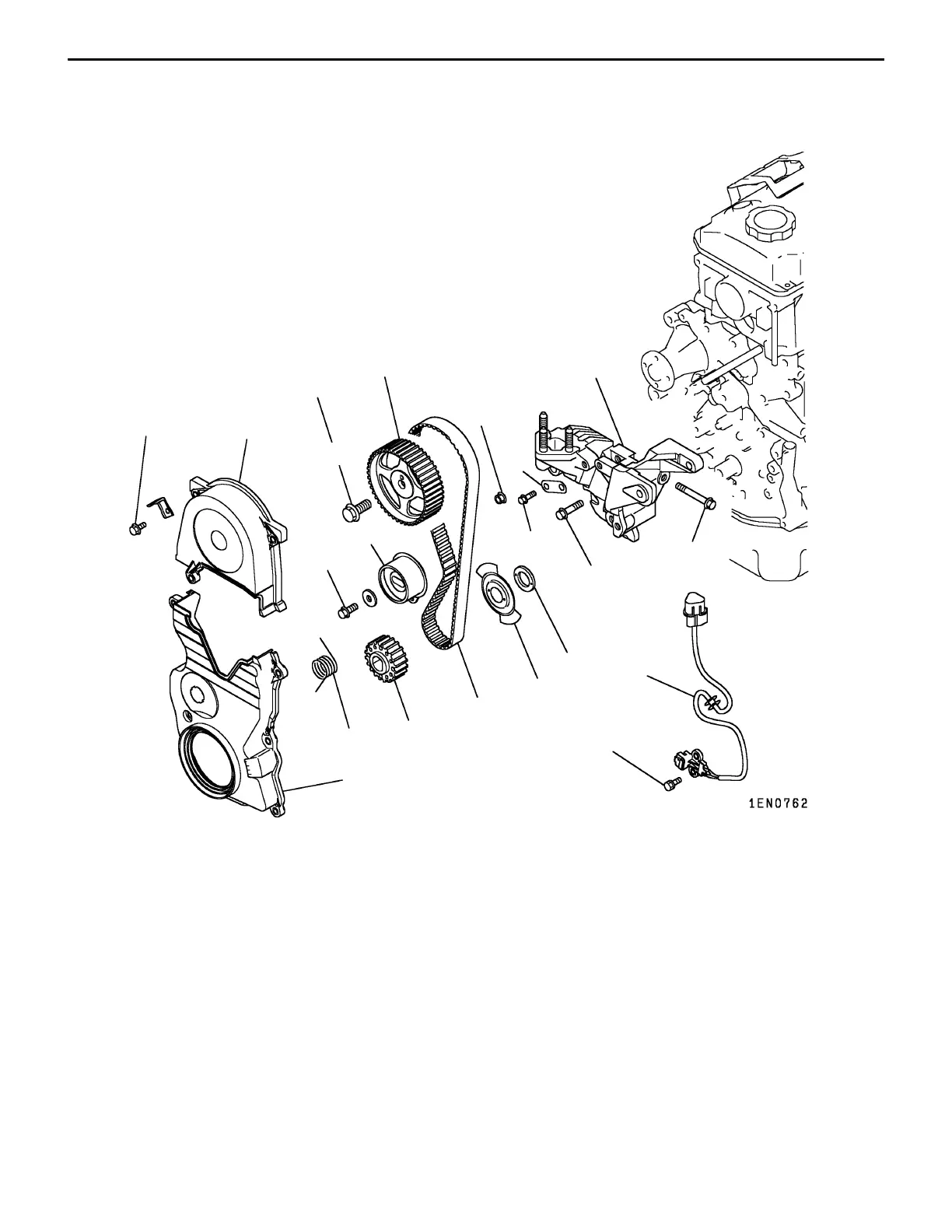

REMOVAL AND INSTALLATION <SOHC – Without timing belt rear cover>
11 Nm
1
12
21 Nm
4
3
7
2
5
23 Nm
88 Nm
11
9
8
9 Nm
13
6
10
35 Nm
35 Nm
21 Nm
Removal steps
1. Timing belt upper cover
2. Timing belt lower cover
AA""DA 3. Timing belt
"CA 4. Tensioner spring
"CA 5. Timing belt tensioner
6. Crankshaft angle sensor
<Without Distributor>
"BA 7. Crankshaft sprocket
"BA 8. Spacer <Without Distributor>
"BA 9. Sensing blade <Without Distributor>
AB""AA 10. Camshaft sprocket bolt
11. Camshaft sprocket
12. Bracket
13. Engine support bracket
