Mitsubishi 4G1 series General Information

4G1 ENGINE (E–W) – Timing Belt
11A-4-1b
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

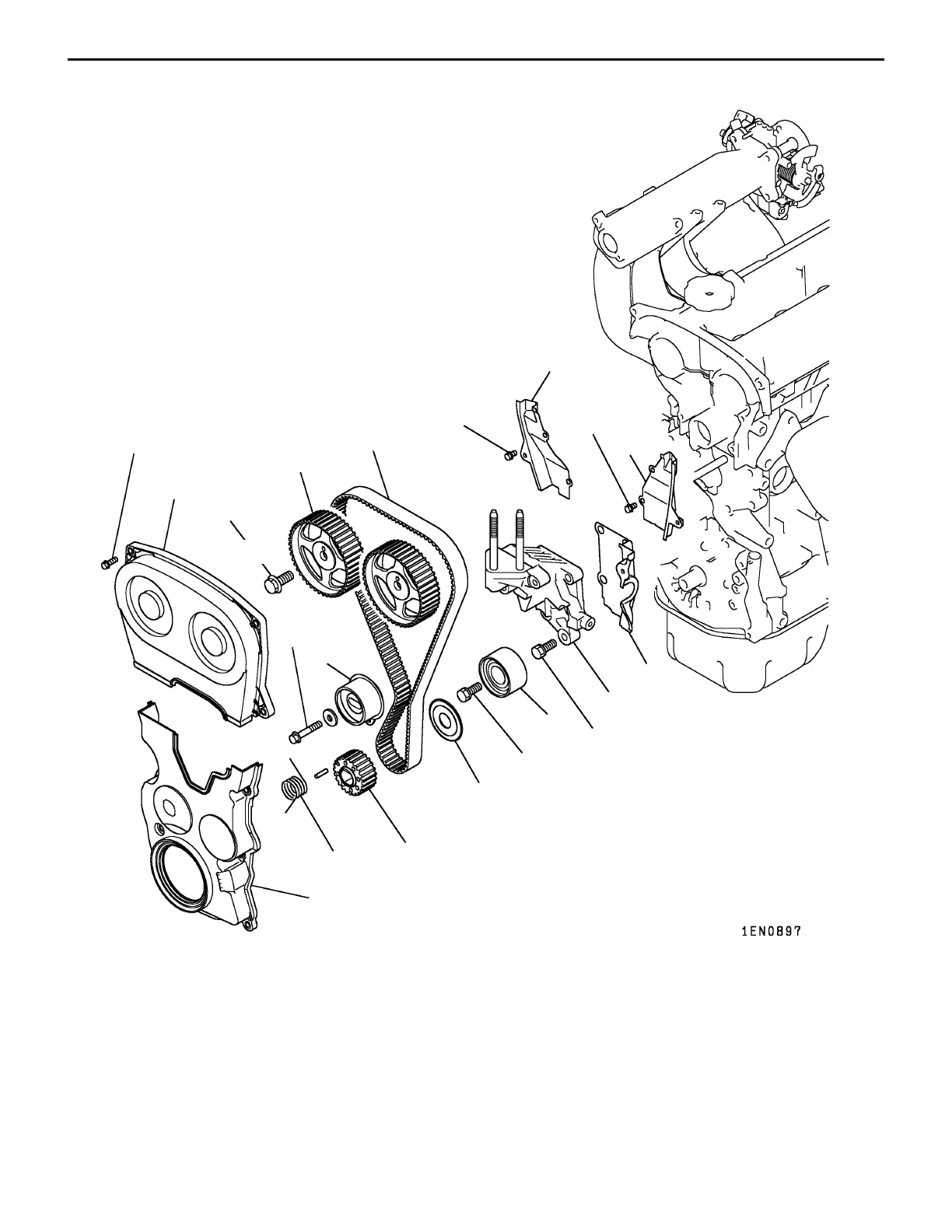

REMOVAL AND INSTALLATION <DOHC>
11 Nm
1
8
10
11
35 Nm
4
3
6
2
5
23 Nm
88 Nm
9
35 Nm
11
14
13
11 Nm
11 Nm
12
7
Removal steps
1. Timing belt upper cover
2. Timing belt lower cover
AA""EA 3. Timing belt
AA""CA 4. Tensioner spring
AA""CA 5. Timing belt tensioner
6. Idler pulley
"BA 7. Crankshaft sprocket
"BA 8. Flange
AB""AA 9. Camshaft sprocket bolt
10. Camshaft sprocket
11. Engine support bracket
12. Timing belt rear cover (lower)
13. Timing belt rear cover (right)
14. Timing belt rear cover (left)
PWEE9520-E
E
Feb. 2001Mitsubishi Motors Corporation Revised
