4G1 ENGINE (E–W) – Fuel and Emission Control Systems
11A-5-2
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

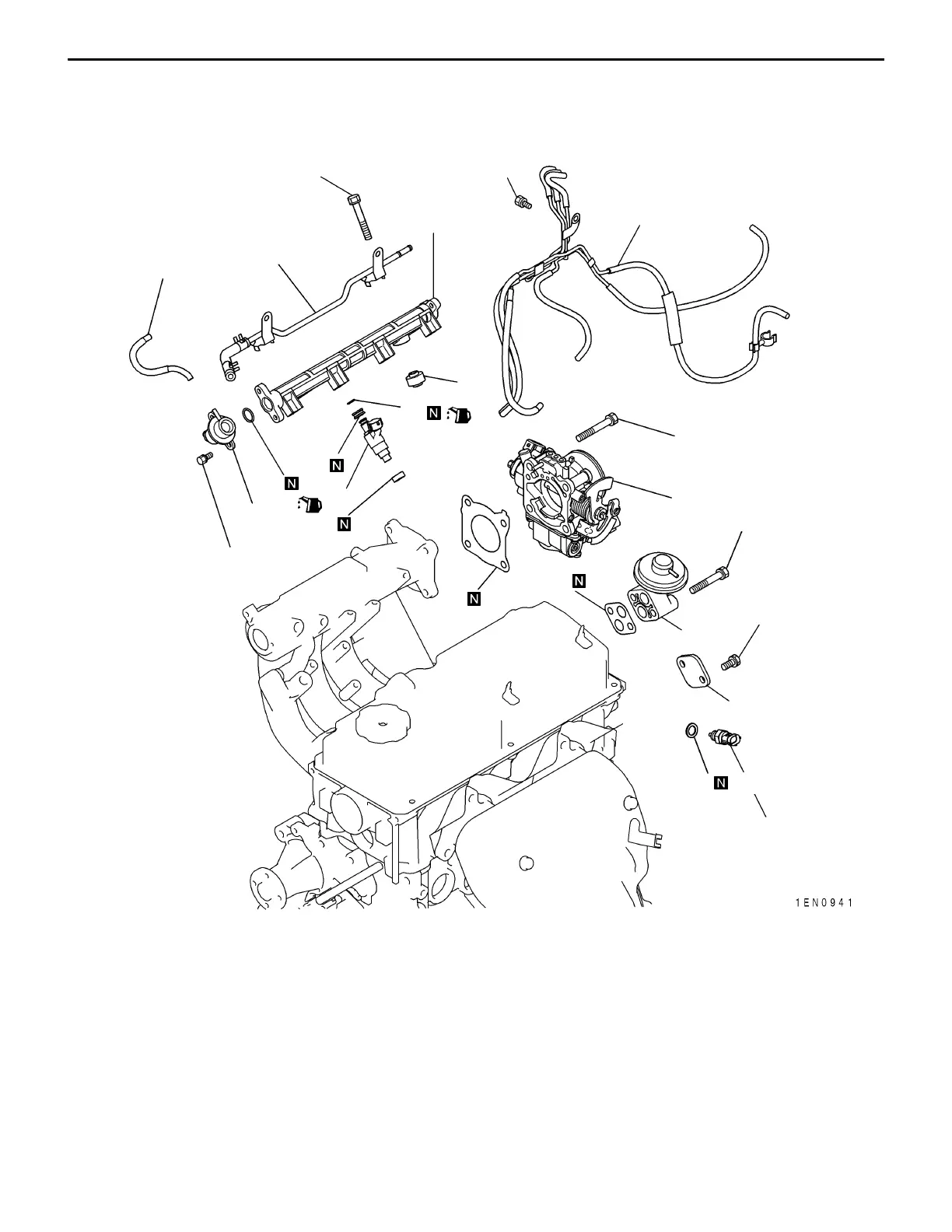

REMOVAL AND INSTALLATION <SOHC–MPI – FRONT WHEEL DRIVE (EXCEPT
FROM 2001 model FOR EUROPE)>
11 Nm
21 Nm
18 Nm
9 Nm
1
3
13
6
2
5
9
10
8
7
18
14
16
M8 × 16 18 Nm
Except M8 × 16 12 Nm
15
4
18 Nm
17
11
12
9 Nm
Removal steps
1. Vacuum pipe and hose assembly
2. Vacuum hose assembly
3. Throttle body assembly
4. Gasket
5. Fuel return pipe
"BA 6. Fuel pressure regulator
7. O-ring
8. Insulator
9. Insulator
"AA 10. Injector
11. O-ring
12. Grommet
13. Delivery pipe
14. EGR valve (With EGR valve)
15. Cover (Without EGR valve)
16. Gasket
17. Air temperature sensor (Up to
2000 model)
18. Gasket (Up to 2000 model)
