4G1 ENGINE (E–W) – Fuel and Emission Control Systems
11A-5-2a
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
REMOVAL AND INSTALLATION <SOHC–MPI – FRONT WHEEL DRIVE (FROM
2001 model FOR EUROPE)>
11 Nm
18 Nm
21 Nm
9 Nm
1
3
11
6
4
5
9
10
8
7
13
12
9 Nm
2

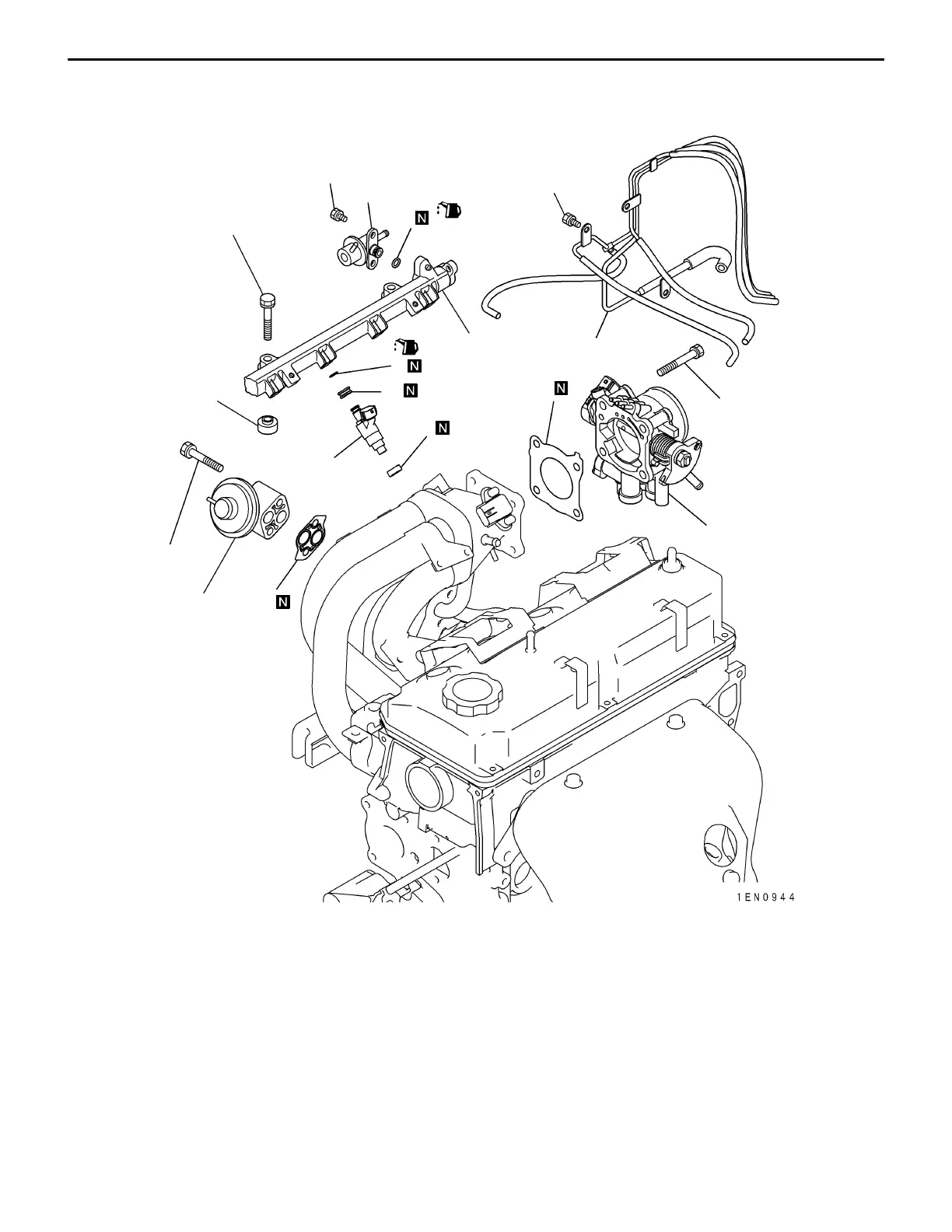

Removal steps
1. Vacuum pipe and hose
2. Throttle body assembly
3. Gasket
"BA 4. Fuel pressure regulator
5. O-ring
6. Insulator
7. Insulator
"AA 8. Injector
9. O-ring
10. Grommet
11. Delivery pipe
12. EGR valve
13. Gasket
