4G1 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8-1a
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation

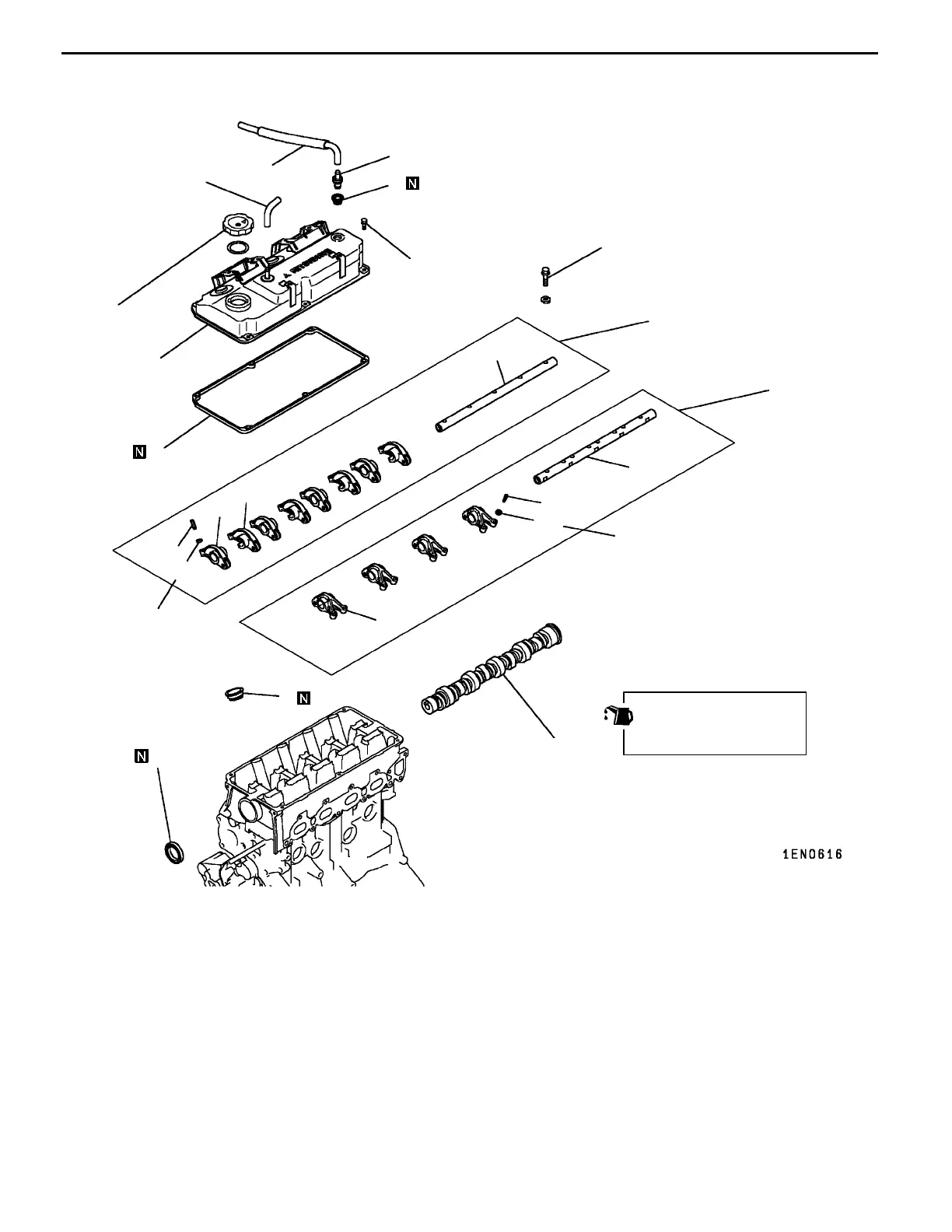

REMOVAL AND INSTALLATION <SOHC 16-VALVE (With Adjusting screw)>
3.5 Nm
9Nm
31 Nm
1
2
3
4
5
6
10
11
12
13
14
15
16
17
18
19
20
21
9Nm
Apply engine oil to all
moving parts before
installation.
9
8
7
Removal steps
1. Breather hose
2. P.C.V. hose
3. Oil filler cap
4. P.C.V. valve
5. P.C.V. valve gasket
6. Rocker cover
7. Rocker cover gasket
8. Oil seal
"
F
A
9. Oil seal
"
E
A
10. Rocker arms and rocker arm shaft,
intake
"
E
A
11. Rocker arms and rocker arm shaft,
exhaust
12. Rocker arm A
13. Rocker arm B
"
D
A
14. Rocker arm shaft
"
C
A
15. Adjusting screw
16. Nut
17. Rocker arm C
"
D
A
18. Rocker arm shaft
"
C
A
19. Adjusting screw
20. Nut
21. Camshaft
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Revised
