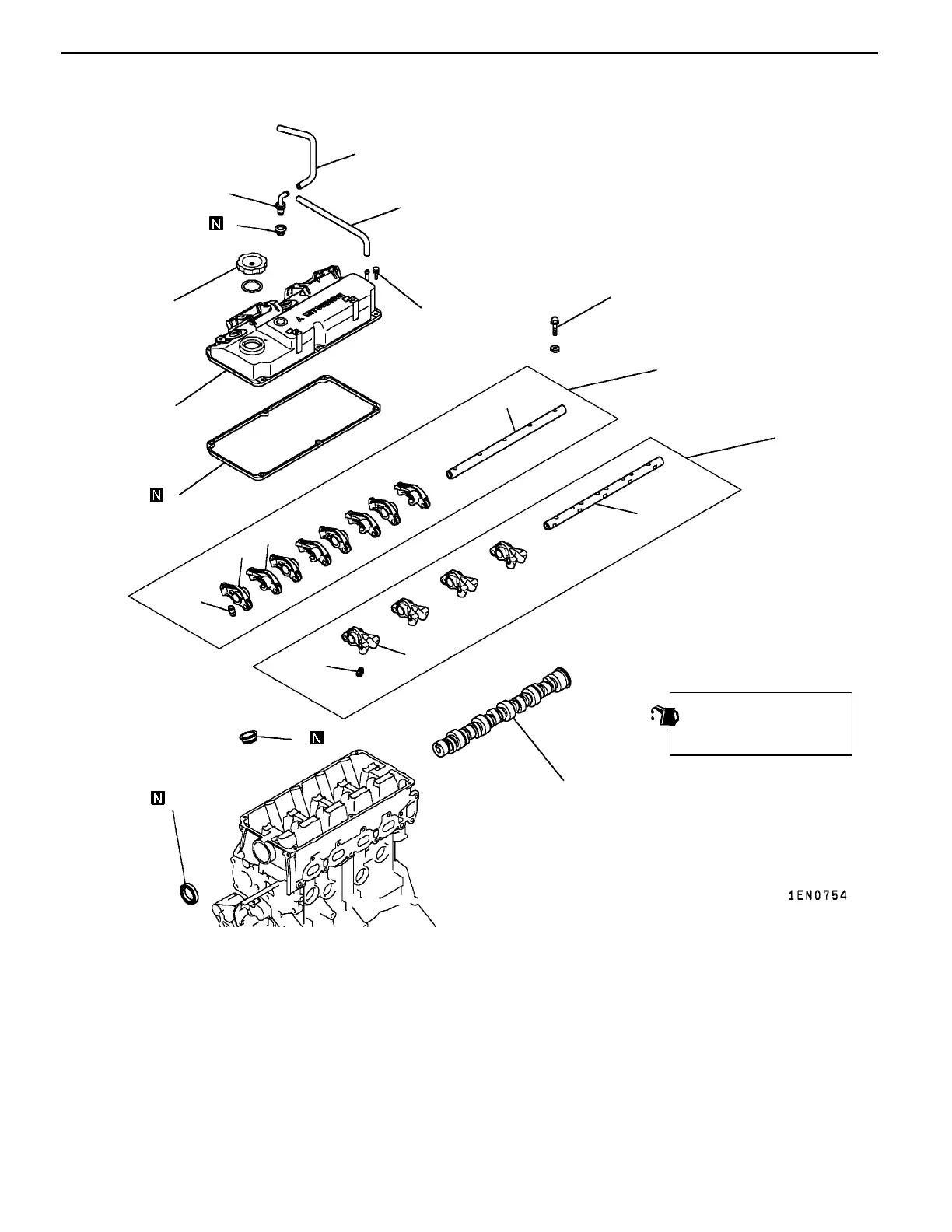

REMOVAL AND INSTALLATION <SOHC 16-VALVE (With Lash adjuster)>
3.5 Nm
31 Nm
1
2
3
4
5
6
10
11
12
13
14
15
16
Apply engine oil to all
moving parts before
installation.
7
9
8
19
18
17
Removal steps
1. Breather hose
2. P.C.V. hose
3. Oil filler cap
4. P.C.V. valve
5. P.C.V. valve gasket
6. Rocker cover
7. Rocker cover gasket
8. Oil seal
"
F
A
9. Oil seal
A
A
""
E
A
10. Rocker arms and rocker arm shaft,
intake
A
A
""
E
A
11. Rocker arms and rocker arm shaft,
exhaust
12. Rocker arm A
13. Rocker arm B
"
D
A
14. Rocker arm shaft
"
I
A
15. Lash adjuster
16. Rocker arm C
"
D
A
17. Rocker arm shaft
"
I
A
18. Lash adjuster
19. Camshaft
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Revised
