Mitsubishi 4G1 series

4G1 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8-2
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
REMOVAL AND INSTALLATION <DOHC>
24 Nm
1
2
3
5
4
6
7
9
11
12
13
14
15
11 Nm
10
8
Apply engine oil to all
moving parts before
installation.
4Nm

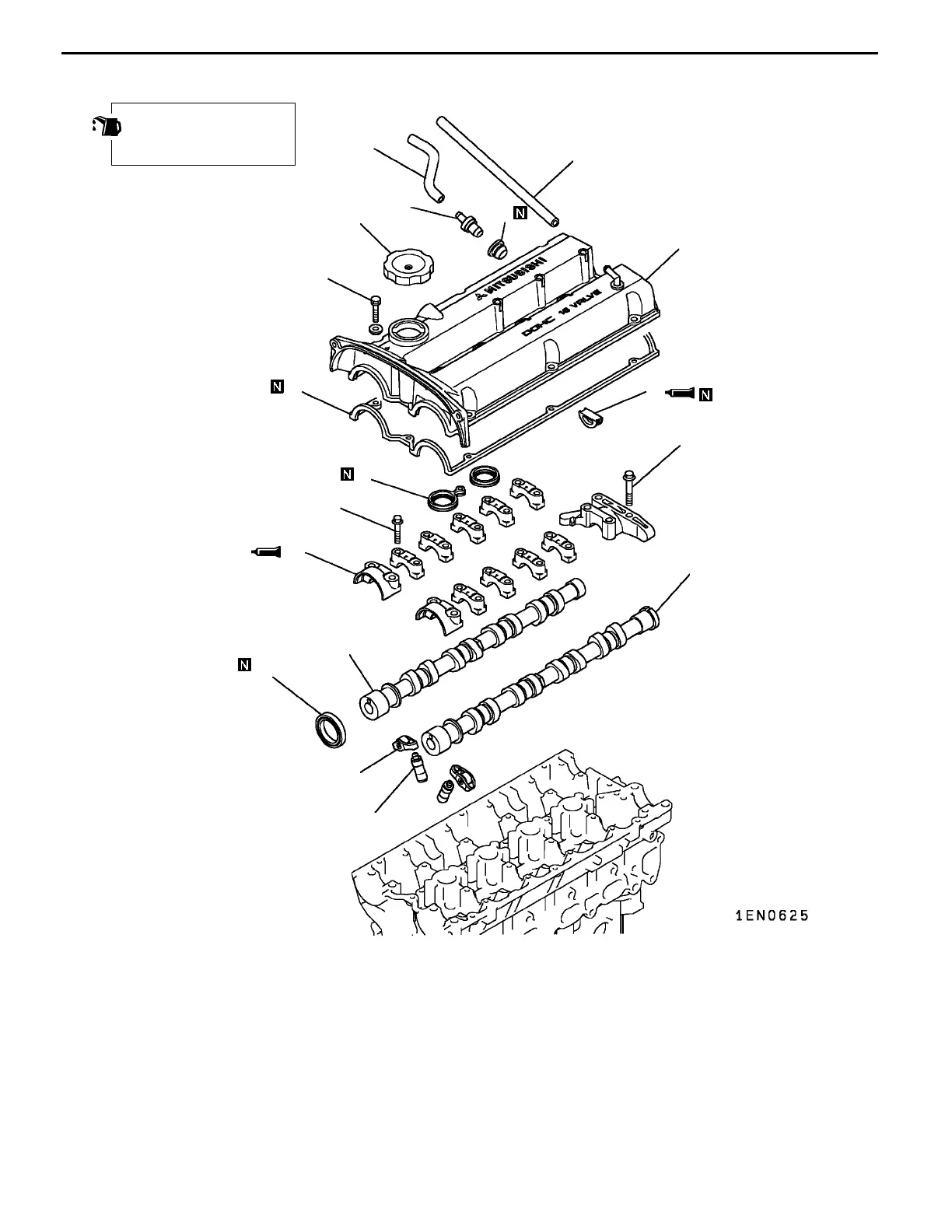

Removal steps
1. Breather hose
2. P.C.V. hose
3. P.C.V. valve
4. P.C.V. valve gasket
5. Oil filler cap
"
H
A
6. Rocker cover
7. Rocker cover gasket A
8. Rocker cover gasket B
"
G
A
9. Semi-circular packing
"
F
A
10. Camshaft oil seal
"
B
A
11. Bearing cap
"
A
A
12. Camshaft
"
A
A
13. Camshaft
14. Roller rocker arm
A
B
""
J
A
15. Lash adjuster
