4G1 ENGINE (E-W) -
Rocker Arms and Camshafts
11A-8-10
PWEE9520
E
Nov. 1995Mitsubishi Motors Corporation
(6) Rotate clockwise the crankshaft one complete turn (360
_
degree).

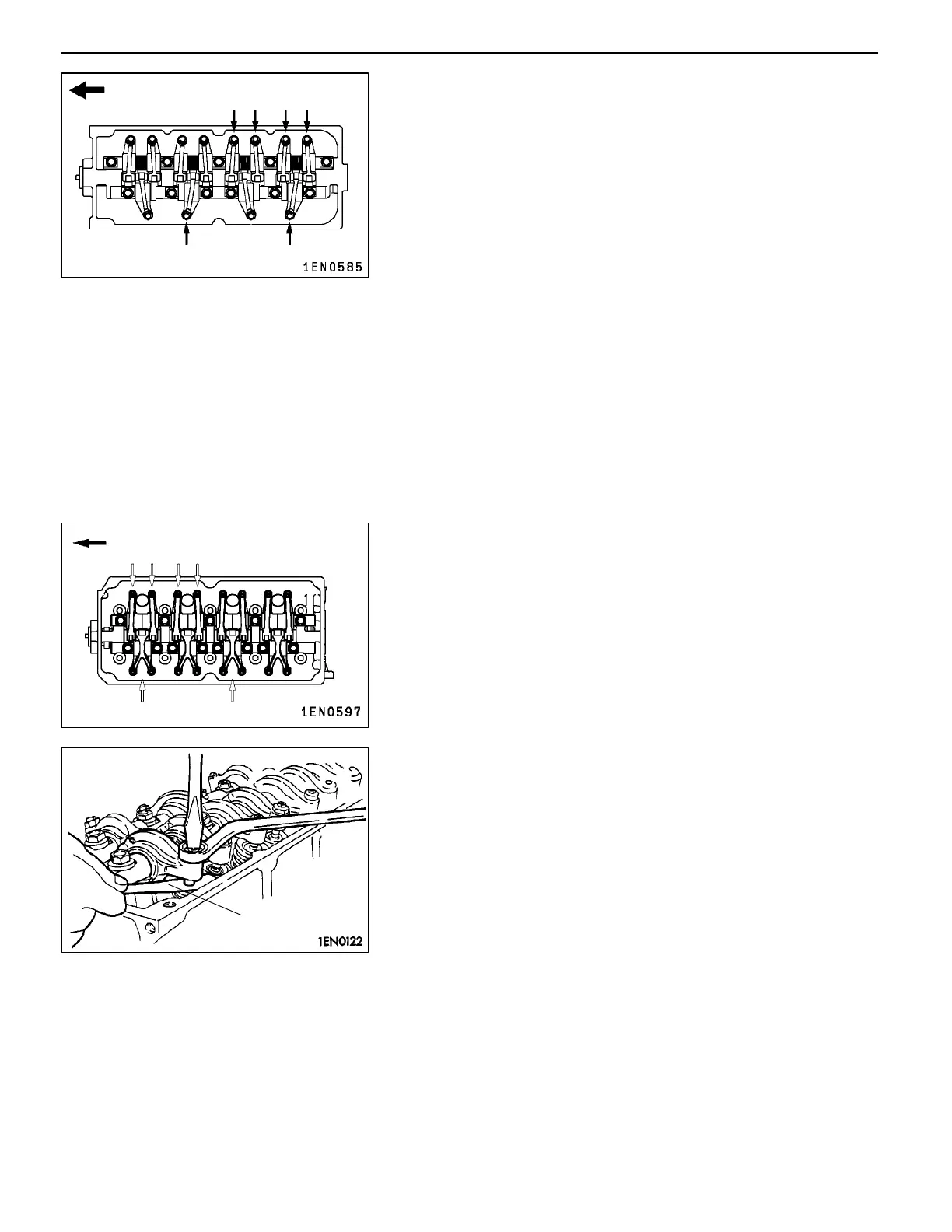

(7) Adjust the valve clearance at points as shown in the
illustration.
(8) Repeat steps (3) to (5) to adjust the valve clearance
of remaining valves.
(9) With the engine mounted on vehicle, warm up the engine.
Then, check for valve clearance on hot engine and adjust
if necessary.
Standard value: on hot engine
Intake 0.20 mm
Exhaust 0.25 mm
<SOHC 16-VALVE>
(1) Position the No. 1 cylinder at top dead center on the
compression stroke.
(2) Adjust the valve clearance at the points shown in the
illustration.
(3) Loosen the adjusting screw locknut.
(4) Using a feeler gauge, adjust the valve clearance by turning
the adjusting screw.
Standard value: on cold engine
Intake 0.09 mm
Exhaust 0.17 mm
(5) While holding the adjusting screw with a screwdriver,
tighten the lock nut.
PWEE9520-D
E
Aug. 2000Mitsubishi Motors Corporation Revised
Timing belt side
Timing belt side
Thickness gauge
To Next Page
