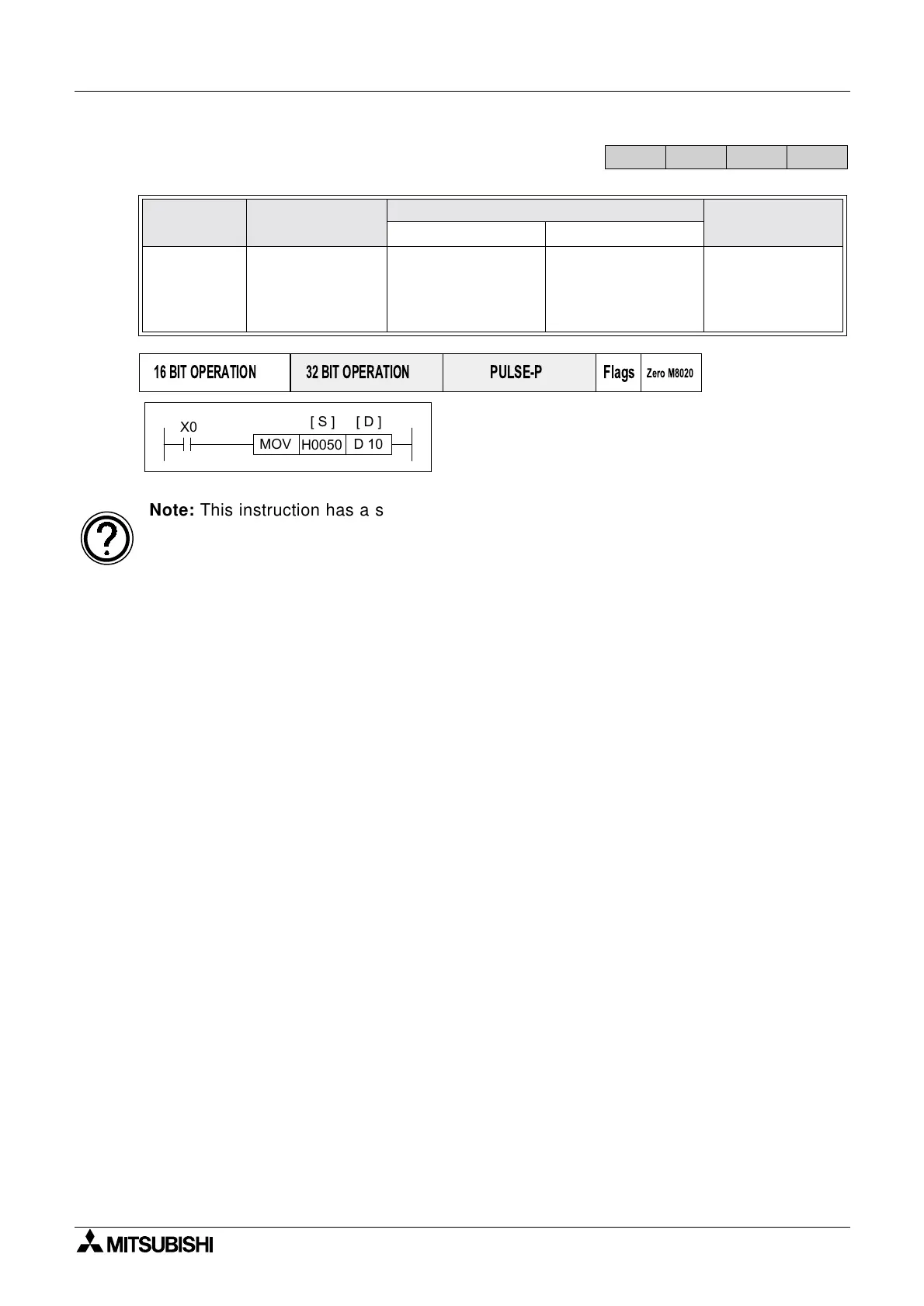

5.2.3 MOV (FNC 12)
Operation:
The contents of the source device (S) is copied to
the destination (D) device when the control input is
active. If the MOV instruction is not driven, no
operation takes place.
Mnemonic Function
Operands
Program steps
SD
MOV
FNC 12
(Move)
Moves data from
one storage area
to a new storage
area
K, H,
KnX, KnY, KnM, KnS,
T, C, D, V, Z
KnY, KnM, KnS,
T, C, D, V, Z
MOV, MOVP:
5steps
DMOV,
DMOVP:
9steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
Flags
Zero M8020
X0
MOV
H0050
D 10
[ S ] [ D ]
Note: This instruction has a special programming technique which allows it to mimic the
operation of newer applied instructions when used with older programming tools. See page
1-5 for more details.

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
