Devices in Detail 4
4-1
4. Devices in Detail
4.1 Inputs
Device Mnemonic: X
Purpose: Representation of physical inputs to the programmable controller (PLC)
Alias: I/P
Inp
(X) Input
Input contact
Available forms: NO () and NC () contacts only
(see example device usage for references)
Devices numbered in: Octal, i.e. X0 to X7, X10 to X17
Further uses: None

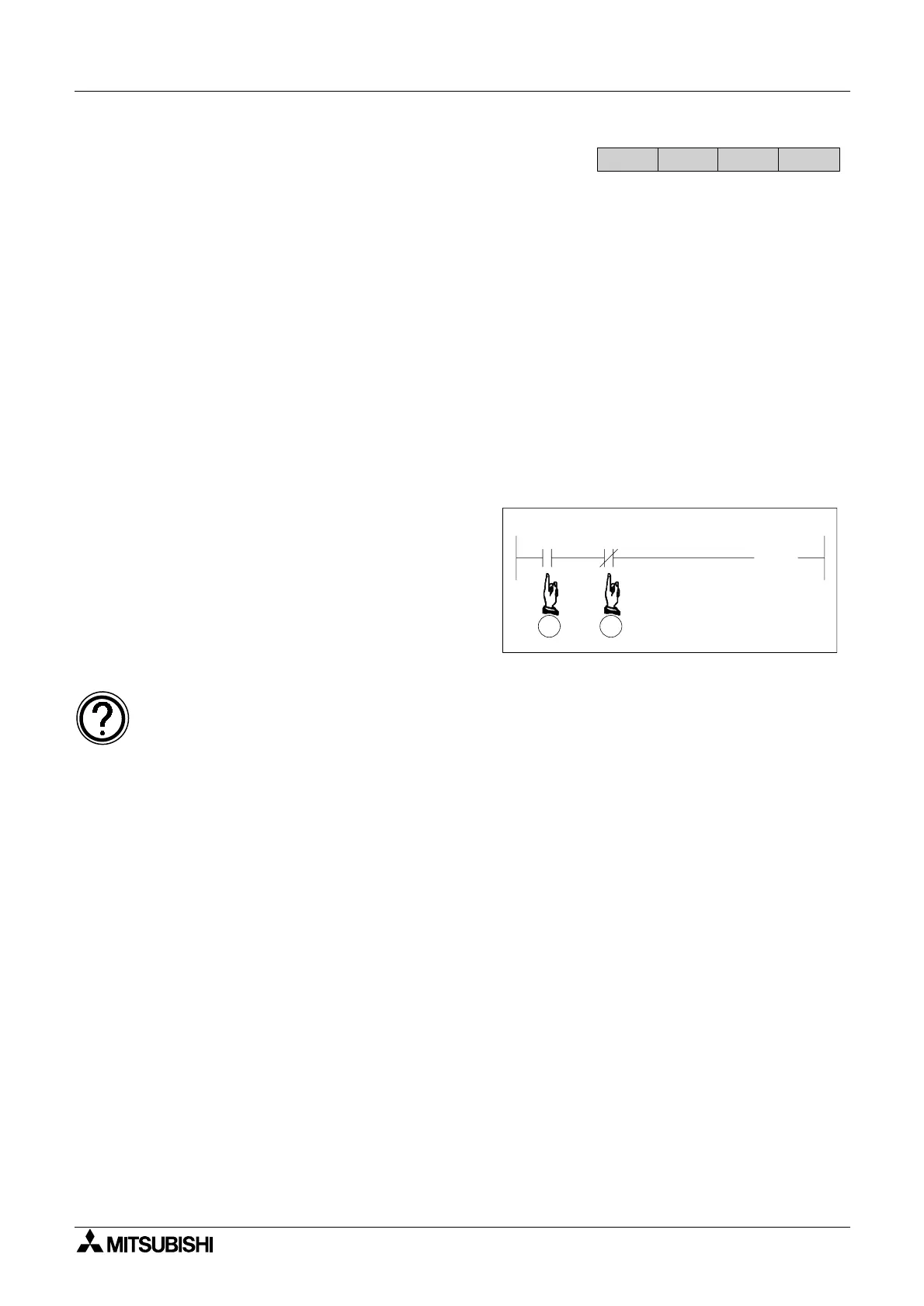

Example device usage:
FX 1S
FX1N FX2N
FX2NC
X0
X1
Y10
21
Available devices:
• Please see the information point on page 4-2, Outputs. Alternatively refer to the
relevant tables for the selected PLC in chapter 8.
Configuration details:
• Please see chapter 9
FX Series Programmable Controllers

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
