Mitsubishi FX1S Series User Manual

FX Series Programmable Controlers Applied Instructions 5
5-35

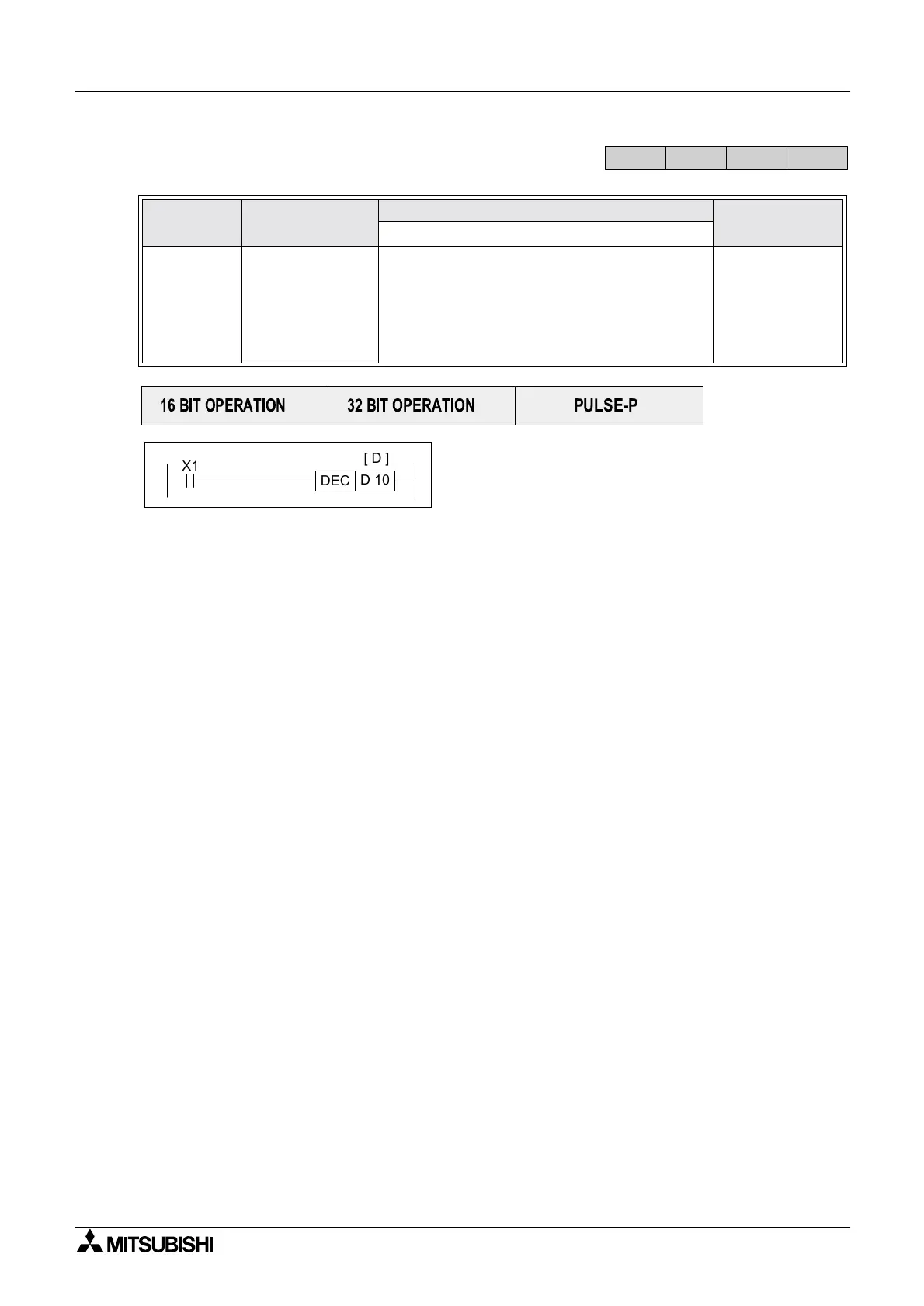

5.3.6 DEC (FNC 24)
Operation:
On every execution of the instruction the device
specified as the destination D, has its current value
decremented (decreased) by a value of 1.
In 16 bit operation, when -32,768 is reached the
next increment will write a value of +32,767 to the destination device.
In 32 bit operation, when -2,147,483,648 is reached the next increment will write a value of
+2,147,483,647 to the destination device.
In both cases there is no additional flag to identify this change in the counted value.
Mnemonic Function
Operands
Program steps
D
DEC
FNC 25
(Decrement)

The designated
device is
decremented by 1
on every
execution of the
instruction
KnY, KnM, KnS,
T, C, D, V, Z
Standard V,Z rules apply for 32 bit operation
DEC,DECP:
3steps
DDEC,
DDECP:
5steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
X1
[ D ]
D 10
DEC

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
