Mitsubishi FX1S Series User Manual

FX Series Programmable Controlers Applied Instructions 5
5-149

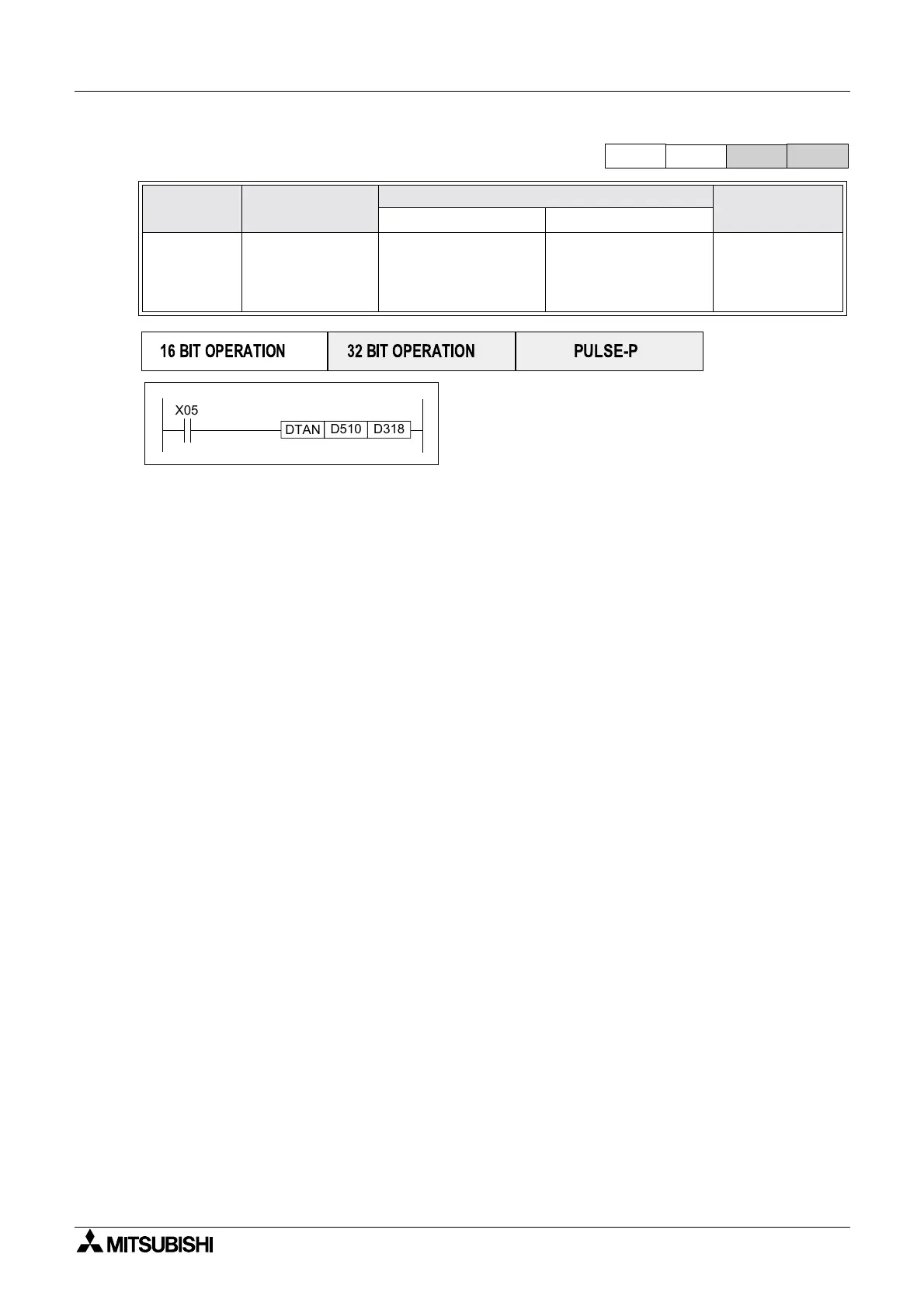

5.11.3 TAN (FNC 132)
Contents:
This instruction performs the mathematical TAN
operation on the floating point value in S. The
result is stored in D.
Points to note:
All the points for the SIN instruction apply, except that COS is calculated.
See page 5-127.
Mnemonic Function
Operands
Program steps
SD
TAN
FNC132
(Tangent)
Calculates the
tangentofa
floating point
value
D - must be in floating
point number format
(32 bits).
D - a floating point
value
(32 bits).
DTAN,
DTANP:
9steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
DTAN
X05
D510 D318
