Mitsubishi FX1S Series User Manual

FX Series Programmable Controlers Applied Instructions 5
5-62

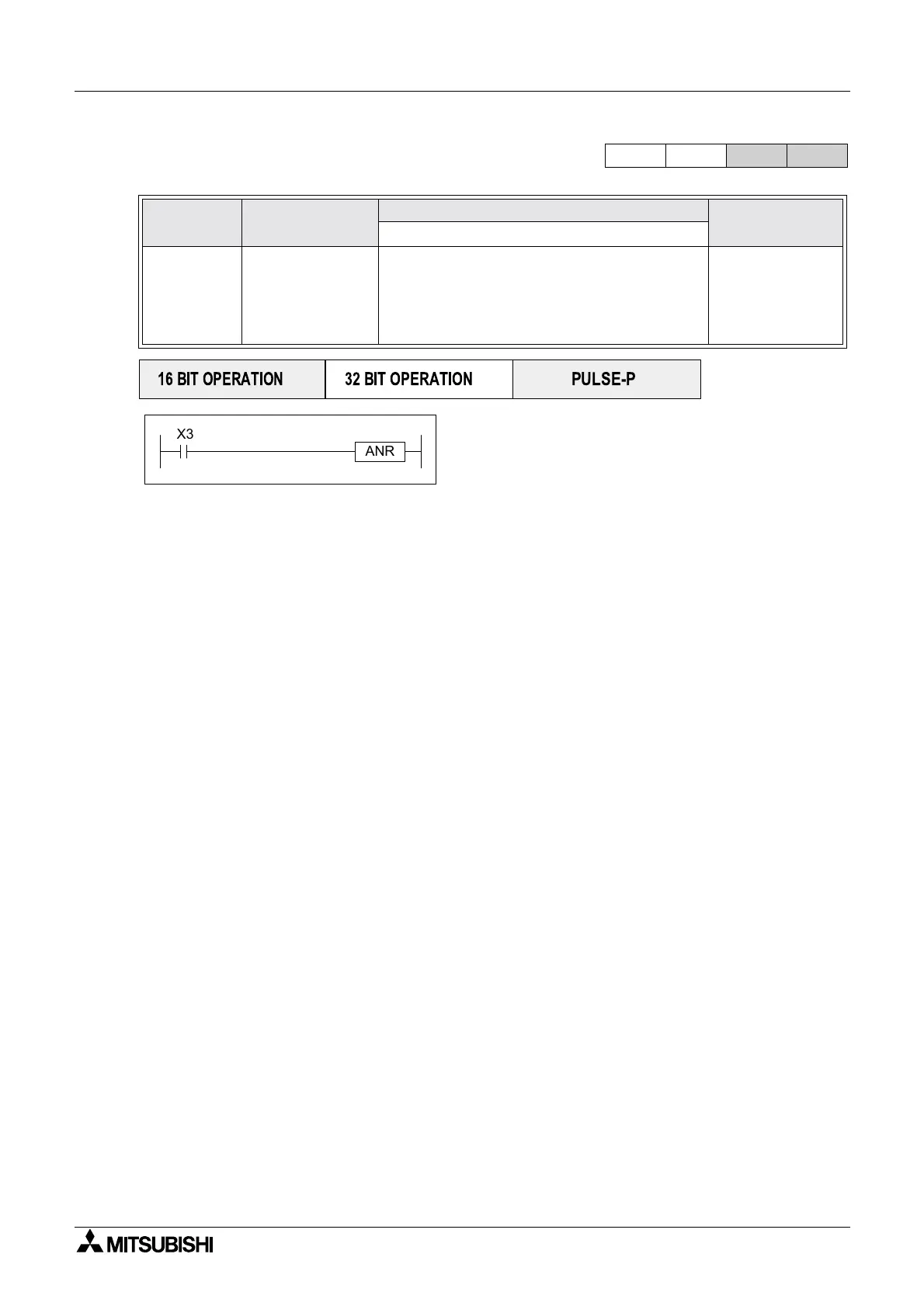

5.5.8 ANR (FNC 47)
Operation:
Annunciators which have been activated are
sequentially reset one-by-one, each time the ANR
instruction is operated.
If the ANR instruction is driven continuously it will carry out its resetting operation on every
program scan unless it is modified by the pulse, P prefix or by a user defined program
interlock.
Mnemonic Function
Operands Program steps
D
ANR
FNC 47
(
Annunciator
reset)

The lowest active
annunciator is
reset on every
operation of this
instruction
N/A
ANR,ANRP:
1step
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
X3
ANR

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
