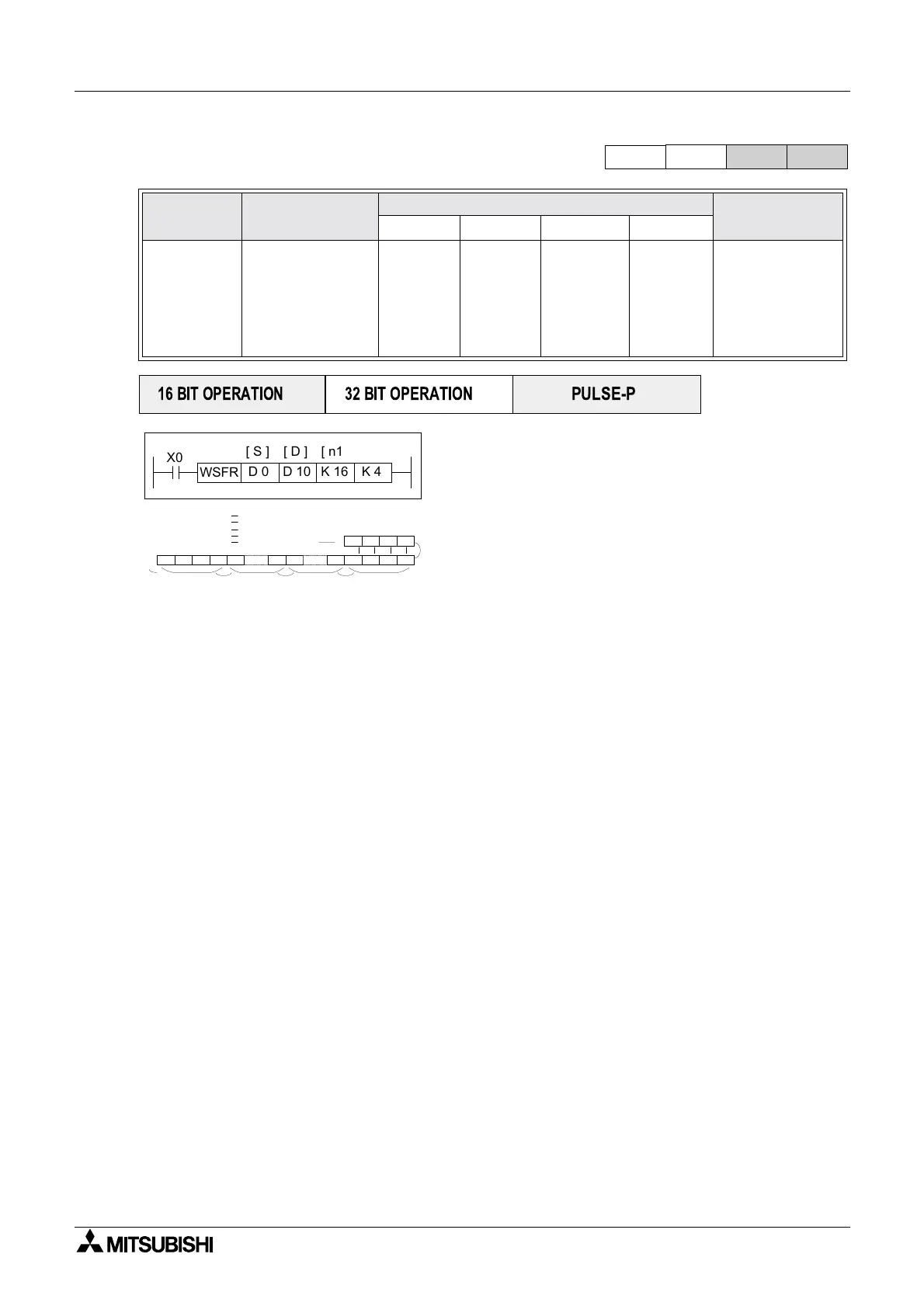

5.4.8 WSFL (FNC 37)
Operation:
The instruction copies n
2 source devices to a word
stack of length n
1. For each addition of n2 words, the
existing data within the word stack is shifted n
2words
to the left. Any word data moving to a position
exceeding the n
1 limit is diverted to an overflow area.
The word shifting operation will occur every time the
instruction is processed unless it is modified with
either the pulse suffix or a controlled interlock.
Note: when using bit devices as source (S) and
destination (D) the Kn value must be equal.
Mnemonic Function
Operands
Program steps
SDn
1 n2
WSFL
FNC 37
(Word
shift left)

The value of the
source devices are
copied to a
controlled word
stack moving the
existing data to
the left
KnX, KnY,
KnM,KnS,
T, C, D
KnY,KnM,
KnS,
T, C, D
K,H,

Note:
FX users:
n
2 ≤ n1≤ 512
WSFL,
WSFLP:
9steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
X0
WSFR
D 10 K 16 K 4
[ S ] [ D ]
D 0
[ n1 ] [ n2 ]
(5)
(1)
(2) (3) (4)
D
D
D
D
D
(1)
(2)
(3)
(4)
(5)
25
21
17
13
3
-
-
-
-
-
D
D
D
D
D
D
D
D
D
25
21
17
13
-
-
-
-
D
D
D
D
22
18
14
10
22
18
14
10
0
D 3
D 2
D 1 D 0
D13
D12
D11 D10
D14D17D18D21D25
D24
D23 D22
