Mitsubishi FX1S Series User Manual

FX Series Programmable Controlers Applied Instructions 5
5-141

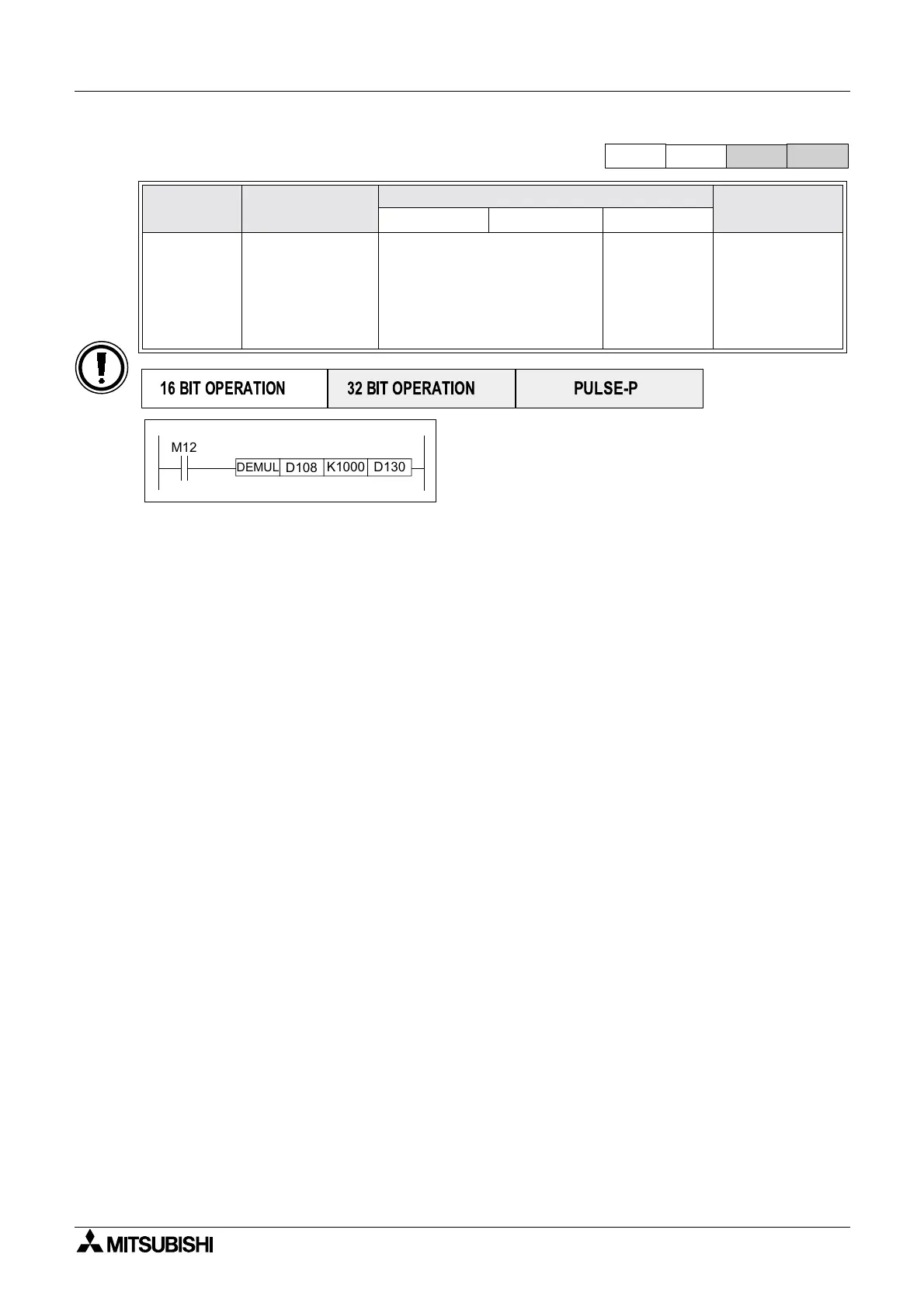

5.10.7 EMUL (FNC 122)
Operation:
The floating point value of S
1is multiplied with the
floating point value of S
2. The result of the
multiplication is stored at D as a floating point
value.
Points to note:
Point a, b, c and d of the EADD instruction apply, except that a multiplication is performed.
See page 5-122.
Mnemonic Function
Operands
Program steps
S
1 S2 D
EMUL
FNC 122
(Floating
Point Mul-
tiplication)
Multiplies two
floating point
numbers together
K, H - integer value automati-
cally
converted to floating point
D - must be in floating point
format (32 bits).
D-afloating
point value
(32 bits).
DEMUL,
DEMULP:
13 steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
DEMUL
M12
D108
K1000 D130

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
