FX Series Programmable Controlers Applied Instructions 5
5-37
5.3.8 WOR (FNC 27)
Operation:
The bit patterns of the two source devices are
analyzed (the contents of S
2is compared against
the contents of S
1). The result of the logical OR
analysis is stored in the destination device (D).
The following rules are used to determine the result of a logical OR operation. This takes place
for every bit contained within the source devices:
General rule: (S
1)BitnWOR(S2)Bitn=(D)Bitn
1WOR1=1 0WOR1=1
1WOR0=1 0WOR0=0
Mnemonic Function
Operands
Program steps
S1 S2 D
WOR
FNC 27
(
Logical
word OR)
AlogicalORis
performed on the
source devices -
result stored at
destination
K,H,
KnX,KnY, KnM, KnS,
T, C, D, V, Z
KnY, KnM, KnS,
T, C, D, V, Z
WOR,WORP:
7steps
DOR,
DORP:
13 steps
FX 1S
FX 1N FX 2N
FX 2NC

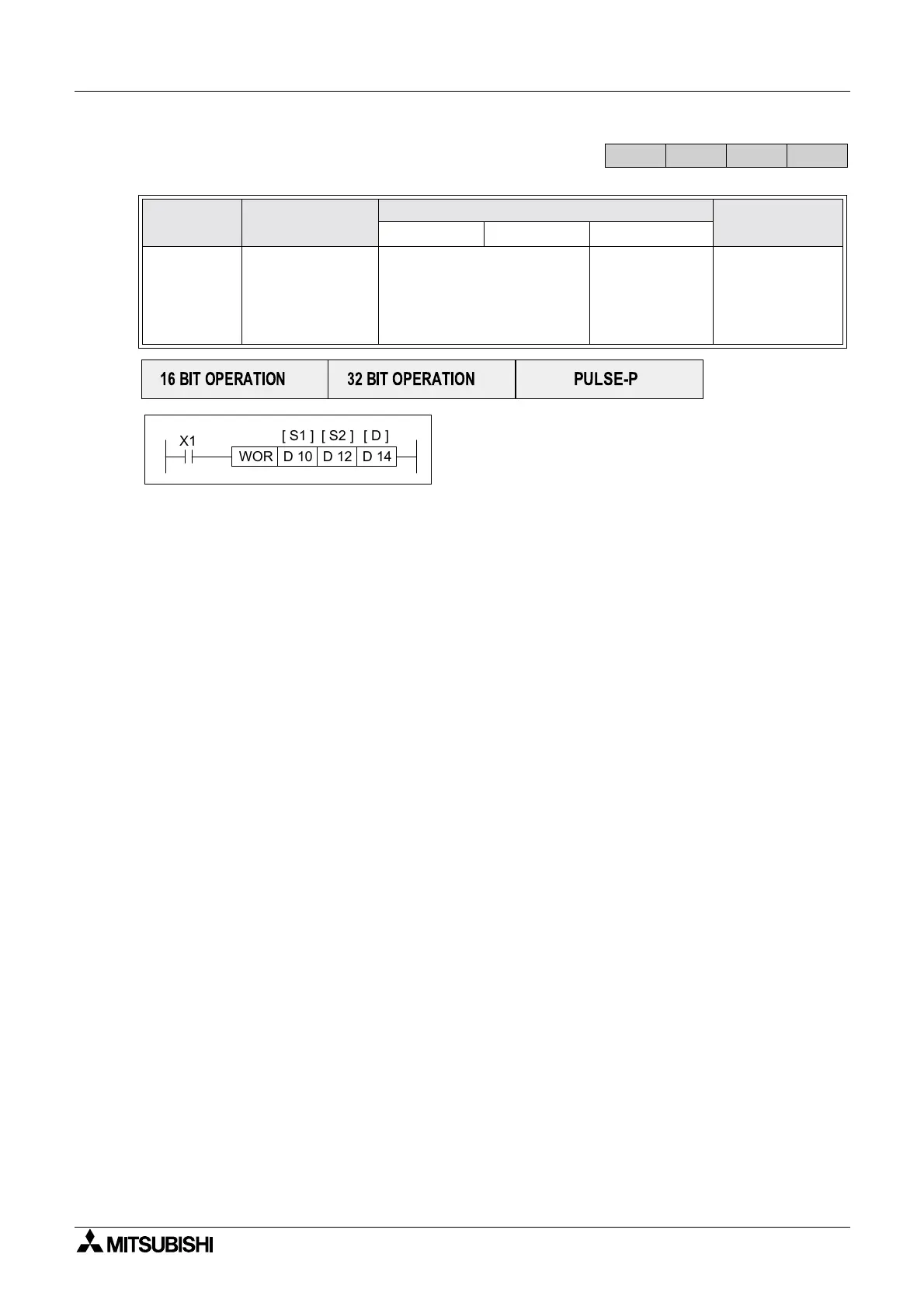

PULSE-P 16 BIT OPERATION 32 BIT OPERATION
X1
WOR D 10 D 12 D 14
[ S1 ] [ D ][ S2 ]

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
