Mitsubishi FX1S Series User Manual

FX Series Programmable Controlers Applied Instructions 5
5-92

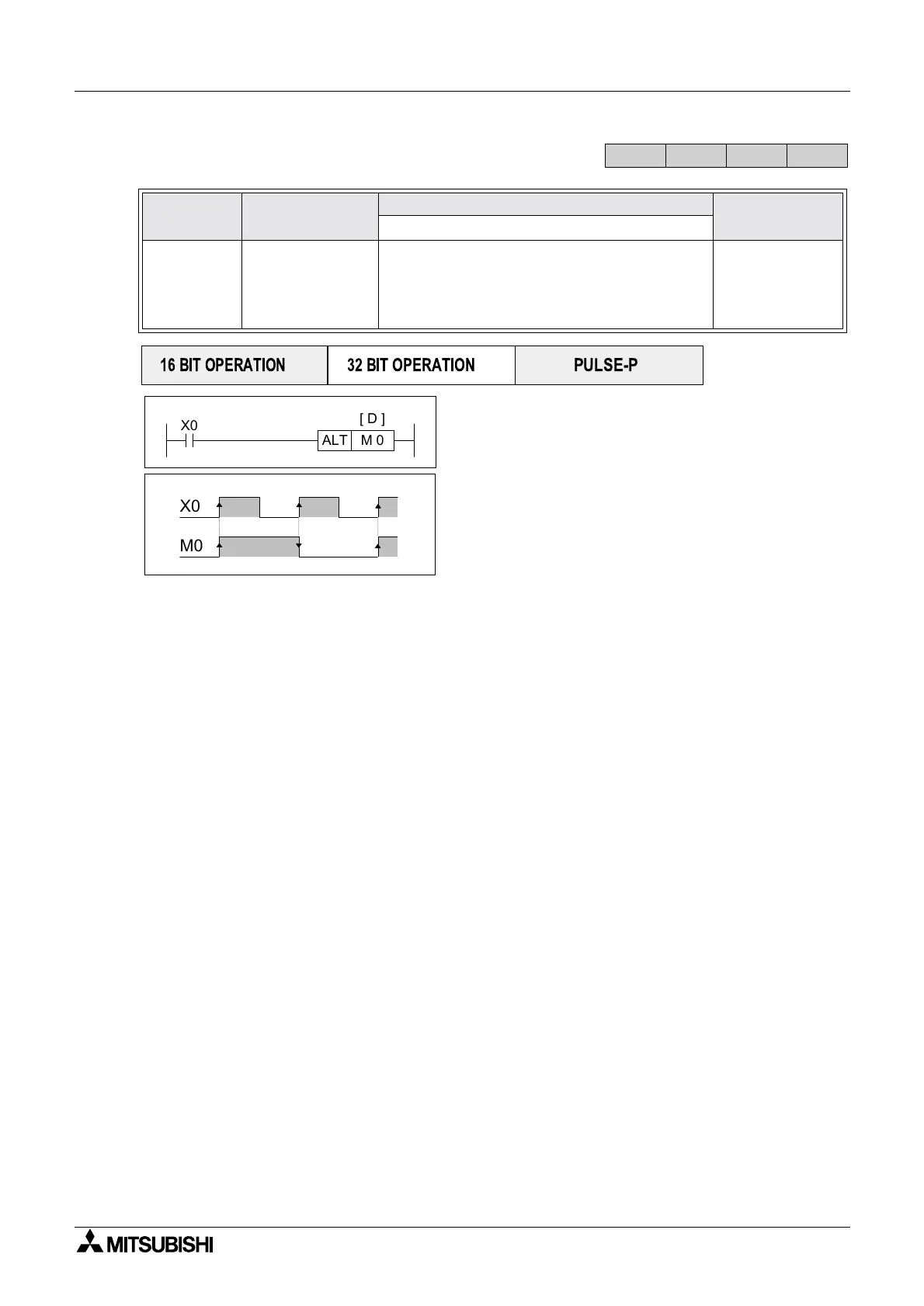

5.7.7 ALT (FNC 66)
Operation:
The status of the destination device (D) is
alternated on every operation of the ALT
instruction.
This means the status of each bit device will flip-
flop between ON and OFF. This will occur on every
program scan unless a pulse modifier or a program
interlock is used.
The ALT instruction is ideal for switching between
two modes of operation e.g. start and stop, on and
off etc.
Mnemonic Function
Operands
Program steps
D
ALT
FNC 66
(Alternate
state)

The status of the
assigned device
is inverted on
every operation of
the instruction
Y, M, S ALT, ALTP:
3steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
ALT M 0
X0
[ D ]
M0
X0

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
