Mitsubishi FX1S Series User Manual

FX Series Programmable Controlers Applied Instructions 5
5-157
5.13.2 Pulse train settings

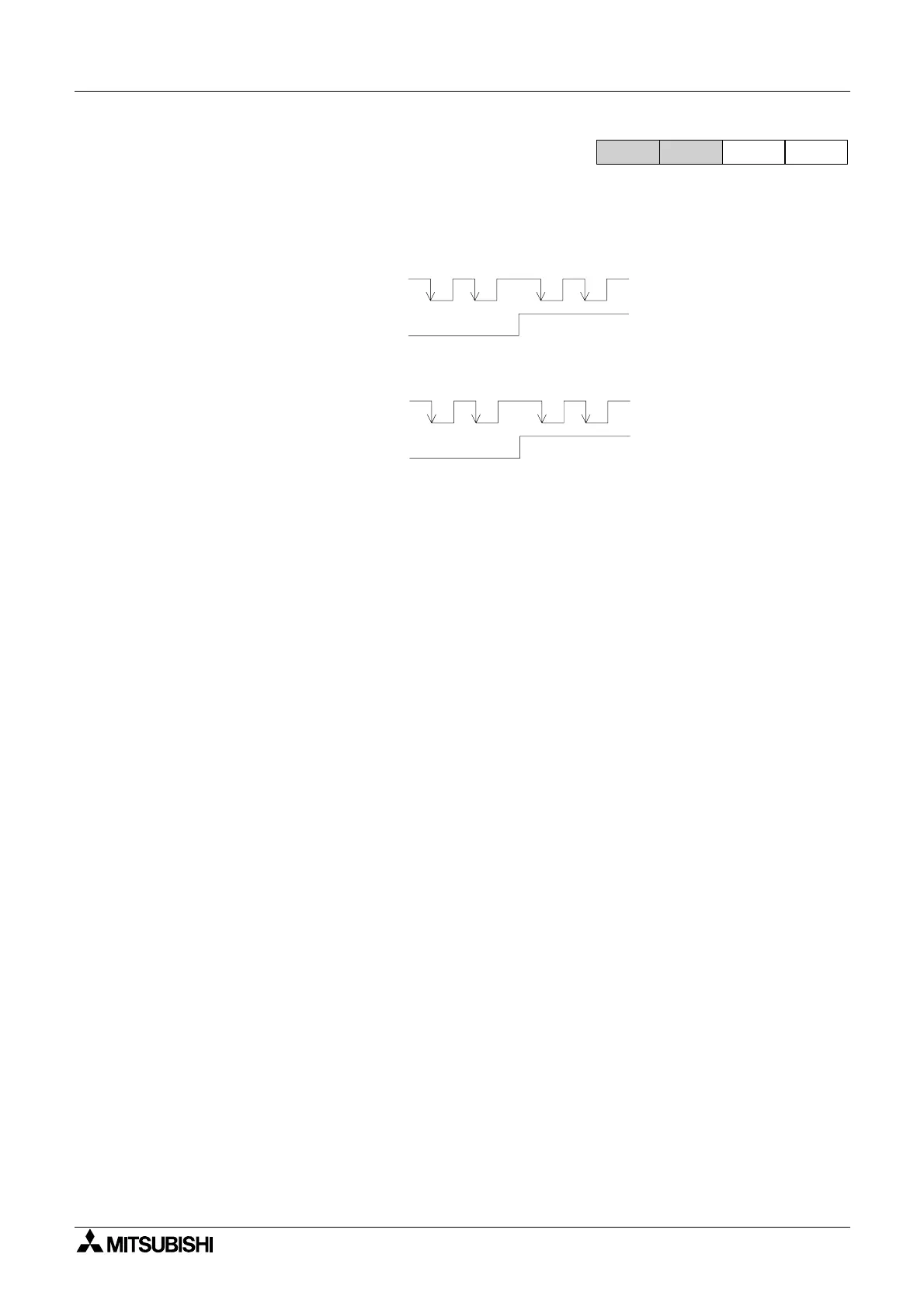

When a positioning operation is executed from the PLC, the pulse output signal has the ‘Pulse
train + Sign’ format during control, as shown in the figure below.
Make sure to set the pulse train input mode on the servo amplifier or stepper motor as follows;
Pulse train input mode: Pulse train + Sign
Pulse train logic: negative logic
FX1S
FX 1N FX 2N
FX 2NC
Pulse output from Y000
Arbitrary output relay
Y
¨¨¨
(Specifies the direction.)
ON OFF
Pulse output from Y001
Arbitrary output relay
Y
¨¨¨
(Specifies the direction.)
ON OFF

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
