FX Series Programmable Controlers Applied Instructions 5
5-24

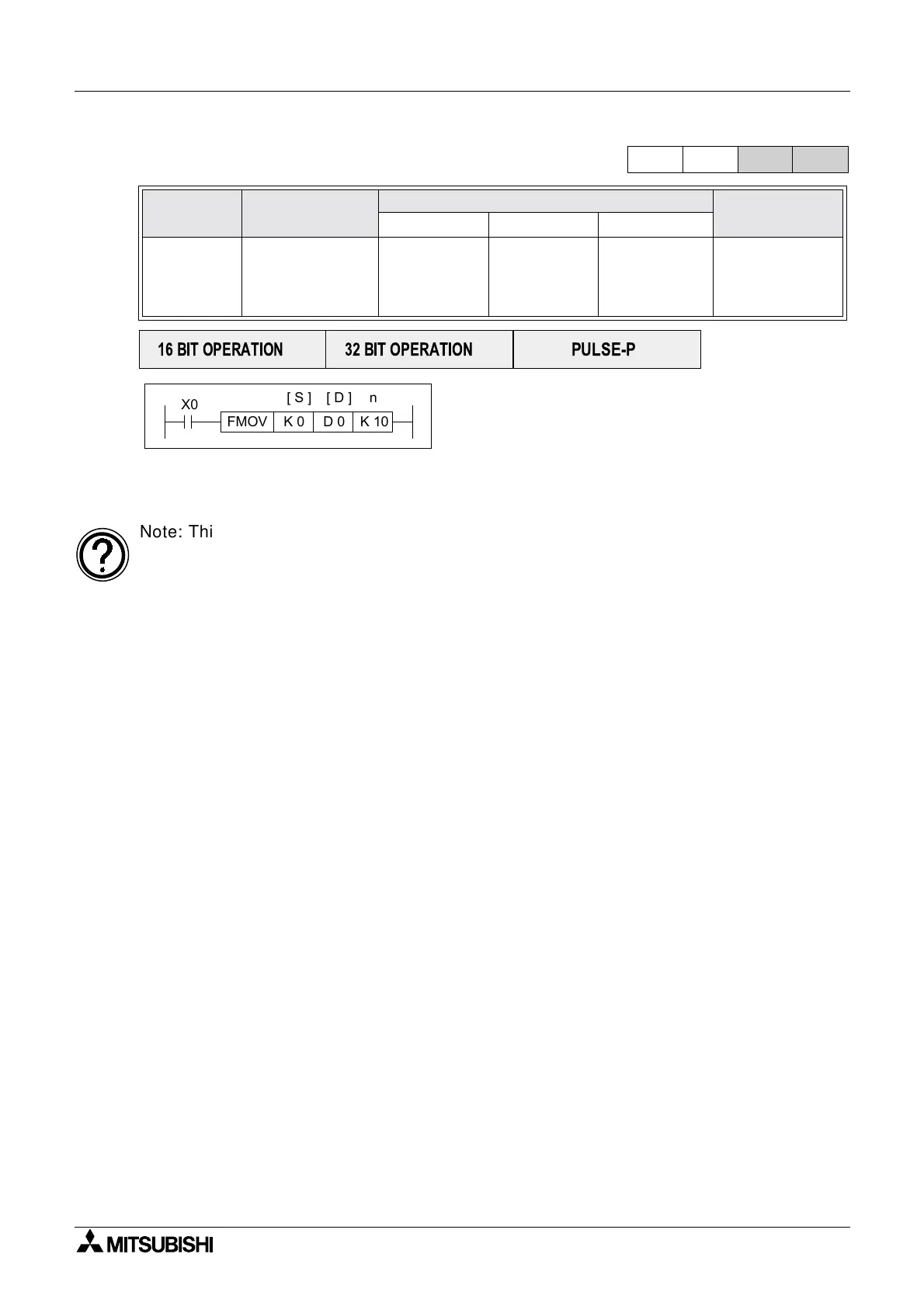

5.2.7 FMOV (FNC 16)
Operation:
The data stored in the source device (S) is copied to
every device within the destination range. The range
is specified by a device head address (D) and a
quantity of consecutive elements (n). If the specified number of destination devices (n)
exceeds the available space at the destination location, then only the available destination
devices will be written to.
Mnemonic Function
Operands
Program steps
SD n
FMOV
FNC 16
(Fill move)
Copies a single
data device to a
range of
destination
devices
KnX, KnY,
KnM, KnS,
T, C, D, V, Z
KnY, KnM,
KnS,
T, C, D, V, Z
K, H
)
Note:n≤ 512
FMOV,FMOVP:7
steps
DFMOV,DFMOVP
:
13 steps
FX 1S
FX1N FX2N
FX2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
X0
FMOV K 0 D 0
[ S ] [ D ]
K 10
n
Note: This instruction has a special programming technique which allows it to mimic the
operation of newer applied instructions when used with older programming tools. See page 1-
5 for more details.
