Mitsubishi FX1S Series User Manual

FX Series Programmable Controlers Applied Instructions 5
5-47

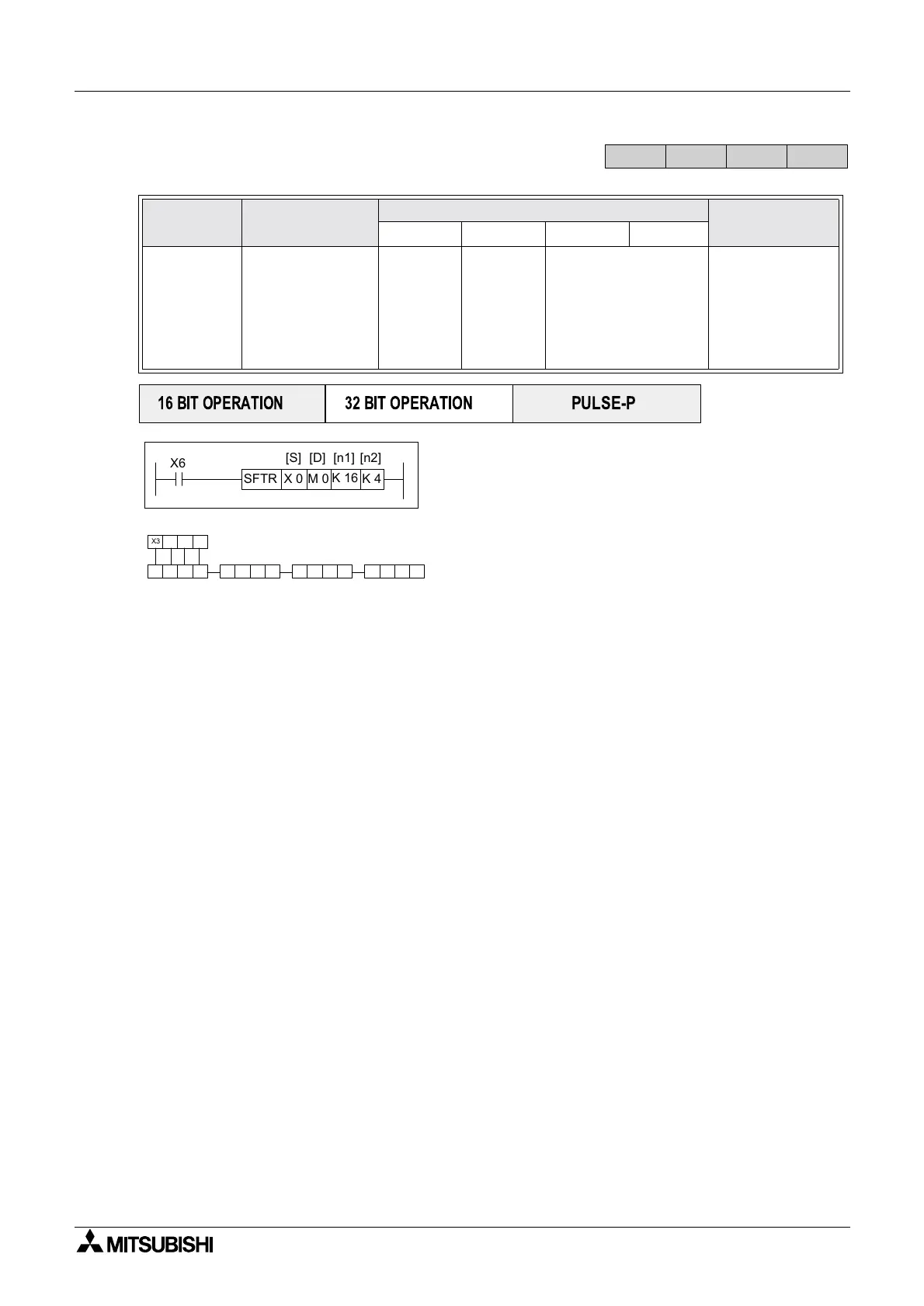

5.4.5 SFTR (FNC 34)
Operation:
The instruction copies n
2 source devices to a bit
stack of length n
1. For every new addition of n2 bits,
the existing data within the bit stack is shifted n
2 bits
to the right. Any bit data moving to a position
exceeding the n
1 limit is diverted to an overflow area.
The bit shifting operation will occur every time the
instruction is processed unless it is modified with
either the pulse suffix or a controlled interlock.
Mnemonic Function
Operands
Program steps
SDn
1 n2
SFTR
FNC 34
(
Bit shift right)

The status of the
source devices are
copied to a
controlled bit stack
moving the existing
data to the right
X,Y,M,S Y,M,S K,H,
)
Note:
FX users:
n
2 ≤ n1 ≤ 1024
FX0,FX0N users:
n2 ≤ n1 ≤ 512
SFTR,SFTRP:
9steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
X6
SFTR
X 0
M 0
K 16
K 4
[S] [D] [n1] [n2]
X3 X2 X1 X0
M15 M14 M13 M12 M11 M10 M9 M8 M7 M6 M5 M4 M3 M2 M1 M0

Mitsubishi FX1S Series Specifications

General

Model	FX1S Series
I/O Points	10 to 30 points
Program Memory	2000 steps
Power Supply	AC
Communication	RS-422
Expansion	No expansion
Programming Language	Ladder Logic
Input Voltage	100-240V AC
Built-in High-Speed Counter	Up to 60 kHz (single-phase)
Weight	Approx. 0.3 kg
Dimensions	90 x 60 x 75 mm
